O6H318

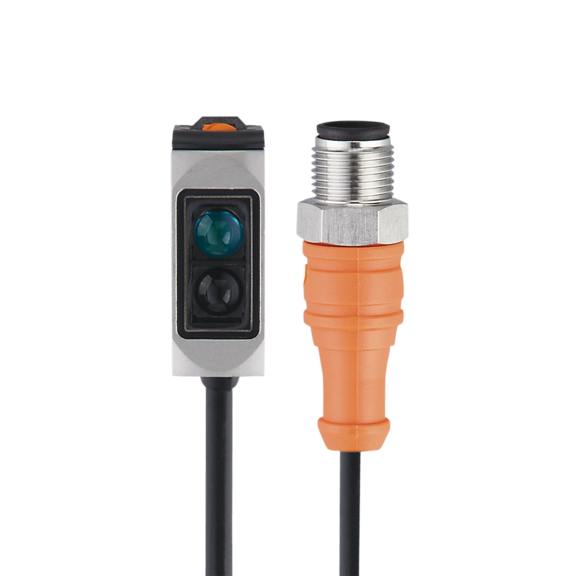

IFM O6H318 — Diffuse reflection sensors with background suppression

IFM O6H318 Diffuse reflection sensors with background suppression. IFM lists these product characteristics: Robust stainless steel housing for use in the food industry, Resistant to high-pressure cleaning with aggressive cleaning agents, High protection rating for the requirements of harsh industrial environments, Precise background suppression sensing on highly reflective background, Intuitive setting of range and output function.

Details

Related IFM parts

Request a quote for O6H318

Specifications

EMC
EN 60947-5-2
Cable
0.3 m, PVC
Display
Switching status: 1 x LED, yellow; Power: 1 x LED, green
Housing
rectangular
Material
housing: stainless steel (1.4404 / 316L); sealing: EPDM; plastics: PPSU
Connector
1 x M12; coding: A; Contacts: 4
Protection
IP 65; IP 67; IP 68; IP 69K
Range [mm]
2...200; (white paper 200 x 200 mm)
Weight [g]
51.3
Application
food and beverage industry
Lens material
front lens:PMMA
Pack quantity
1 pcs.
Type of light
red light
Lens alignment
Side sensing
Dimensions [mm]
34.8 x 13 x 21
Output function
light-on/dark-on mode; (selectable)
Special feature
Background suppression
IFM product code
O6H318
Protection class
III
Range adjustable
yes
Wave length [nm]
633
Electrical design
PNP
Function principle
Diffuse reflection sensor
Operating voltage [V]
10...30 DC
Tightening torque [Nm]
1; (screws)
Current consumption [mA]
22; ((24 V))
Short-circuit protection
yes
Ambient temperature [°C]
-25...80
Reverse polarity protection
yes
Switching frequency DC [Hz]
500
Max. light spot diameter [mm]
8
Light spot dimensions refer to
at maximum range
Background suppression available
yes
Type of short-circuit protection
yes (non-latching)
Max. voltage drop switching output DC [V]
2.5
Range on black object (6 % remission) [mm]
8...200
Range on grey object (18 % remission) [mm]
4...200
Range on white object (90 % remission) [mm]
2...200
Permanent current rating of switching output DC [mA]
100
