LC1K1601M7

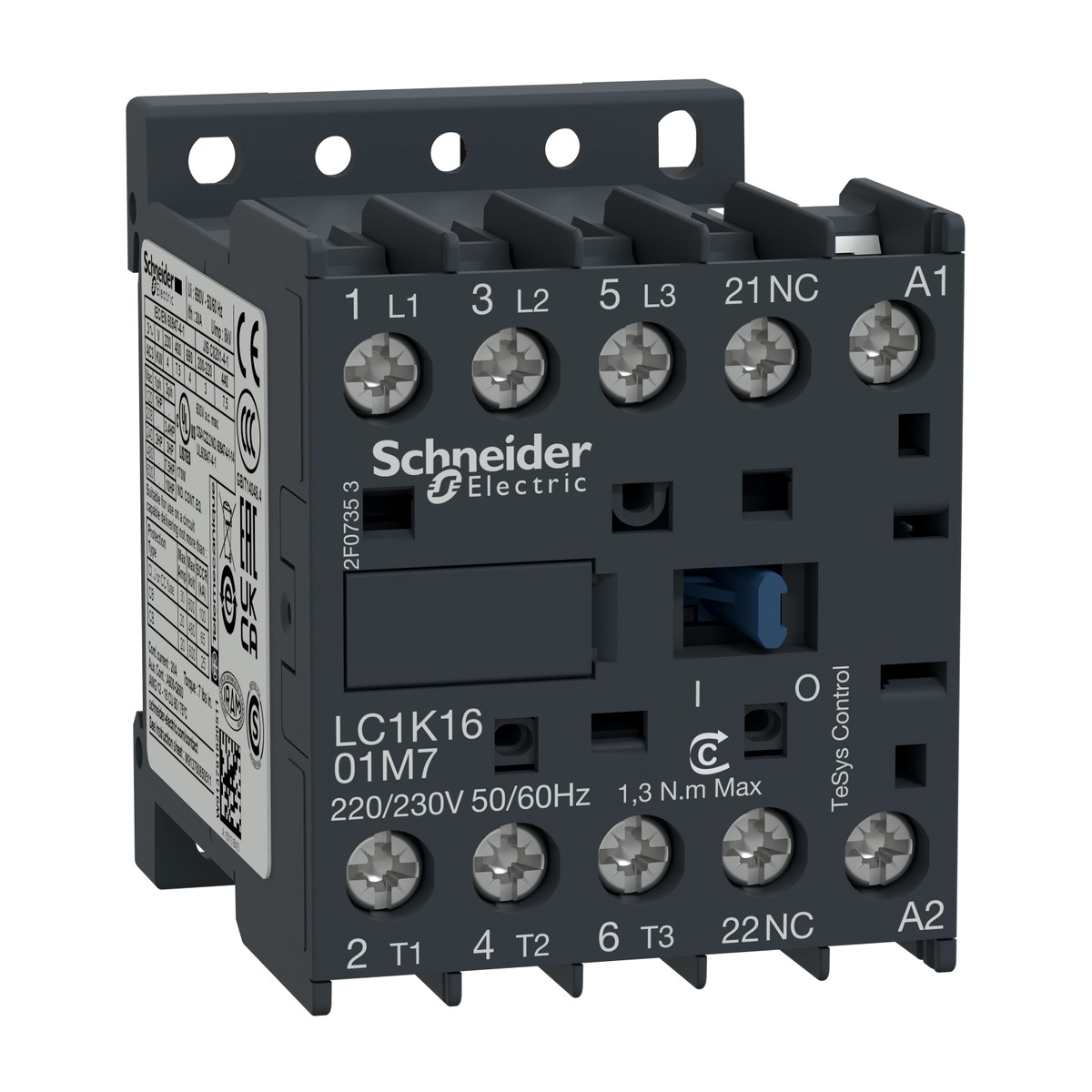

Schneider Electric LC1K1601M7 TeSys K Contactor , 3P, 16A AC-3/AC-3e, 1NC Aux, 220-230V AC Coil. The Schneider Electric TeSys K Contactor LC1K1601M7 is a reliable and compact solution for motor control and power circuit applications in industrial settings. Part of the renowned TeSys range, this 3-pole contactor is rated for 16 A AC-3/AC-3e at voltages up to 440 V AC, making it suitable for a wide array of small motor control tasks. Its control circuit operates efficiently on 220-230 V AC at 50/60 Hz, a standard voltage in Egypt and the Gulf region, and it includes one normally closed (1 NC) auxiliary contact for enhanced system integration. Designed for durability and performance, the LC1K1601M7 offers a conventional free air thermal current of 20 A and an IP2X degree of protection. With a mechanical durability of 10 Mcycles and electrical durability of 1.3 Mcycles at nominal load, it ensures long-term operational stability. This miniature contactor is ideal for applications in cement plants, oil and gas facilities, water treatment, food and beverage processing, and general building services. For robust and efficient control panel solutions, consider the Schneider Electric LC1K1601M7.
Details
- Brand: Schneider Electric
- Part number: LC1K1601M7
- Series: TeSys
- Category: Contactor
Related Schneider Electric parts
- Schneider Electric LC1K1601P7 — TeSys K Miniature Contactor 3P 16A 230V AC Coil 1NC
- TeSys K LC1K1610B7 contactor 16A AC-3 3P with 24V AC coil
- Schneider Electric LC1K1610F7 — TeSys K LC1K Contactor, 3P, 16A, 1NO aux, 110V AC Coil
- TeSys K LC1K1610M7 Contactor 16A AC-3 3P with 220-230V AC Coil
- TeSys K Contactor LC1K1610P7 3P 16A AC-3/AC-3e with 230V AC coil
- Schneider Electric LC1K1610Q7 — TeSys K contactor 3P 16A AC-3/AC-3e with 380-400V AC coil, 1NO aux.
- Schneider Electric LC1K1610U7 — TeSys K contactor 16A AC-3 3P with 1 NO aux and 230-240V AC coil
- LAD31 Mounting Plate for TeSys Deca GV2ME
- Schneider Electric LADN02 — TeSys D auxiliary contact block 2 NC screw-clamps
- TeSys K LC1K0601P7 Contactor 6A AC-3 3P 230V AC Coil
- TeSys K LC1K0601U7 contactor 3P AC-3/AC-3e 6A with 1NC aux. and 230-240V AC coil
- Schneider Electric LRD21 — TeSys LRD thermal overload relays
Request a quote for LC1K1601M7
Specifications
- Standards
- EN/IEC 60947-4-1
- Net weight
- 0.18 Kg
- Mounting support
- Plate, Rail
- Poles description
- 3P
- Utilisation category
- AC-3, AC-3e
- Electrical durability
- 1.3 Mcycles 16 A AC-3 at Ue <= 440 V
- Mechanical durability
- 10 Mcycles
- Dimensions (H x W x D)
- 58 Mm x 45 Mm x 57 Mm
- Product certifications
- CB Scheme, CCC, UL, CSA, EAC, CE
- IP degree of protection
- IP2X conforming to VDE 0106
- Manufacturer part number
- LC1K1601M7
- Motor power kW (220-230V AC)
- 4 KW
- [Uc] control circuit voltage
- 220...230 V AC 50/60 Hz
- Auxiliary contact composition
- 1 NC
- [Ie] rated operational current
- 16 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
- [Ue] rated operational voltage
- Power circuit: <= 690 V AC <= 400 Hz
- Ambient air temperature for operation
- -25…50 °C
- [Ith] conventional free air thermal current
- 20 A (at 60 °C) for power circuit
