LC1K1610M7

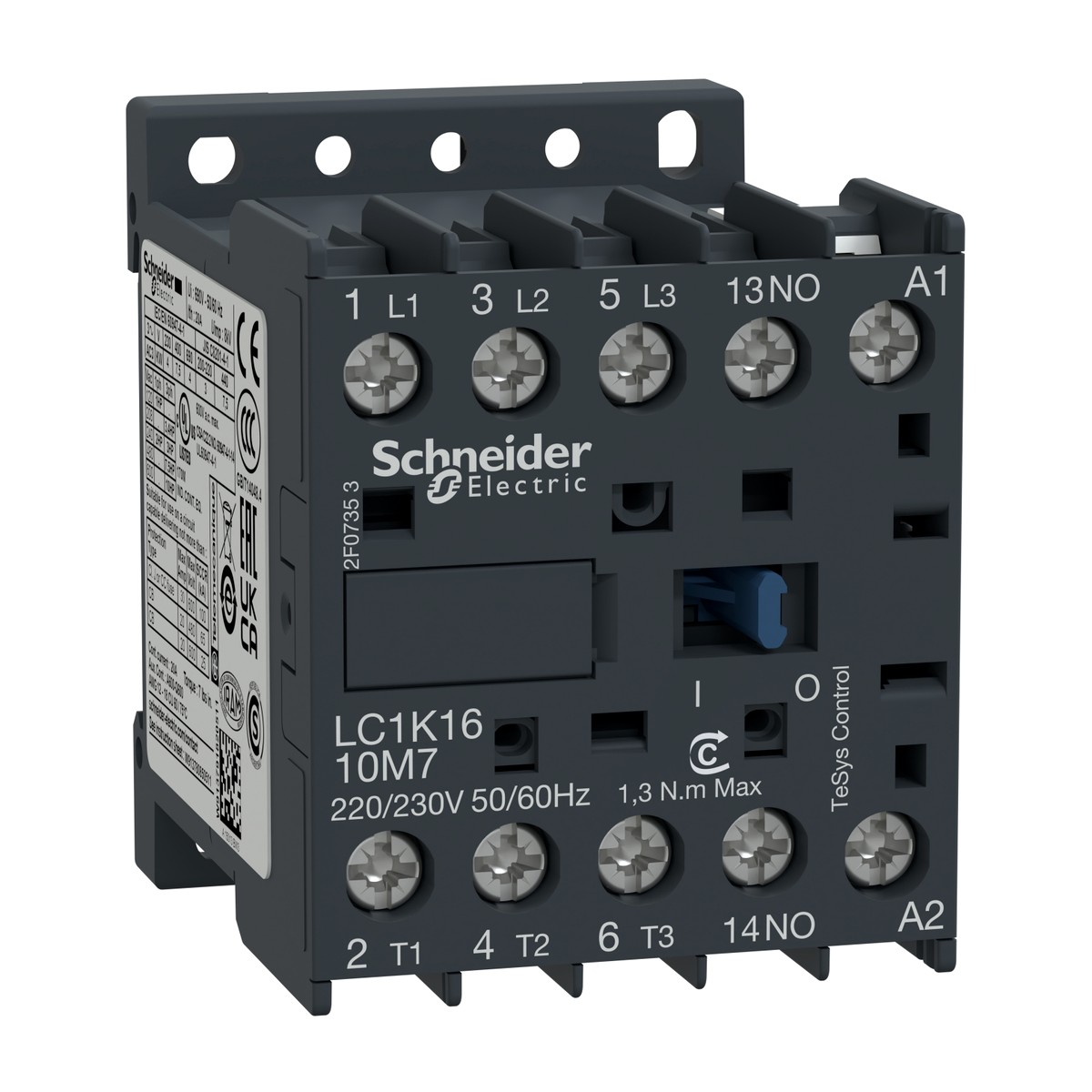

Schneider Electric LC1K1610M7 TeSys K Contactor 16A AC-3 3P with 220-230V AC Coil. The Schneider Electric LC1K1610M7 is a reliable TeSys K miniature contactor designed for efficient motor control in compact panels and small motors. This 3-pole contactor features a 16A AC-3/AC-3e rated operational current at up to 440V, making it suitable for a wide range of industrial applications. Its control circuit operates on a common 220-230V AC 50/60 Hz coil voltage, ensuring compatibility within Egyptian and Gulf electrical systems. Equipped with one normally open (1NO) auxiliary contact and secure screw clamp terminals, it offers versatile connectivity and integration. With a robust design providing 10 Mcycles mechanical durability and an IP2X degree of protection, the LC1K1610M7 is built for demanding environments. Typical applications include motor control in building services, food and beverage processing, water treatment, and light industrial machinery found across cement, oil & gas, and textile sectors in the region. To learn more about this essential electrical component and request a quote, please contact us.
Details
- Brand: Schneider Electric
- Part number: LC1K1610M7
- Series: TeSys
- Category: Contactor
Related Schneider Electric parts
- TeSys K Contactor LC1K1610P7 3P 16A AC-3/AC-3e with 230V AC coil
- Schneider Electric LC1K1610Q7 — TeSys K contactor 3P 16A AC-3/AC-3e with 380-400V AC coil, 1NO aux.
- Schneider Electric LC1K1610U7 — TeSys K contactor 16A AC-3 3P with 1 NO aux and 230-240V AC coil
- LAD31 Mounting Plate for TeSys Deca GV2ME
- Schneider Electric LADN02 — TeSys D auxiliary contact block 2 NC screw-clamps
- TeSys K LC1K0601P7 Contactor 6A AC-3 3P 230V AC Coil
- TeSys K LC1K0601U7 contactor 3P AC-3/AC-3e 6A with 1NC aux. and 230-240V AC coil
- Schneider Electric LRD21 — TeSys LRD thermal overload relays
- Schneider Electric LRD3355 — TeSys Deca thermal overload relay 30-40A Class 10A
- TeSys K LC1K0601B7 contactor, 6A AC-3, 3P, 24V AC coil, 1NC aux
- Schneider Electric TeSys K LC1K0601E7 contactor 6A AC-3/AC-3e 3P with 48V AC coil
- TeSys K LC1K0601F7 Contactor, 3P, 6A AC-3, 110V AC Coil, 1NC Aux.
Request a quote for LC1K1610M7
Specifications
- Depth
- 57 Mm
- Width
- 45 Mm
- Height
- 58 Mm
- Net weight
- 0.18 Kg
- Motor power kW
- 4 KW at 220...230 V AC 50/60 Hz AC-3/AC-3e, 7.5 KW at 380...415 V AC 50/60 Hz AC-3/AC-3e, 5.5 KW at 440 V AC 50/60 Hz AC-3/AC-3e
- Coil technology
- Without built-in suppressor module
- Device short name
- LC1K
- Poles description
- 3P
- Utilisation category
- AC-3/AC-3e
- Electrical durability
- 1.3 Mcycles 16 A AC-3 at Ue <= 440 V
- Mechanical durability
- 10 Mcycles
- Connections - terminals
- Screw clamp terminals
- IP degree of protection
- IP2X conforming to VDE 0106
- Manufacturer part number
- LC1K1610M7
- Control circuit voltage (Uc)
- 220...230 V AC 50/60 Hz
- Auxiliary contact composition
- 1 NO
- [Ui] rated insulation voltage
- Power circuit: 690 V conforming to IEC 60947-4-1
- Rated operational current (Ie)
- 16 A (at <60 °C) at <= 440 V AC AC-3/AC-3e for power circuit
- Ambient air temperature for operation
- -25…50 °C
- [Uimp] rated impulse withstand voltage
- 8 KV
