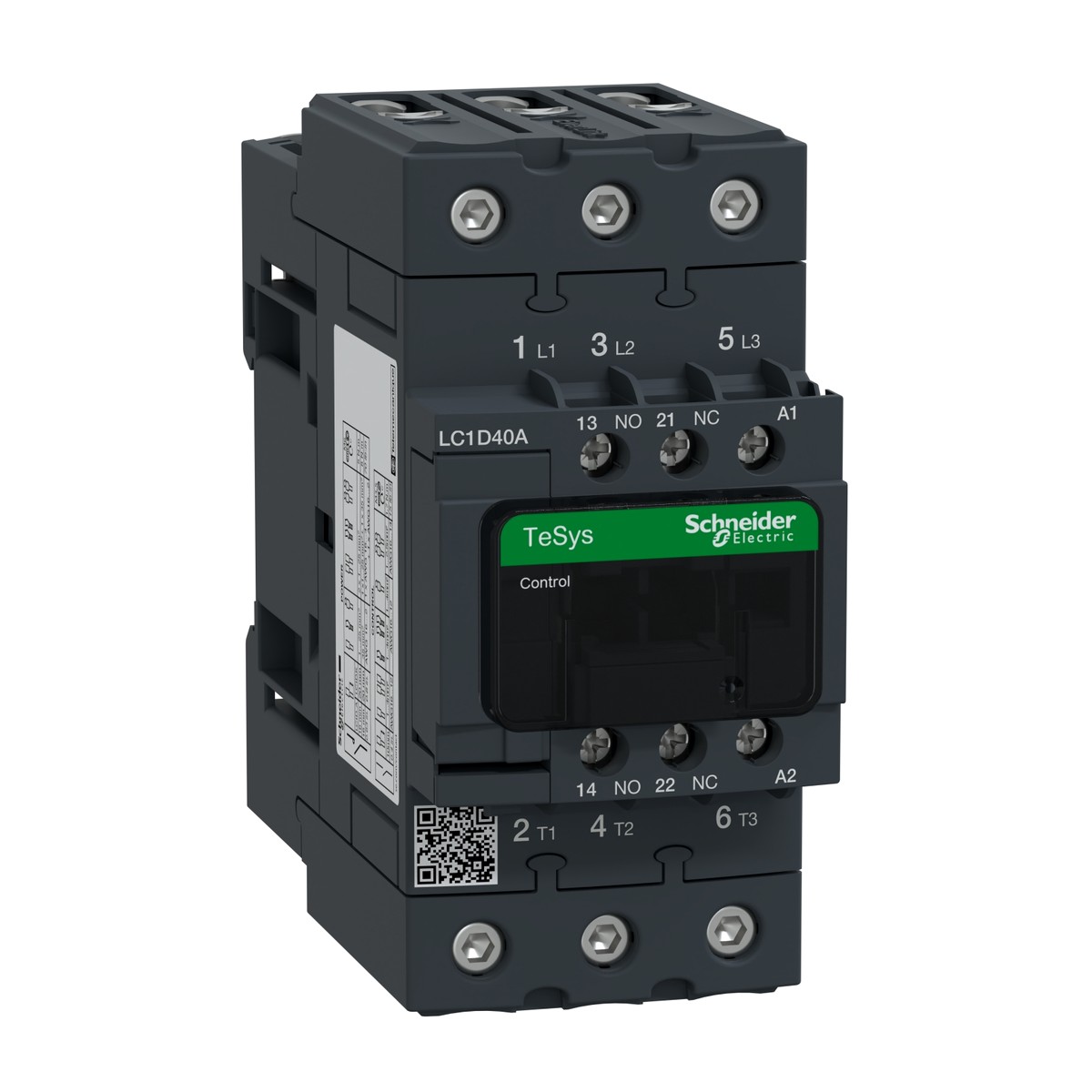

LC1D40AP7
Schneider Electric LC1D40AP7 TeSys Deca contactor 40 A AC-3 3P with 230 V AC coil. The Schneider Electric LC1D40AP7 is a robust TeSys Deca 3-pole power contactor, engineered for reliable motor control and resistive load switching in a wide array of industrial applications. Featuring a 40A AC-3 rated operational current at <=440V and a versatile 230V AC 50/60Hz control coil, this contactor is ideally suited for 380-415V power systems prevalent across Egypt and the Gulf region. Its screw clamp terminals ensure secure and straightforward wiring. With an 18.5 KW motor power rating at 380/400V AC (AC-3), the LC1D40AP7 is a dependable component for critical infrastructure. Designed to meet rigorous international standards including IEC 60947, this contactor provides exceptional mechanical durability of 6 Mcycles and electrical durability of 1.5 Mcycles. It includes a 1 NO + 1 NC auxiliary contact for enhanced control flexibility and offers IP20 front face protection. Typical applications span demanding sectors such as cement production, oil and gas, water treatment, food and beverage, textiles, and general building services. For a high-performance solution that meets the demands of your industrial environment, please request a quote for the Schneider Electric LC1D40AP7.
Details
- Brand: Schneider Electric
- Part number: LC1D40AP7
- Series: TeSys Deca
- Category: Contactor
Related Schneider Electric parts
- Schneider Electric LC1D40AQ7 — TeSys Deca LC1D Contactor 3P 40A AC-3 380V AC Coil
- TeSys Deca LC1D40AU7 contactor 40A AC-3 3P with 240V AC coil
- TeSys Deca LC1D40AV7 contactor 40 A AC-3 3P with 400 V AC 50/60Hz coil
- TeSys Deca LC1D50AB7 Contactor 50A 3P AC-3/AC-3e 24V AC 50/60Hz Coil
- TeSys Deca LC1D50AE7 contactor 50A AC-3 3P with 48V AC coil
- TeSys Deca LC1D50AF7 contactor 50A AC-3 3P with 110V AC 50/60Hz coil
- Schneider Electric LC1D50AFE7 — TeSys Deca LC1D Contactor 50A AC-3 3P with 115V AC 50/60Hz coil
- TeSys Deca LC1D50AM7 Contactor, 50A AC-3, 3P, 220V AC Coil
- TeSys Deca LC1D50AN7 contactor 50A AC-3 3P with 415V AC coil
- TeSys Deca LC1D50AP7 contactor 50A AC-3 3P with 230V AC 50/60Hz coil
- TeSys Deca LC1D50AQ7 contactor 50A AC-3 3P with 380V AC 50/60Hz coil
- Schneider Electric LC1D50AU7 — TeSys Deca LC1D50 contactor 50A AC-3 3P with 240V AC 50/60Hz coil
Specifications
- Standards
- EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1
- Net weight
- 0.85 Kg
- Device short name
- LC1D
- Poles description
- 3P (3 NO)
- Utilisation category
- AC-3, AC-3e, AC-1, AC-4
- Contactor application
- Motor control, Resistive load
- Electrical durability
- 1.5 Mcycles 40 A AC-3 at Ue <= 440 V
- Mechanical durability
- 6 Mcycles
- Product certifications
- CCC, UL, CB Scheme, CSA, CE, UKCA
- Connections - terminals
- Screw clamp terminals (Power & Control circuits)
- IP degree of protection
- IP20 front face conforming to IEC 60529
- Rated breaking capacity
- 800 A at 440 V for power circuit conforming to IEC 60947
- Manufacturer part number
- LC1D40AP7
- [Uc] control circuit voltage
- 230 V AC 50/60 Hz
- Auxiliary contact composition
- 1 NO + 1 NC
- Motor power (AC-3) at 380/400 V AC
- 18.5 KW
- [Ie] rated operational current AC-3
- 40 A (at <60 °C) at <= 440 V AC for power circuit
- Permissible ambient air temperature around the device
- -40…60 °C
