LC1D50AM7

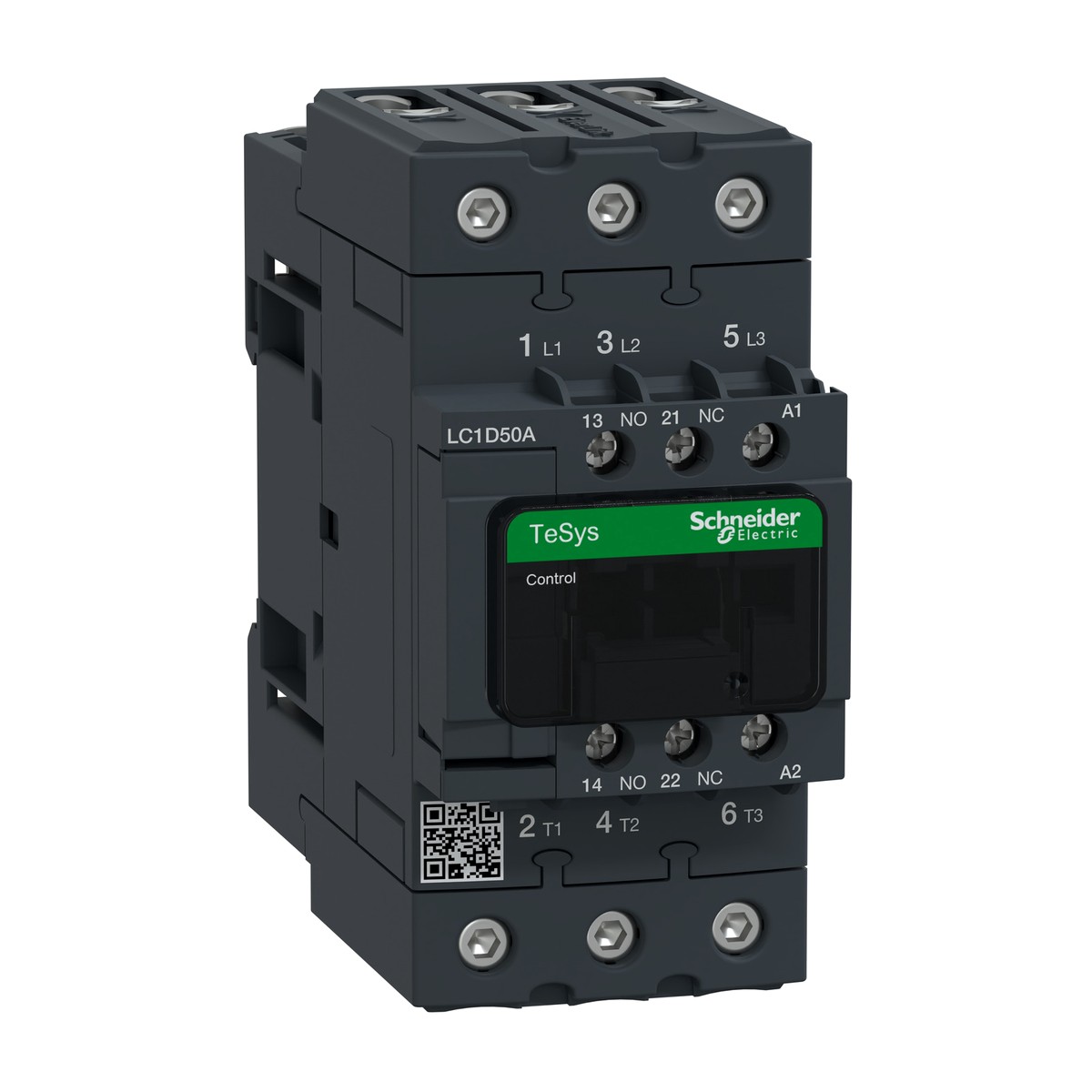

Schneider Electric LC1D50AM7 TeSys Deca Contactor, 50A AC-3, 3P, 220V AC Coil. The Schneider Electric LC1D50AM7 TeSys Deca contactor is a robust 3-pole IEC power contactor engineered for efficient motor and load switching in industrial and commercial panels. Featuring 3 Normally Open (NO) main contacts and versatile AC-3/AC-3e utilisation categories, it provides reliable performance for diverse applications. With a rated operational current of 50 A (AC-3 at <= 440 V AC) and a control circuit voltage of 220 V AC (50/60 Hz), this model is ideally suited for power systems common in Egypt and the Gulf, including 380/400 V AC. It offers substantial motor power handling, up to 22 kW at 380/400 V AC (AC-3), alongside convenient EverLink BTR screw connectors for power wiring and standard screw clamps for the control circuit. The LC1D50AM7 also includes 1 NO + 1 NC auxiliary contacts for seamless integration into control systems and an IP20 front face for protection. Typical applications span critical sectors such as cement, oil and gas, water treatment, food and beverage, textiles, and building services.
Details
- Brand: Schneider Electric
- Part number: LC1D50AM7
- Series: TeSys Deca
- Category: Contactor
Related Schneider Electric parts
- TeSys Deca LC1D50AN7 contactor 50A AC-3 3P with 415V AC coil
- TeSys Deca LC1D50AP7 contactor 50A AC-3 3P with 230V AC 50/60Hz coil
- TeSys Deca LC1D50AQ7 contactor 50A AC-3 3P with 380V AC 50/60Hz coil
- Schneider Electric LC1D50AU7 — TeSys Deca LC1D50 contactor 50A AC-3 3P with 240V AC 50/60Hz coil
- Schneider Electric LC1D50AV7 — TeSys Deca LC1D contactor 50 A AC-3 3P with 400 V AC 50/60 Hz coil
- LC1D65AB7 contactor 65 A AC-3 3P with 24V AC coil
- Schneider Electric LC1D65AE7 — TeSys Deca LC1D contactor 65A AC-3 3P 48V AC 50/60Hz screw clamp
- TeSys Deca LC1D65AF7 contactor 65 A AC-3/AC-3e 3P with 110V AC 50/60Hz coil
- TeSys Deca LC1D65AFE7 contactor 65A AC-3 3P with 115V AC 50/60Hz coil
- Schneider Electric LC1D65AP7 — TeSys Deca LC1D65 Contactor 65A AC-3 3P 230V AC 50/60Hz Coil
- TeSys Deca LC1D65AQ7 Contactor 65A AC-3 3P 380V AC 50/60Hz Coil
- Schneider Electric LC1D65AU7 — TeSys Deca LC1D contactor 65 A AC-3/AC-3e 3P with 240 V AC 50/60Hz coil
Specifications
- Depth
- 120 Mm
- Width
- 55 Mm
- Height
- 122 Mm
- Standards
- IEC 60947-4-1, IEC 60947-5-1
- Net weight
- 0.855 Kg
- Device short name
- LC1D
- Poles description
- 3P
- Utilisation category
- AC-3, AC-3e, AC-1, AC-4
- Contactor application
- Motor control, Resistive load
- Mechanical durability
- 6 Mcycles
- Connections - terminals
- Control circuit: screw clamp terminals; Power circuit: EverLink BTR screw connectors
- IP degree of protection
- IP20 front face conforming to IEC 60529
- Manufacturer part number
- LC1D50AM7
- Pole contact composition
- 3 NO
- Motor power kW (AC-3, 400V)
- 22 KW at 380/400 V AC 50/60 Hz
- Electrical durability (AC-3)
- 1.45 Mcycles 50 A AC-3 at Ue <= 440 V
- [Uc] control circuit voltage
- 220 V AC 50/60 Hz
- Auxiliary contact composition
- 1 NO + 1 NC
- [Ie] rated operational current (AC-3)
- 50 A (at <60 °C) at <= 440 V AC
- [Ue] rated operational voltage (Power circuit)
- <= 690 V AC
- Permissible ambient air temperature around the device
- -40…60 °C
