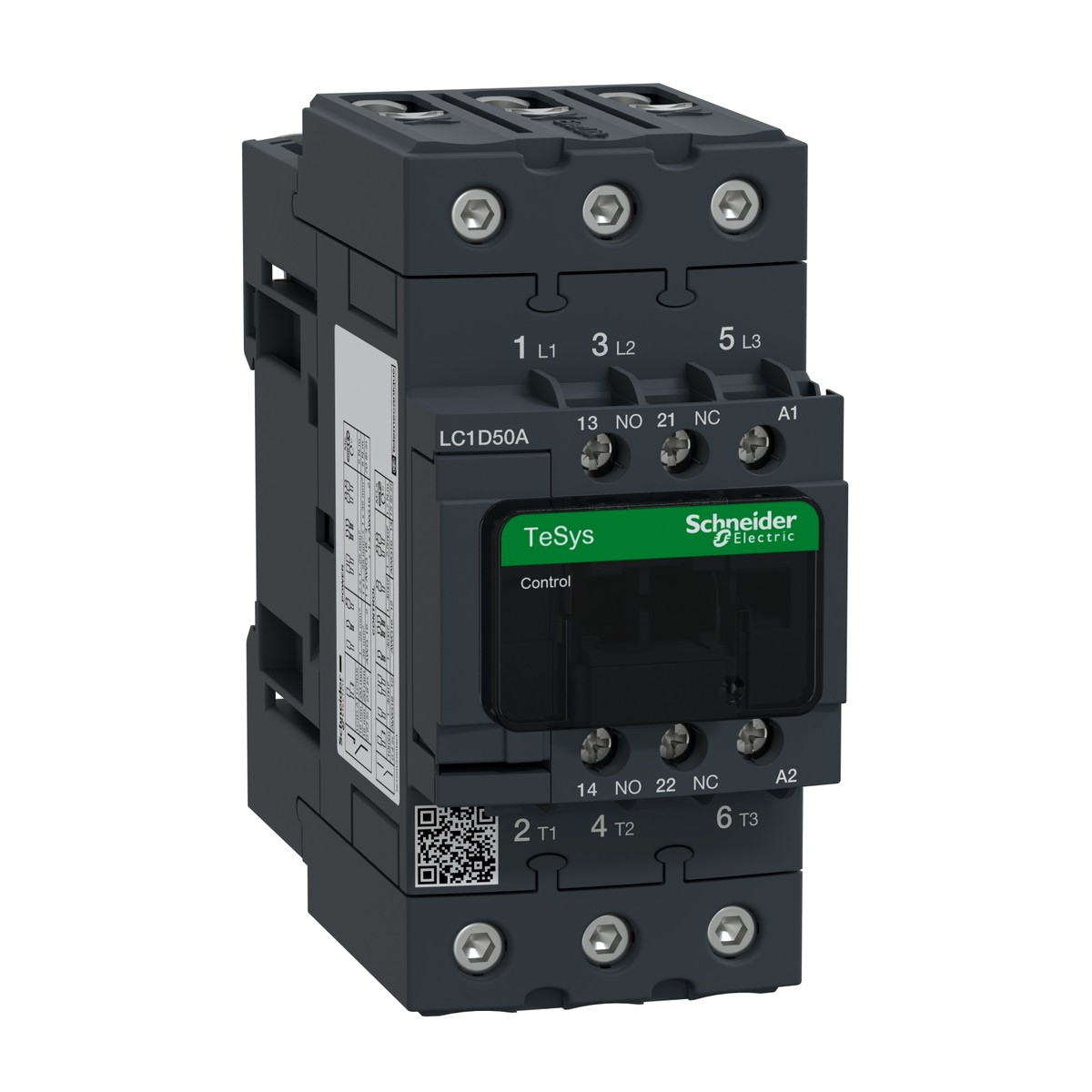

LC1D50AN7
Schneider Electric LC1D50AN7 TeSys Deca contactor 50A AC-3 3P with 415V AC coil. The Schneider Electric LC1D50AN7 contactor from the TeSys Deca range is a robust 3-pole device engineered for reliable motor control and resistive load switching in diverse industrial applications. Featuring a 415 V AC 50/60 Hz control coil, this contactor is ideally suited for the operational standards prevalent across Egypt and the Gulf region. It boasts a rated operational current of 50 A for AC-3/AC-3e categories at <= 440 V, handling motor powers up to 25 KW at 415 V AC. Designed for durability with screw clamp terminals for control circuits and EverLink BTR screw connectors for power, the LC1D50AN7 ensures secure connections and consistent performance. Its IP20 front face protection and compliance with IEC standards make it a dependable choice for panel builders and maintenance professionals in sectors such as cement production, oil and gas, water treatment, food and beverage processing, textiles, and building services. Discover the quality and reliability of Schneider Electric’s TeSys Deca range.
Details
- Brand: Schneider Electric
- Part number: LC1D50AN7
- Series: TeSys Deca
- Category: Contactor
Related Schneider Electric parts
- TeSys Deca LC1D50AP7 contactor 50A AC-3 3P with 230V AC 50/60Hz coil
- TeSys Deca LC1D50AQ7 contactor 50A AC-3 3P with 380V AC 50/60Hz coil
- Schneider Electric LC1D50AU7 — TeSys Deca LC1D50 contactor 50A AC-3 3P with 240V AC 50/60Hz coil
- Schneider Electric LC1D50AV7 — TeSys Deca LC1D contactor 50 A AC-3 3P with 400 V AC 50/60 Hz coil
- LC1D65AB7 contactor 65 A AC-3 3P with 24V AC coil
- Schneider Electric LC1D65AE7 — TeSys Deca LC1D contactor 65A AC-3 3P 48V AC 50/60Hz screw clamp
- TeSys Deca LC1D65AF7 contactor 65 A AC-3/AC-3e 3P with 110V AC 50/60Hz coil
- TeSys Deca LC1D65AFE7 contactor 65A AC-3 3P with 115V AC 50/60Hz coil
- Schneider Electric LC1D65AP7 — TeSys Deca LC1D65 Contactor 65A AC-3 3P 230V AC 50/60Hz Coil
- TeSys Deca LC1D65AQ7 Contactor 65A AC-3 3P 380V AC 50/60Hz Coil
- Schneider Electric LC1D65AU7 — TeSys Deca LC1D contactor 65 A AC-3/AC-3e 3P with 240 V AC 50/60Hz coil
- TeSys Deca LC1D65AV7 contactor 65 A AC-3 3P with 400 V AC 50/60 Hz coil
Specifications
- Depth
- 120 Mm
- Width
- 55 Mm
- Height
- 122 Mm
- Net weight
- 0.855 Kg
- Motor power kW
- 25 KW at 415 V AC 50/60 Hz (AC-3)
- Device short name
- LC1D
- Poles description
- 3P
- Utilisation category
- AC-3, AC-3e, AC-1, AC-4
- Connections - terminals
- Power circuit: EverLink BTR screw connectors; Control circuit: screw clamp terminals
- IP degree of protection
- IP20 front face conforming to IEC 60529
- Manufacturer part number
- LC1D50AN7
- Pole contact composition
- 3 NO
- [Uc] control circuit voltage
- 415 V AC 50/60 Hz
- Auxiliary contact composition
- 1 NO + 1 NC
- [Ie] rated operational current
- 50 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
- [Ue] rated operational voltage
- Power circuit: <= 690 V AC 25...400 Hz
- Permissible ambient air temperature around the device
- -40…60 °C
