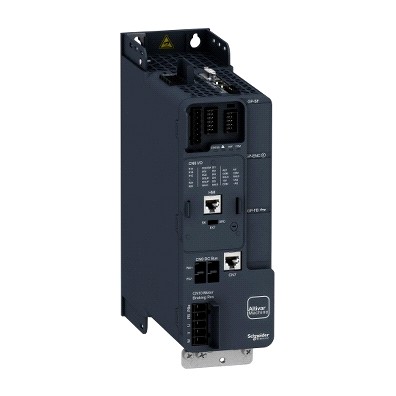

Schneider Electric ATV340U40N4 Variable Speed Drive
Schneider Electric ATV340U40N4 Altivar Machine ATV340 Variable Speed Drive 4kW. This Altivar 340 variable speed drive can feed 3-phase synchronous and asynchronous motors in open and closed loop control. Altivar Machine ATV340 drives are sized heavy duty as standard. It works at a rated power up to 4kW / 5hp and a rated voltage from 380V to 480V AC. ATV340 has been designed to meet the needs of applications for harsh environments, such as vibration, shock and non-conductive dust and where high temperature resistance up to 60 °C is needed. This product integrates Modbus serial line communication protocols as standard. it weighs 2.2kg and its dimensions are, 85mm wide, 270mm high, 232.5mm deep. ATV340 incorporates functions and features suitable for the most common applications, including packaging, material handling, material working, hoisting. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions), IEC 60721-3, IEC 61508, IEC 13849-1. It is also CE, UL, CSA, and TÜV certified. Accessories and options (encoder interface modules, I/O expansion modules, communication modules, braking resistors, line chokes, additional EMC filters) are available with Altivar Machine ATV340 drives, depending on the drive rating. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. It is fully integrated inside Schneider Electric’s EcoStruxure Machine through DTM. It is possible to configure, control, and diagnose ATV340 drives directly in SoMachine and SoMove software by means of the same software brick (DTM). It is eco-friendly and complies with directives such as RoHS relating to environmental protection.
Details
- Brand: Schneider Electric
- Part number: ATV340U40N4
- Series: Altivar Machine
- Category: Variable Frequency Drive
Category
Altivar Machine ATV320 & ATV340 Drives
Related Schneider Electric parts
- Schneider Electric ATV320U15N4B — Altivar Machine ATV320 Variable Speed Drive 1.5 kW
- Schneider Electric ATV320U55S6C — variable speed drive ATV320 - 5.5kW - 600V - 3phase - compact
- ATV320U75S6C Variable Speed Drive 7.5 kW
- ATV320U22S6C variable speed drive ATV320 - 2.2kW - 600V - 3phase - compact
- Altivar 212 Variable Speed Drive ATV212WU75N4C for 7.5kW, 480V 3-phase
- Schneider Electric ATV630U07N4 — variable speed drive ATV630 - 0.75kW/1HP - 380...480V - IP21/ UL type 1
- Schneider Electric A9D57432 — Residual current breaker with overcurrent protection (RCBO), Acti9 iC60, 4P, 32A, C curve, 6000A/6kA, AC type, 30mA
- Schneider Electric ATV630D15N4 — Altivar Process ATV630 Variable Speed Drive 15kW 380-480V IP21
- Schneider Electric ATV930U07M3 — Altivar Process ATV930 Variable Speed Drive 0.75 kW 200/240V with braking unit
- Altivar Process ATV930U30M3 Variable Speed Drive 3kW 200/240V IP21
- Schneider Electric ATV930U40M3 — Altivar Process ATV930 Variable Speed Drive 4 kW 200/240V with Braking Unit, IP21
- ATV930U75M3 variable speed drive - 7.5kW - 200/240V with braking unit - IP21
Request a quote for ATV340U40N4
Specifications
- Depth
- 232.5 mm
- Width
- 85 mm
- Height
- 270 mm
- EMC filter
- Integrated
- Product weight
- 2.2 kg
- Supply frequency
- 50...60 Hz
- Rated supply voltage
- 380...480 V
- IP degree of protection
- IP20
- Manufacturer part number
- ATV340U40N4
- Motor power (Heavy Duty)
- 4 kW
- Network number of phases
- 3 phases
- Motor power (Normal Duty)
- 5.5 kW
- Nominal switching frequency
- 4 kHz
- Continuous output current (Heavy Duty)
- 9.3 A at 4 kHz
- Continuous output current (Normal Duty)
- 12.7 A at 4 kHz
