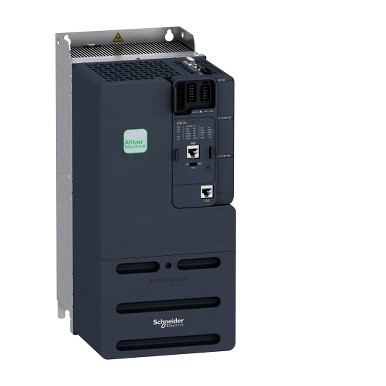

Schneider Electric ATV340D18N4 Variable Speed Drive
Schneider Electric ATV340D18N4 Altivar Machine Variable Speed Drive 18 kW 400V 3-phase. This Altivar 340 variable speed drive can feed 3-phase synchronous and asynchronous motors in open and closed loop control. Altivar Machine ATV340 drives are sized heavy duty as standard. It works at a rated power up to 18.5kW / 25hp and a rated voltage from 380V to 480V AC. ATV340 has been designed to meet the needs of applications for harsh environments, such as vibration, shock and non-conductive dust and where high temperature resistance up to 60 °C is needed. This product integrates Modbus serial line communication protocols as standard. it weighs 10.2kg and its dimensions are, 180mm wide, 385mm high, 249mm deep. ATV340 incorporates functions and features suitable for the most common applications, including packaging, material handling, material working, hoisting. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions), IEC 60721-3, IEC 61508, IEC 13849-1. It is also CE, UL, CSA, and TÜV certified. Accessories and options (encoder interface modules, I/O expansion modules, communication modules, braking resistors, line chokes, additional EMC filters) are available with Altivar Machine ATV340 drives, depending on the drive rating. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. It is fully integrated inside Schneider Electric’s EcoStruxure Machine through DTM. It is possible to configure, control, and diagnose ATV340 drives directly in SoMachine and SoMove software by means of the same software brick (DTM). It is eco-friendly and complies with directives such as RoHS relating to environmental protection.
Details
- Brand: Schneider Electric
- Part number: ATV340D18N4
- Series: Altivar Machine ATV340
- Category: Variable Frequency Drive
Category
Altivar Machine ATV320 & ATV340 Drives
Related Schneider Electric parts
- Schneider Electric ATV340U07N4 — Altivar Machine ATV340 Variable Speed Drive 0.75kW
- Schneider Electric ATV340U07N4E — Altivar Machine ATV340 Variable Speed Drive 0.75kW 400V 3 Phases with Ethernet
- Schneider Electric ATV340U07N4S — Altivar Machine ATV340 Variable Speed Drive 0.75kW
- Schneider Electric ATV340U15N4 — Altivar Machine ATV340 Variable Speed Drive 1.5 kW (Heavy Duty) / 2.2 kW (Normal Duty)
- Schneider Electric ATV340U22N4E — Altivar Machine ATV340 Variable Speed Drive 2.2kW 400V 3-phase Ethernet
- ATV340U15N4E variable speed drive, Altivar Machine ATV340, 1.5kW, heavy duty, 400V, 3 phases, Ethernet
- Schneider Electric ATV340U30N4E — Altivar Machine ATV340 Variable Speed Drive, 3kW, Heavy Duty, 400V, 3 Phases, Ethernet
- Schneider Electric ATV340U22N4 — Schneider Electric Altivar Machine ATV340 Variable Speed Drive 2.2kW, 400V, 3-Phase
- Schneider Electric ATV340U22N4S — Altivar Machine ATV340 Variable Speed Drive, 2.2kW, Heavy Duty, 400V, 3 Phases, Sercos
- Schneider Electric ATV340U15N4S — Variable speed drive, Altivar Machine ATV340, 1.5 kW Heavy Duty, 400 V, 3 phases, Sercos
- Schneider Electric ATV340U55N4E — Altivar Machine ATV340 Variable Speed Drive 5.5kW 400V 3-phase Ethernet
- Schneider Electric ATV340U75N4 — Altivar Machine ATV340 Variable Speed Drive 7.5kW 400V
Request a quote for ATV340D18N4
Specifications
- Depth
- 249 mm
- Width
- 180 mm
- Height
- 385 mm
- Phases
- 3
- EMC Filter
- Integrated C3
- Cooling Type
- Forced convection
- IP Protection
- IP20
- Prospective Line Isc
- 22 kA
- Rated supply voltage
- 380...480 V
- Output Frequency Range
- 0.1...599 Hz
- Manufacturer part number
- ATV340D18N4
- Motor Power (Heavy Duty)
- 18.5 kW
- Motor Power (Normal Duty)
- 22 kW
- Apparent Power (Heavy Duty)
- 36.1 kVA
- Nominal Switching Frequency
- 4 kHz
- Apparent Power (Normal Duty)
- 33.4 kVA
- Continuous Output Current (Heavy Duty)
- 39 A
- Continuous Output Current (Normal Duty)
- 46 A
