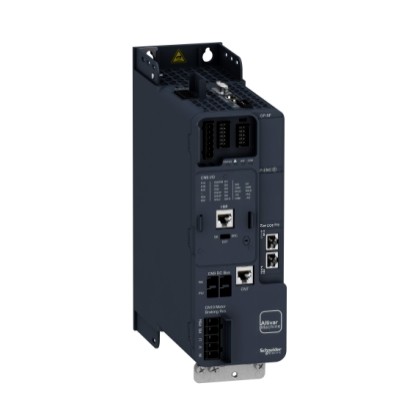

ATV340U15N4S
Schneider Electric ATV340U15N4S Variable speed drive, Altivar Machine ATV340, 1.5 kW Heavy Duty, 400 V, 3 phases, Sercos. This product is part of the Altivar 340 range, an offer of variable speed drives from 0.75kW to 75kW. This variable speed drive features an integrated EMC filter conforming to category C3. It is designed for 3-phase AC asynchronous and synchronous motors with a maximum power of 1.5kW/2HP for heavy duty and 2.2kW/3HP for normal duty. It is a 3-phase variable speed drive with a rated supply voltage of 380V to 480V, a frequency of 50/60Hz and a continuous output current of 5.6A at 4kHz. It is furnished with screw terminals for electrical connection and 3 RJ45 connectors for Modbus serial communication. It is an IP20 rated product. Its dimensions are 85mm (width) x 232.5mm (depth) x 270mm (height). It weighs 1.7kg. It is suitable for packaging, material working, material handling and hoisting machine segment applications. This product is certified by CSA, CE, C-Tick, EAC, UL and TUV. It meets UL 508C, UL 618000-5-1, EN/IEC 61800-3, EN/IEC 61800-5-1, IEC 60721-3 and IEC 61508 standards. It supports cabinet mounting method. The Altivar Machine ATV340 range of variable speed drives cover motor power ratings from 1HP to 100HP in heavy duty, with 3 types Modular, Ethernet and SERCOS products. The Altivar Machine ATV340 variable speed drives offer top level automation capabilities and outstanding motor control technology combined with simplicity.
Details
- Brand: Schneider Electric
- Part number: ATV340U15N4S
- Series: Altivar Machine ATV340
- Category: VFD
Related Schneider Electric parts
- Schneider Electric ATV340U55N4E — Altivar Machine ATV340 Variable Speed Drive 5.5kW 400V 3-phase Ethernet
- Schneider Electric ATV340U75N4 — Altivar Machine ATV340 Variable Speed Drive 7.5kW 400V
- Schneider Electric ATV340U40N4E — Altivar Machine ATV340 variable speed drive - 4kW - 400V - 3 phases - Ethernet
- Schneider Electric ATV340D11N4E — variable speed drive - 11kW- 400V - 3 phases - ATV340 Ethernet
- Schneider Electric ATV340D11N4 — Variable speed drive, Altivar Machine ATV340, 11 kW Heavy Duty, 400 V, 3 phases
- Schneider Electric ATV340U75N4S — Altivar Machine ATV340 Variable Speed Drive 7.5kW 10HP 400V Sercos
- Schneider Electric ATV340U75N4E — variable speed drive, Altivar Machine ATV340, 7.5kW, heavy duty, 400V, 3 phases, Ethernet
- Schneider Electric ATV340U55N4S — Altivar Machine ATV340 Variable Speed Drive 5.5kW Heavy Duty
- Schneider Electric ATV340D22N4E — Altivar Machine ATV340 Variable Speed Drive, 22kW Heavy Duty, 400V, 3 Phases, Ethernet
- Altivar Machine ATV340D22N4 Variable Speed Drive 22kW, 400V, 3-Phase
- Schneider Electric ATV340D22N4S — Altivar Machine ATV340 Variable Speed Drive 22kW Heavy Duty
- Schneider Electric ATV340D30N4E — Altivar Machine ATV340 Variable Speed Drive, 30 kW, 400 V, 3-phase
Request a quote for ATV340U15N4S
Specifications
- EMC filter
- Class C3 integrated
- Number of phases
- 3 phases
- Supply frequency
- 50...60 Hz
- Max input current
- 6.0 A
- Max output frequency
- 0.599 kHz
- Rated supply voltage
- 380...480 V
- Communication protocol
- Sercos, Modbus serial
- Nominal output current
- 4.0 A
- IP degree of protection
- IP20
- Manufacturer part number
- ATV340U15N4S
- Motor power (Heavy Duty)
- 1.5 kW
- Motor power (Normal Duty)
- 2.2 kW
- Apparent power (Heavy Duty)
- 4.1 kVA at 480 V
- Nominal switching frequency
- 4 kHz
