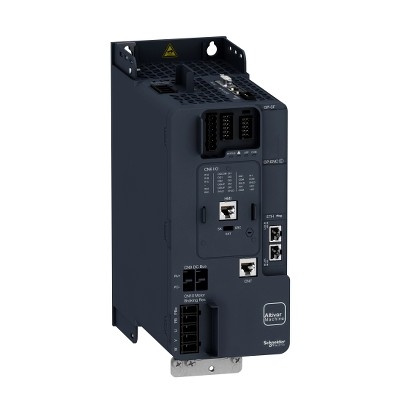

ATV340U75N4E
Schneider Electric ATV340U75N4E variable speed drive, Altivar Machine ATV340, 7.5kW, heavy duty, 400V, 3 phases, Ethernet. This Altivar 340 variable speed drive can feed 3-phase synchronous and asynchronous motors in open and closed loop control. Altivar Machine ATV340 drives are sized heavy duty as standard. It works at a rated power up to 7.5kW / 10hp and a rated voltage from 380V to 480V AC. ATV340 has been designed to meet the needs of applications for harsh environments, such as vibration, shock and non-conductive dust and where high temperature resistance up to 60 °C is needed. This product integrates Modbus serial line communication protocols as standard. This drive features multi-protocol Ethernet embedded, it consists of Ethernet IP and Modbus TCP communication interfaces. it weighs 3kg and its dimensions are, 110mm wide, 270mm high, 234mm deep. ATV340 incorporates functions and features suitable for the most common applications, including packaging, material handling, material working, hoisting. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions), IEC 60721-3, IEC 61508, IEC 13849-1. It is also CE, UL, CSA, and TÜV certified. Accessories and options (encoder interface modules, I/O expansion modules, communication modules, braking resistors, line chokes, additional EMC filters) are available with Altivar Machine ATV340 drives, depending on the drive rating. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. It is fully integrated inside Schneider Electric’s EcoStruxure Machine through DTM. It is possible to configure, control, and diagnose ATV340 drives directly in SoMachine and SoMove software by means of the same software brick (DTM). It is eco-friendly and complies with directives such as RoHS relating to environmental protection.
Details
- Brand: Schneider Electric
- Part number: ATV340U75N4E
- Series: Altivar Machine ATV340
- Category: VFD
Related Schneider Electric parts
- Schneider Electric ATV340U55N4S — Altivar Machine ATV340 Variable Speed Drive 5.5kW Heavy Duty
- Schneider Electric ATV340D22N4E — Altivar Machine ATV340 Variable Speed Drive, 22kW Heavy Duty, 400V, 3 Phases, Ethernet
- Altivar Machine ATV340D22N4 Variable Speed Drive 22kW, 400V, 3-Phase
- Schneider Electric ATV340D22N4S — Altivar Machine ATV340 Variable Speed Drive 22kW Heavy Duty
- Schneider Electric ATV340D30N4E — Altivar Machine ATV340 Variable Speed Drive, 30 kW, 400 V, 3-phase
- Schneider Electric ATV340D37N4E — Altivar Machine ATV340 Variable Speed Drive 37 kW 400V 3-Phase Ethernet
- Schneider Electric ATV340D45N4E — Altivar Machine ATV340 Variable Speed Drive - 45kW- 400V - 3 phases - Ethernet
- ATV340D55N4E variable speed drive - 55kW- 400V - 3 phases - ATV340 Ethernet
- ATV340D75N4E variable speed drive - 75kW- 400V - 3 phases - ATV340 Ethernet
- Schneider Electric ATV340D11N4S — Altivar Machine ATV340 Variable Speed Drive 11kW Heavy Duty
- Schneider Electric ATV340D15N4 — Variable speed drive, Altivar Machine ATV340, 15 kW Heavy Duty, 400 V, 3 phases
- Schneider Electric ATV340D15N4E — Altivar Machine ATV340 Variable Speed Drive 15kW 400V 3 Phases Ethernet
Request a quote for ATV340U75N4E
Specifications
- Phases
- 3
- EMC filter
- Class C3 integrated
- IP protection
- IP20
- Supply frequency
- 50...60 Hz
- Relay output number
- 2
- Rated supply voltage
- 380...480 V
- Analogue input number
- 2
- Discrete input number
- 5
- Analogue output number
- 1
- Discrete output number
- 2
- Nominal output current
- 16.5 A
- Communication protocols
- EtherNet/IP, Modbus serial, Modbus TCP
- Manufacturer part number
- ATV340U75N4E
- Maximum output frequency
- 0.599 kHz
- Motor power (heavy duty)
- 7.5 kW
- Motor power (normal duty)
- 11 kW
- Motor power hp (heavy duty)
- 10 hp
- Nominal switching frequency
- 4 kHz
- Motor power hp (normal duty)
- 15 hp
- Maximum switching current R1C (resistive)
- 3 A at 250 V AC, 3 A at 30 V DC
- Maximum switching current R2C (resistive)
- 5 A at 250 V AC, 5 A at 30 V DC
