ATV310HU55N4E

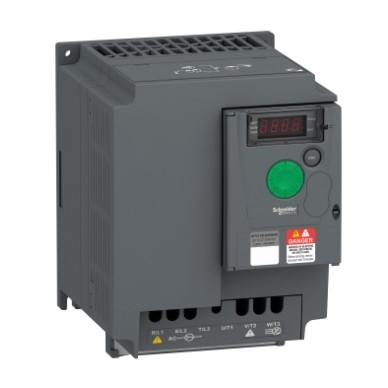

Schneider Electric ATV310HU55N4E Easy Altivar 310 variable speed drive 5.5 kW heavy duty / 7.5 kW normal duty 380-460 V 3-phase. The Schneider Electric ATV310HU55N4E is an Easy Altivar 310 variable speed drive rated 5.5 kW / 7.5 hp in heavy duty and 7.5 kW / 10 hp in normal duty, fed from a three-phase 380...460 V network. The ATV310HU55N4E supplies 12.6 A continuous output current in heavy duty and 16.0 A in normal duty, with 18.9 A transient current for 60 s, an output frequency range of 0.5...400 Hz and a switching frequency adjustable from 2 to 12 kHz. Control laws include voltage/frequency ratio, quadratic U/f energy saving and sensorless vector control (SVC), and Modbus RTU communication is standard on the front RJ45 port. The unit is supplied without EMC filter, is protected to IP20 (IP4X on top), measures 184 x 140 x 151 mm and weighs 1.8 kg. It is well suited to water and wastewater pumping, HVAC fans, food processing machinery and textile lines.
Details
- Brand: Schneider Electric
- Part number: ATV310HU55N4E
- Series: Easy Altivar 310 (ATV310)
- Category: Variable Frequency Drive
Related Schneider Electric parts
- Easy Altivar 310 ATV310HU22N4E variable speed drive 2.2 kW 3 hp 380-460 V 3-phase
- Altivar 12 ATV12HU15M2 variable speed drive 1.5 kW 2 hp 200-240 V single-phase with heat sink
- Altivar Process ATV630D22N4 variable speed drive 22 kW / 30 hp 380-480 V 3-phase IP21
- Schneider Electric ATV320D11M3C — Variable Speed Drive, Altivar Machine ATV320, 11kW, 200-240V, 3 phases, Compact
- Schneider Electric ATV320D15M3C — Altivar Machine ATV320 Variable Speed Drive 15kW 200-240V 3-phase Compact
- Schneider Electric ATV320U02M3C — Altivar Machine ATV320 Variable Speed Drive 0.18 kW 200-240 V 3-Phase Compact
- Schneider Electric ATV320U04N4C — Variable Speed Drive ATV320 0.37 kW 380-500 V 3-Phase Compact
- Schneider Electric ATV320U06M2B — Altivar Machine ATV320 Variable Speed Drive 0.55kW 1-ph 200-240V
- Schneider Electric ATV320U06M2C — Altivar Machine ATV320 Variable Speed Drive 0.55kW 1-Phase
- Schneider Electric ATV320U06N4B — Altivar Machine ATV320 Variable Speed Drive 0.55kW
- Schneider Electric ATV320U06N4C — Altivar Machine ATV320 Variable Speed Drive 0.55kW 380-500V 3-phase Compact
- Schneider Electric ATV320U07M2B — Altivar Machine ATV320 Variable Speed Drive, 0.75kW, 1-Phase
Request a quote for ATV310HU55N4E
Specifications
- EMC filter
- Without EMC filter
- Net weight
- 1.8 kg
- Line current
- 21.3 A at 380 V (heavy duty) / 23.0 A at 380 V (normal duty)
- Apparent power
- 11.4 KVA at 460 V (heavy duty) / 15.1 KVA at 460 V (normal duty)
- Assembly style
- With heat sink
- Motor power hp
- 7.5 Hp for heavy duty / 10 Hp for normal duty
- Motor power kW
- 5.5 KW for heavy duty / 7.5 KW for normal duty
- Range of product
- Easy Altivar 310
- Switching frequency
- 2...12 kHz adjustable
- Dimensions (H x W x D)
- 184 mm x 140 mm x 151 mm
- Power dissipation in W
- 162.4 W, at In (heavy duty)
- IP degree of protection
- IP20 without blanking plate on upper part; IP4X top
- Manufacturer part number
- ATV310HU55N4E
- Network number of phases
- Three phase
- Continuous output current
- 12.6 A heavy duty / 16.0 A normal duty
- Maximum transient current
- 18.9 A during 60 s (heavy duty)
- Product or component type
- Variable speed drive
- [Us] rated supply voltage
- 380...460 V - 15...10 %
- Communication port protocol
- Modbus
- Speed drive output frequency
- 0.5…400 Hz
- Asynchronous motor control profile
- Voltage/Frequency ratio (V/f); Voltage/Frequency ratio - Energy Saving, quadratic U/f; Sensorless vector control (SVC)
- Ambient air temperature for operation
- -10…55 °C without derating
