ATV12HU15M2

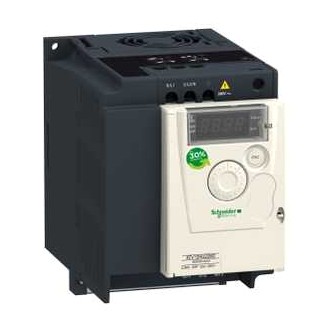

Schneider Electric ATV12HU15M2 Altivar 12 variable speed drive 1.5 kW 2 hp 200-240 V single-phase with heat sink. The Schneider Electric ATV12HU15M2 is a compact variable speed drive from the Altivar 12 range, rated 1.5 kW / 2 hp from a single-phase 200...240 V, 50/60 Hz supply and producing a 200...240 V three-phase output for the motor. The ATV12HU15M2 draws 14.9 A line current at 240 V, delivers 7.5 A continuous output current at 4 kHz and 11.2 A transient current for 60 s, with an output frequency of 0.5...400 Hz and a switching frequency adjustable from 2 to 16 kHz. Control laws include voltage/frequency ratio, quadratic V/f and sensorless flux vector control, and Modbus RTU is provided on the front RJ45. The drive has an integrated EMC filter, IP20 protection without the blanking plate on the upper part, a 45 dB noise level, and measures 142 x 105 x 156.2 mm at 1.4 kg. It suits small pumps, fans, compressors and simple machines where only single-phase supply is available.
Details
- Brand: Schneider Electric
- Part number: ATV12HU15M2
- Series: Altivar 12 (ATV12)
- Category: Variable Frequency Drive
Related Schneider Electric parts
- Altivar Process ATV630D22N4 variable speed drive 22 kW / 30 hp 380-480 V 3-phase IP21
- Schneider Electric ATV320D11M3C — Variable Speed Drive, Altivar Machine ATV320, 11kW, 200-240V, 3 phases, Compact
- Schneider Electric ATV320D15M3C — Altivar Machine ATV320 Variable Speed Drive 15kW 200-240V 3-phase Compact
- Schneider Electric ATV320U02M3C — Altivar Machine ATV320 Variable Speed Drive 0.18 kW 200-240 V 3-Phase Compact
- Schneider Electric ATV320U04N4C — Variable Speed Drive ATV320 0.37 kW 380-500 V 3-Phase Compact
- Schneider Electric ATV320U06M2B — Altivar Machine ATV320 Variable Speed Drive 0.55kW 1-ph 200-240V
- Schneider Electric ATV320U06M2C — Altivar Machine ATV320 Variable Speed Drive 0.55kW 1-Phase
- Schneider Electric ATV320U06N4B — Altivar Machine ATV320 Variable Speed Drive 0.55kW
- Schneider Electric ATV320U06N4C — Altivar Machine ATV320 Variable Speed Drive 0.55kW 380-500V 3-phase Compact
- Schneider Electric ATV320U07M2B — Altivar Machine ATV320 Variable Speed Drive, 0.75kW, 1-Phase
- Schneider Electric ATV320U07N4B — Altivar Machine ATV320 Variable Speed Drive 0.75kW 380-500V 3-Phase Book
- Schneider Electric ATV320U11M2B — Altivar Machine ATV320 variable speed drive 1.1kW 200-240V 1 phase book
Request a quote for ATV12HU15M2
Specifications
- EMC filter
- Integrated
- Noise level
- 45 dB
- Line current
- 14.9 A at 240 V / 17.8 A at 200 V
- Assembly style
- With heat sink
- Motor power hp
- 2 hp
- Motor power kW
- 1.5 kW
- Output voltage
- 200...240 V three phase
- Product weight
- 1.4 kg
- Range of product
- Altivar 12
- Supply frequency
- 50/60 Hz (+/- 5 %)
- Switching frequency
- 2...16 kHz adjustable
- Dimensions (H x W x D)
- 142 mm x 105 mm x 156.2 mm
- IP degree of protection
- IP20 without blanking plate on upper part
- Manufacturer part number
- ATV12HU15M2
- Network number of phases
- Single phase
- Continuous output current
- 7.5 A at 4 kHz
- Maximum transient current
- 11.2 A for 60 s
- Product or component type
- Variable speed drive
- [Us] rated supply voltage
- 200...240 V (- 15...10 %)
- Communication port protocol
- Modbus
- Speed drive output frequency
- 0.5...400 Hz
- Asynchronous motor control profile
- Voltage/Frequency ratio (V/f); Quadratic voltage/frequency ratio; Sensorless flux vector control
