ATV630D22N4

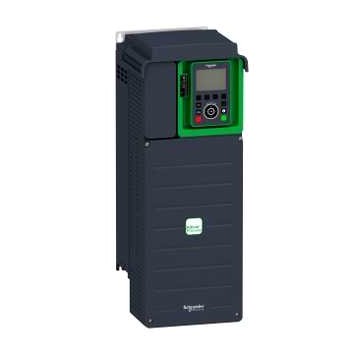

Schneider Electric ATV630D22N4 Altivar Process variable speed drive 22 kW / 30 hp 380-480 V 3-phase IP21. The Schneider Electric ATV630D22N4 is a wall-mounted Altivar Process ATV600 variable speed drive rated 22 kW / 30 hp in normal duty and 18.5 kW / 25 hp in heavy duty from a 380...480 V, 3-phase, 50...60 Hz network. The ATV630D22N4 delivers 46.3 A continuous output current at 4 kHz in normal duty, draws 39.6 A line current at 380 V, and offers constant torque, variable torque and optimized torque control laws plus permanent magnet synchronous motor control. EMC filtering to EN/IEC 61800-3 category C2 (50 m) is integrated, enclosure protection is IP21 to IEC 61800-5-1 and UL type 1, and STO (safe torque off) SIL 3 is embedded. Ethernet, Modbus TCP and Modbus serial are built in, with optional Profibus DP V1, Profinet, DeviceNet and CANopen cards for plant networks. Typical duties include water and wastewater pumping stations, cement plant fans, oil and gas utilities and large building HVAC.
Details
- Brand: Schneider Electric
- Part number: ATV630D22N4
- Series: Altivar Process ATV600 (ATV630)
- Category: Variable Frequency Drive
Related Schneider Electric parts
- Schneider Electric ATV320D11M3C — Variable Speed Drive, Altivar Machine ATV320, 11kW, 200-240V, 3 phases, Compact
- Schneider Electric ATV320D15M3C — Altivar Machine ATV320 Variable Speed Drive 15kW 200-240V 3-phase Compact
- Schneider Electric ATV320U02M3C — Altivar Machine ATV320 Variable Speed Drive 0.18 kW 200-240 V 3-Phase Compact
- Schneider Electric ATV320U04N4C — Variable Speed Drive ATV320 0.37 kW 380-500 V 3-Phase Compact
- Schneider Electric ATV320U06M2B — Altivar Machine ATV320 Variable Speed Drive 0.55kW 1-ph 200-240V
- Schneider Electric ATV320U06M2C — Altivar Machine ATV320 Variable Speed Drive 0.55kW 1-Phase
- Schneider Electric ATV320U06N4B — Altivar Machine ATV320 Variable Speed Drive 0.55kW
- Schneider Electric ATV320U06N4C — Altivar Machine ATV320 Variable Speed Drive 0.55kW 380-500V 3-phase Compact
- Schneider Electric ATV320U07M2B — Altivar Machine ATV320 Variable Speed Drive, 0.75kW, 1-Phase
- Schneider Electric ATV320U07N4B — Altivar Machine ATV320 Variable Speed Drive 0.75kW 380-500V 3-Phase Book
- Schneider Electric ATV320U11M2B — Altivar Machine ATV320 variable speed drive 1.1kW 200-240V 1 phase book
- Schneider Electric ATV320U11M3C — Variable Speed Drive 1.1kW 200-240V 3-Phase Compact
Request a quote for ATV630D22N4
Specifications
- EMC filter
- Integrated EN/IEC 61800-3 category C2 50 m; category C3 150 m
- Line current
- 39.6 A 380 V normal duty / 34.1 A 380 V heavy duty
- Mounting mode
- Wall mount
- Apparent power
- 28.6 kVA 480 V normal duty / 24.9 kVA 480 V heavy duty
- Motor power hp
- 30 hp normal duty / 25 hp heavy duty
- Motor power kW
- 22 kW normal duty / 18.5 kW heavy duty
- Product weight
- 14.3 kg
- Safety function
- STO (safe torque off) SIL 3
- Output frequency
- 0.0001...0.5 kHz
- Range of product
- Altivar Process ATV600
- Supply frequency
- 50...60 Hz - 5...5 %
- Device short name
- ATV630
- Switching frequency
- 2...12 kHz adjustable
- Degree of protection
- UL type 1 UL 508C
- Dimensions (W x H x D)
- 211 mm x 546 mm x 232 mm
- IP degree of protection
- IP21 IEC 61800-5-1; IP21 IEC 60529
- Manufacturer part number
- ATV630D22N4
- Network number of phases
- 3 phases
- Continuous output current
- 46.3 A 4 kHz normal duty / 39.2 A 4 kHz heavy duty
- Maximum transient current
- 50.9 A 60 s normal duty / 58.8 A 60 s heavy duty
- Product or component type
- Variable speed drive
- [Us] rated supply voltage
- 380...480 V - 15...10 %
- Communication port protocol
- Ethernet, Modbus TCP, Modbus serial
- Ambient air temperature for operation
- -15...50 °C without derating
