ATV310HD22N4E

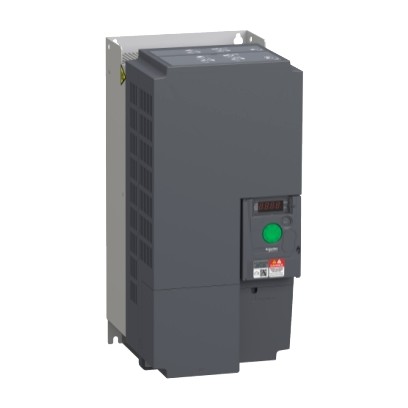

Schneider Electric ATV310HD22N4E Easy Altivar 310 Variable Speed Drive, Heavy Duty 22kW, Normal Duty 30kW, 380-460V. This Easy Altivar 310 drive is a frequency inverter for three-phase asynchronous motors. Its protection index is IP20. It works at a rated power up to HD 22kW /30HP or ND 30kW/40HP, and a rated voltage from 380V to 460V AC. Its compact size, robust design and ease of installation, based on the principle of plug and play and its integrated functions make it particularly suitable for applications involving industrial machines and certain consumer machines. It weighs 8.5kg and its dimensions are, 180mm wide, 390mm high, 212mm deep. This drive incorporates functions that are suitable for the most common applications, including textile machine, machine tools, wood making machine, material handling, packaging and printing machines, ceramic machine.
Details
- Brand: Schneider Electric
- Part number: ATV310HD22N4E
- Series: Easy Altivar 310
- Category: VFD
Related Schneider Electric parts
- Schneider Electric ATV310HD15N4EF — Easy Altivar 310 Variable Speed Drive, 15 kW Heavy Duty / 18.5 kW Normal Duty
- Schneider Electric ATV310HD22N4EF — Easy Altivar 310 Variable Speed Drive, Heavy Duty 22kW / Normal Duty 30kW, 380-460V
- Schneider Electric ATV310H037N4E — Easy Altivar 310 Variable Speed Drive, 0.37 kW, 380-460V, without EMC
- Schneider Electric ATV310HU15N4E — Easy Altivar 310 Variable Speed Drive 1.5 kW 380-460V
- Schneider Electric ATV310HD11N4E — Easy Altivar 310 Variable Speed Drive, 11kW Heavy Duty / 15kW Normal Duty, 380-460V
- Schneider Electric ATV310H075N4E — Easy Altivar 310 Variable Speed Drive 0.75kW
- Easy Altivar 310 Variable Speed Drive ATV310HU40N4E, 4kW/5hp Heavy Duty, 5.5kW/7.5hp Normal Duty
- Easy Altivar 310 Variable Speed Drive ATV310HU30N4E, 3kW/4hp Heavy Duty
- Schneider Electric ATV310HU75N4E — Easy Altivar 310 Variable Speed Drive, Heavy Duty 7.5kW, Normal Duty 11kW
- Schneider Electric ATV310HD15N4E — Easy Altivar 310 Variable Speed Drive 15 kW
- Schneider Electric ATV310HD18N4E — variable speed drive ATV310, 18.5 kW, 25 hp, 380...460 V, 3 phase, without filter
- Schneider Electric ATV340U07N4 — Altivar Machine ATV340 Variable Speed Drive 0.75kW
Request a quote for ATV310HD22N4E
Specifications
- EMC filter
- Without EMC filter
- Application
- Simple machine
- Noise level
- 50 dB
- Cooling type
- Integrated fan
- Assembly style
- With heat sink
- Output voltage
- 380-460 V three phase
- Tightening torque
- 2.2-2.4 N.m
- Rated supply voltage
- 380-460 V
- Analogue input number
- 1
- Discrete input number
- 4
- Main Range of product
- Easy Altivar 310
- Analogue output number
- 1
- Discrete output number
- 2
- Manufacturer part number
- ATV310HD22N4E
- Motor power (Heavy Duty)
- 22 kW (30 hp)
- Network number of phases
- Three phase
- Motor power (Normal Duty)
- 30 kW (40 hp)
- Product or component type
- Variable speed drive
- Communication port protocol
- Modbus
- Nominal switching frequency
- 4 kHz
- Speed drive output frequency
- 0.5-400 Hz
- Internal supply (logic inputs)
- 24 V DC, <100 mA
- Line current (heavy duty, 380V)
- 64.2 A
- Line current (normal duty, 380V)
- 71.2 A
- Continuous output current (Heavy Duty)
- 46 A
- Continuous output current (Normal Duty)
- 60 A
- Electrical connection clamping capacity
- 25-35 mm² (AWG 3-AWG 2)
- Minimum switching current (logic relay)
- 5 mA at 24 V DC
- Internal supply (reference potentiometer)
- 5 V DC, <10 mA
