ATV310HD15N4EF

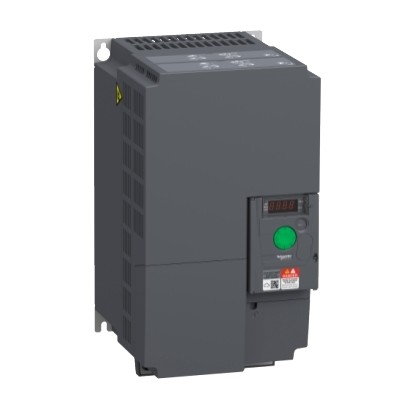

Schneider Electric ATV310HD15N4EF Easy Altivar 310 Variable Speed Drive, 15 kW Heavy Duty / 18.5 kW Normal Duty. This Easy Altivar 310 drive is a frequency inverter for three-phase asynchronous motors. Its protection index is IP20. It works at a rated power up to HD 15kW/20HP or ND 18.5KW/25HP, a rated voltage from 380V to 460V AC, and an integrated EMC filter category C3 with 25m/82ft shielded motor cable. Its compact size, robust design and ease of installation, based on the principle of plug and play and its integrated functions make it particularly suitable for applications involving industrial machines and certain consumer machines. It weighs 6.7kg and its dimensions are, 180mm wide, 330mm high, 191mm deep. This drive incorporates functions that are suitable for the most common applications, including textile machine, machine tools, wood making machine, material handling, packaging and printing machines, ceramic machine.
Details
- Brand: Schneider Electric
- Part number: ATV310HD15N4EF
- Series: Easy Altivar 310
- Category: VFD
Related Schneider Electric parts
- Schneider Electric ATV310HD22N4EF — Easy Altivar 310 Variable Speed Drive, Heavy Duty 22kW / Normal Duty 30kW, 380-460V
- Schneider Electric ATV310H037N4E — Easy Altivar 310 Variable Speed Drive, 0.37 kW, 380-460V, without EMC
- Schneider Electric ATV310HU15N4E — Easy Altivar 310 Variable Speed Drive 1.5 kW 380-460V
- Schneider Electric ATV310HD11N4E — Easy Altivar 310 Variable Speed Drive, 11kW Heavy Duty / 15kW Normal Duty, 380-460V
- Schneider Electric ATV310H075N4E — Easy Altivar 310 Variable Speed Drive 0.75kW
- Easy Altivar 310 Variable Speed Drive ATV310HU40N4E, 4kW/5hp Heavy Duty, 5.5kW/7.5hp Normal Duty
- Easy Altivar 310 Variable Speed Drive ATV310HU30N4E, 3kW/4hp Heavy Duty
- Schneider Electric ATV310HU75N4E — Easy Altivar 310 Variable Speed Drive, Heavy Duty 7.5kW, Normal Duty 11kW
- Schneider Electric ATV310HD15N4E — Easy Altivar 310 Variable Speed Drive 15 kW
- Schneider Electric ATV310HD18N4E — variable speed drive ATV310, 18.5 kW, 25 hp, 380...460 V, 3 phase, without filter
- Schneider Electric ATV310HD22N4E — Easy Altivar 310 Variable Speed Drive, Heavy Duty 22kW, Normal Duty 30kW, 380-460V
- Schneider Electric ATV340U07N4 — Altivar Machine ATV340 Variable Speed Drive 0.75kW
Request a quote for ATV310HD15N4EF
Specifications
- EMC filter
- Integrated
- Noise level
- 50 dB
- Type of cooling
- Integrated fan
- Power dissipation
- 416.0 W (Heavy Duty), 451.7 W (Normal Duty)
- Rated supply voltage
- 380...460 V
- Analogue input number
- 1
- Discrete input number
- 4
- Analogue output number
- 1
- Discrete output number
- 2
- Manufacturer part number
- ATV310HD15N4EF
- Motor power (Heavy Duty)
- 15 kW
- Network number of phases
- Three phase
- Motor power (Normal Duty)
- 18.5 kW
- Communication port protocol
- Modbus
- Nominal switching frequency
- 4 kHz
- Motor power (Heavy Duty, hp)
- 20 hp
- Speed drive output frequency
- 0.5…400 Hz
- Motor power (Normal Duty, hp)
- 25 hp
- Line current (Heavy Duty, 380V)
- 46.5 A
- Line current (Heavy Duty, 460V)
- 38.5 A
- Line current (Normal Duty, 380V)
- 46.6 A
- Line current (Normal Duty, 460V)
- 38.8 A
- Apparent power (Heavy Duty, 460V)
- 30.7 kVA
- Prospective line Isc (Heavy Duty)
- 22 kA
- Apparent power (Normal Duty, 460V)
- 31.2 kVA
- Prospective line Isc (Normal Duty)
- 5 kA
- Continuous output current (Heavy Duty)
- 33 A
- Maximum transient current (Heavy Duty)
- 49.5 A during 60 s
- Continuous output current (Normal Duty)
- 36 A
- Maximum transient current (Normal Duty)
- 39.6 A during 60 s
