ATV310HD11N4E

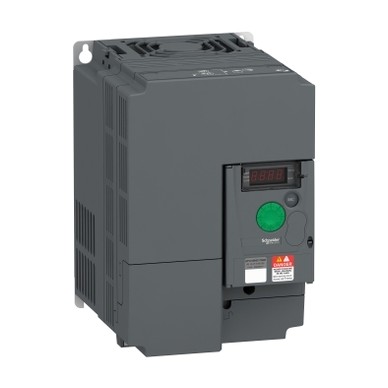

Schneider Electric ATV310HD11N4E Easy Altivar 310 Variable Speed Drive, 11kW Heavy Duty / 15kW Normal Duty, 380-460V. This Easy Altivar 310 drive is a frequency inverter for three-phase asynchronous motors. Its protection index is IP20. It works at a rated power up to HD 11kW/15HP or ND 15kW/20HP, and a rated voltage from 380V to 460V AC. Its compact size, robust design and ease of installation, based on the principle of plug and play and its integrated functions make it particularly suitable for applications involving industrial machines and certain consumer machines. It offers high readability of key parameters thanks to a bright LED 4-digit display. Underload and overload detection help to protect your installation. It weighs 3.7kg and its dimensions are, 150mm wide, 232mm high, 171mm deep. This drive incorporates functions that are suitable for the most common applications, including textile machine, machine tools, wood making machine, material handling, packaging and printing machines, ceramic machine.
Details
- Brand: Schneider Electric
- Part number: ATV310HD11N4E
- Series: Easy Altivar 310
- Category: VFD
Related Schneider Electric parts
- Schneider Electric ATV310H075N4E — Easy Altivar 310 Variable Speed Drive 0.75kW
- Easy Altivar 310 Variable Speed Drive ATV310HU40N4E, 4kW/5hp Heavy Duty, 5.5kW/7.5hp Normal Duty
- Easy Altivar 310 Variable Speed Drive ATV310HU30N4E, 3kW/4hp Heavy Duty
- Schneider Electric ATV310HU75N4E — Easy Altivar 310 Variable Speed Drive, Heavy Duty 7.5kW, Normal Duty 11kW
- Schneider Electric ATV310HD15N4E — Easy Altivar 310 Variable Speed Drive 15 kW
- Schneider Electric ATV310HD18N4E — variable speed drive ATV310, 18.5 kW, 25 hp, 380...460 V, 3 phase, without filter
- Schneider Electric ATV310HD22N4E — Easy Altivar 310 Variable Speed Drive, Heavy Duty 22kW, Normal Duty 30kW, 380-460V
- Schneider Electric ATV310HD15N4EF — Easy Altivar 310 Variable Speed Drive, 15 kW Heavy Duty / 18.5 kW Normal Duty
- Schneider Electric ATV310HD22N4EF — Easy Altivar 310 Variable Speed Drive, Heavy Duty 22kW / Normal Duty 30kW, 380-460V
- Schneider Electric ATV310H037N4E — Easy Altivar 310 Variable Speed Drive, 0.37 kW, 380-460V, without EMC
- Schneider Electric ATV310HU15N4E — Easy Altivar 310 Variable Speed Drive 1.5 kW 380-460V
- Schneider Electric ATV340U07N4 — Altivar Machine ATV340 Variable Speed Drive 0.75kW
Request a quote for ATV310HD11N4E
Specifications
- Phases
- Three phase
- EMC filter
- Without
- Noise level
- 50 dB
- Output voltage
- 380...460 V three phase
- Output frequency
- 0.5...400 Hz
- Switching frequency
- 2...12 kHz adjustable
- Rated supply voltage
- 380...460 V
- Communication protocol
- Modbus
- Manufacturer part number
- ATV310HD11N4E
- Motor power (heavy duty)
- 11 kW / 15 hp
- Motor power (normal duty)
- 15 kW / 20 hp
- Number of analogue inputs
- 1
- Number of discrete inputs
- 4
- Number of analogue outputs
- 1
- Number of discrete outputs
- 2
- Nominal switching frequency
- 4 kHz
- Power dissipation (heavy duty)
- 337.1 W
- Power dissipation (normal duty)
- 407.0 W
- Speed range (asynchronous motor)
- 1…20
- Prospective line Isc (heavy duty)
- 22 kA
- Prospective line Isc (normal duty)
- 5 kA
- Continuous output current (heavy duty)
- 24 A
- Continuous output current (normal duty)
- 30 A
