ATV212WU55N4C

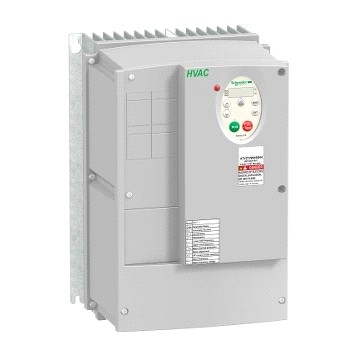

Schneider Electric ATV212WU55N4C variable speed drive ATV212 - 5.5kW - 7.5hp - 480V - 3ph - EMC class C1 - IP55. This Altivar 212 variable speed drive can feed 3-phase asynchronous motors. Its protection index is IP55 and it has a built-in EMC filter. It works at a rated power up to 5.5kW / 7.5hp and a rated voltage from 380V to 480V AC. Its design is based on eco-energy with a reduction in energy consumption of up to 70% compared to a conventional control system. Thanks to its cable temperature rise reduction technology, the Altivar 212 drive offers immediate, disturbance-free operation avoiding additional options such as a line choke or DC choke to deal with current harmonics. It weighs 10.55kg and its dimensions are, 230mm wide, 340mm high, 208mm deep. It is specifically designed for the most common fluid management applications in tertiary sector buildings (HVAC) like heating, ventilation, air conditioning and pumping. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions). It is also CE, UL, CSA, C-Tick and NOM certified. The Altivar 212 offers optional motor chokes which can increase the maximum cable lengths between the drive and the motor and limit disturbance at the motor terminals. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. The Altivar 212 drive can easily be adapted to all building management systems thanks to its numerous functions and communication protocols integrated as standard, Modbus, METASYS N2, APOGEE FLN P1 and BACnet. It is eco-friendly and complies with directives such as RoHS, WEEE, etc.relating to environmental protection.
Details
- Brand: Schneider Electric
- Part number: ATV212WU55N4C
- Series: Altivar 212
- Category: VFD
Related Schneider Electric parts
- Schneider Electric ATV212WD30N4 — Altivar 212 Variable Speed Drive 30kW 40hp 480V 3ph EMC C2 IP55
- Schneider Electric ATV212WD45N4 — variable speed drive ATV212 - 45kW - 60hp - 480V - 3ph - EMC class C2 - IP55
- Schneider Electric ATV212WU40N4C — Altivar 212 Variable Speed Drive, 4kW, 5hp, 480V, 3-phase, EMC C1, IP55
- Schneider Electric ATV212WD11N4C — Altivar 212 Variable Speed Drive 11 kW 480V IP55
- Schneider Electric ATV212WD22N4C — Altivar 212 Variable Speed Drive 22kW, 480V, 3-phase, IP55, EMC Class C1
- Schneider Electric ATV212WD75N4C — Variable Speed Drive ATV212 - 75kW - 100hp - 480V - 3ph - EMC class C1 - IP55
- Schneider Electric ATV212WD18N4C — variable speed drive ATV212 - 18.5kW - 25hp - 480V - 3ph - EMC class C1 - IP55
- Schneider Electric ATV212WD30N4C — variable speed drive ATV212 - 30kW - 40hp - 480V - 3ph - EMC class C1 - IP55
- Schneider Electric ATV212WD37N4C — Altivar 212 Variable Speed Drive 37kW 50hp 480V 3ph IP55
- Schneider Electric ATV212WD45N4C — Altivar 212 Variable Speed Drive 45kW 60hp 480V 3ph EMC Class C1 IP55
- Altivar 212 Variable Speed Drive ATV212WU75N4C for 7.5kW, 480V 3-phase
- Schneider Electric ATV212H075N4 — Altivar 212 Variable Speed Drive 0.75kW 1hp
Request a quote for ATV212WU55N4C
Specifications
- Phases
- 3
- IP Rating
- IP55
- Motor Power
- 5.5 kW
- EMC Filter Class
- C1
- Motor Horsepower
- 7.5 hp
- Rated Output Current
- 12 A
- Rated Supply Voltage
- 380...480 V
- Output Frequency Range
- 0.5...200 Hz
- Manufacturer part number
- ATV212WU55N4C
- Nominal Switching Frequency
- 12 kHz
