ATV212WD22N4C

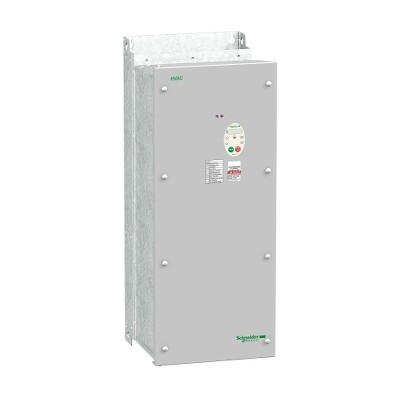

Schneider Electric ATV212WD22N4C Altivar 212 Variable Speed Drive 22kW, 480V, 3-phase, IP55, EMC Class C1. This Altivar 212 variable speed drive can feed 3-phase asynchronous motors. Its protection index is IP55 and it has a built-in EMC filter.
Details
- Brand: Schneider Electric
- Part number: ATV212WD22N4C
- Series: Altivar 212
- Category: VFD
Related Schneider Electric parts
- Schneider Electric ATV212WD75N4C — Variable Speed Drive ATV212 - 75kW - 100hp - 480V - 3ph - EMC class C1 - IP55
- Schneider Electric ATV212WD18N4C — variable speed drive ATV212 - 18.5kW - 25hp - 480V - 3ph - EMC class C1 - IP55
- Schneider Electric ATV212WD30N4C — variable speed drive ATV212 - 30kW - 40hp - 480V - 3ph - EMC class C1 - IP55
- Schneider Electric ATV212WD37N4C — Altivar 212 Variable Speed Drive 37kW 50hp 480V 3ph IP55
- Schneider Electric ATV212WD45N4C — Altivar 212 Variable Speed Drive 45kW 60hp 480V 3ph EMC Class C1 IP55
- Altivar 212 Variable Speed Drive ATV212WU75N4C for 7.5kW, 480V 3-phase
- Schneider Electric ATV212H075N4 — Altivar 212 Variable Speed Drive 0.75kW 1hp
- Schneider Electric ATV212HU22N4 — Altivar 212 Variable Speed Drive 2.2kW 3hp
- Altivar 212 Variable Speed Drive ATV212HU30N4, 3kW, 480V, 3-Phase, EMC, IP21
- Schneider Electric ATV212HU55N4 — Variable Speed Drive ATV212 5.5 kW 7.5 hp
- Schneider Electric ATV212HU15N4 — Variable speed drive ATV212 - 1.5kW - 2hp - 480V - 3ph - EMC - IP21
- Schneider Electric ATV212HU40N4 — Altivar 212 Variable Speed Drive
Request a quote for ATV212WD22N4C
Specifications
- Phases
- 3
- IP rating
- IP55
- Motor power
- 22 kW / 30 hp
- Speed range
- 1…10
- Line current
- 33.1 A (at 480 V)
- Apparent power
- 33.2 kVA (at 380 V)
- EMC filter class
- C1
- Supply frequency
- 50...60 Hz
- Rated supply voltage
- 380...480 V
- Supply voltage limits
- 323…528 V
- Output frequency range
- 0.5…200 Hz
- Manufacturer part number
- ATV212WD22N4C
- Continuous output current
- 43.5 A (at 380 V)
- Maximum transient current
- 47.9 A for 60 s
