ATV212WD30N4C

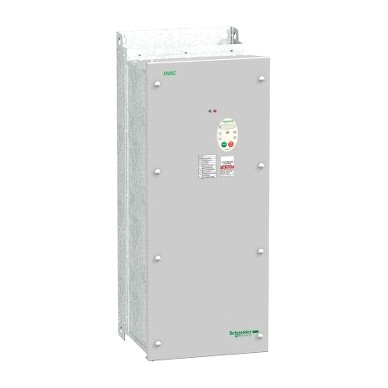

Schneider Electric ATV212WD30N4C — VFD

Schneider Electric ATV212WD30N4C variable speed drive ATV212 - 30kW - 40hp - 480V - 3ph - EMC class C1 - IP55. This Altivar 212 variable speed drive can feed 3-phase asynchronous motors. Its protection index is IP55 and it has a built-in EMC filter. It works at a rated power up to 30kW / 40hp and a rated voltage from 380V to 480V AC. Its design is based on eco-energy with a reduction in energy consumption of up to 70% compared to a conventional control system. Thanks to its cable temperature rise reduction technology, the Altivar 212 drive offers immediate, disturbance-free operation avoiding additional options such as a line choke or DC choke to deal with current harmonics. It weighs 58.5kg and its dimensions are, 284mm wide, 720mm high, 315mm deep. It is specifically designed for the most common fluid management applications in tertiary sector buildings (HVAC) like heating, ventilation, air conditioning and pumping. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions). It is also CE, UL, CSA, C-Tick and NOM certified. The Altivar 212 offers optional motor chokes which can increase the maximum cable lengths between the drive and the motor and limit disturbance at the motor terminals. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. The Altivar 212 drive can easily be adapted to all building management systems thanks to its numerous functions and communication protocols integrated as standard, Modbus, METASYS N2, APOGEE FLN P1 and BACnet.

Details

Related Schneider Electric parts

Request a quote for ATV212WD30N4C

Specifications

IP rating
IP55
EMC filter
Class C1
Rated power
30 kW
Number of phases
3
Supply frequency
50...60 Hz
Rated supply voltage
380...480 V
Manufacturer part number
ATV212WD30N4C
Continuous output current
58.5 A
