ATV212HU40N4

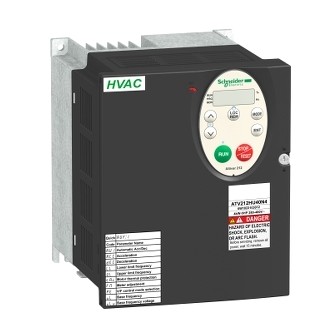

Schneider Electric ATV212HU40N4 Altivar 212 Variable Speed Drive. This Altivar 212 variable speed drive can feed 3-phase asynchronous motors. Its protection index is IP21 and it has a built-in EMC filter. It works at a rated power up to 4kW / 5hp and a rated voltage from 380V to 480V AC. Its design is based on eco-energy with a reduction in energy consumption of up to 70% compared to a conventional control system. Thanks to its cable temperature rise reduction technology, the Altivar 212 drive offers immediate, disturbance-free operation avoiding additional options such as a line choke or DC choke to deal with current harmonics. It weighs 3.35kg and its dimensions are, 142mm wide, 184mm high, 150mm deep. It is specifically designed for the most common fluid management applications in tertiary sector buildings (HVAC) like heating, ventilation, air conditioning and pumping. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions). It is also CE, UL, CSA, C-Tick and NOM certified. The Altivar 212 offers optional motor chokes which can increase the maximum cable lengths between the drive and the motor and limit disturbance at the motor terminals. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. The Altivar 212 drive can easily be adapted to all building management systems thanks to its numerous functions and communication protocols integrated as standard, Modbus, METASYS N2, APOGEE FLN P1 and BACnet. It is eco-friendly and complies with directives such as RoHS, WEEE, etc.relating to environmental protection.
Details
- Brand: Schneider Electric
- Part number: ATV212HU40N4
- Series: Altivar 212
- Category: Variable Frequency Drive
Related Schneider Electric parts
- Schneider Electric ATV212HU75N4 — Altivar 212 Variable Speed Drive 7.5 kW 10 Hp 480V 3ph EMC IP21
- Schneider Electric ATV212HD15N4 — Altivar 212 Variable Speed Drive 15kW 480V 3 Phases
- Schneider Electric ATV212HD11N4 — Altivar 212 Variable Speed Drive ATV212 - 11kW - 15hp - 480V - 3ph - EMC - IP21
- ATV212HD18N4 Variable Speed Drive, 18.5kW, 480V, 3-Phase, IP21
- Schneider Electric ATV212HD75N4 — Altivar 212 Variable Speed Drive, 75kW, 480V, 3-Phase
- Schneider Electric ATV212HD22N4 — variable speed drive ATV212 - 22kW - 30hp - 480V - 3ph - EMC - IP21
- Schneider Electric ATV212HD30N4 — Variable Speed Drive ATV212 - 30kW - 40hp - 480V - 3ph - EMC - IP21
- Altivar 212 Variable Speed Drive ATV212HD37N4 - 37kW 50hp
- Schneider Electric ATV212HD45N4 — Variable Speed Drive Altivar 212 45kW 60hp 480V 3 Phases with EMC IP21
- Schneider Electric ATV212W075N4 — Variable speed drive ATV212 - 0.75kW - 1hp - 480V - 3ph - EMC class C2 - IP55
- Schneider Electric ATV212WU22N4 — ATV212 Variable Speed Drive 2.2kW 3hp 480V 3-phase IP55
- Schneider Electric ATV212WU40N4 — variable speed drive ATV212 - 4kW - 5hp - 480V - 3ph - EMC class C2 - IP55
Request a quote for ATV212HU40N4
Specifications
- EMC filter
- Class C2 integrated
- Line current
- 6.4 A at 480 V
- Motor power hp
- 5 hp
- Motor power kW
- 4 kW
- Supply frequency
- 50...60 Hz
- Rated supply voltage
- 380...480 V
- IP degree of protection
- IP21
- Manufacturer part number
- ATV212HU40N4
- Network number of phases
- 3 phases
- Continuous output current
- 9.1 A
- Maximum transient current
- 10 A for 60 s
- Communication port protocol
- METASYS N2, BACnet, APOGEE FLN, Modbus, LonWorks
- Speed drive output frequency
- 0.5…200 Hz
