A9F79225

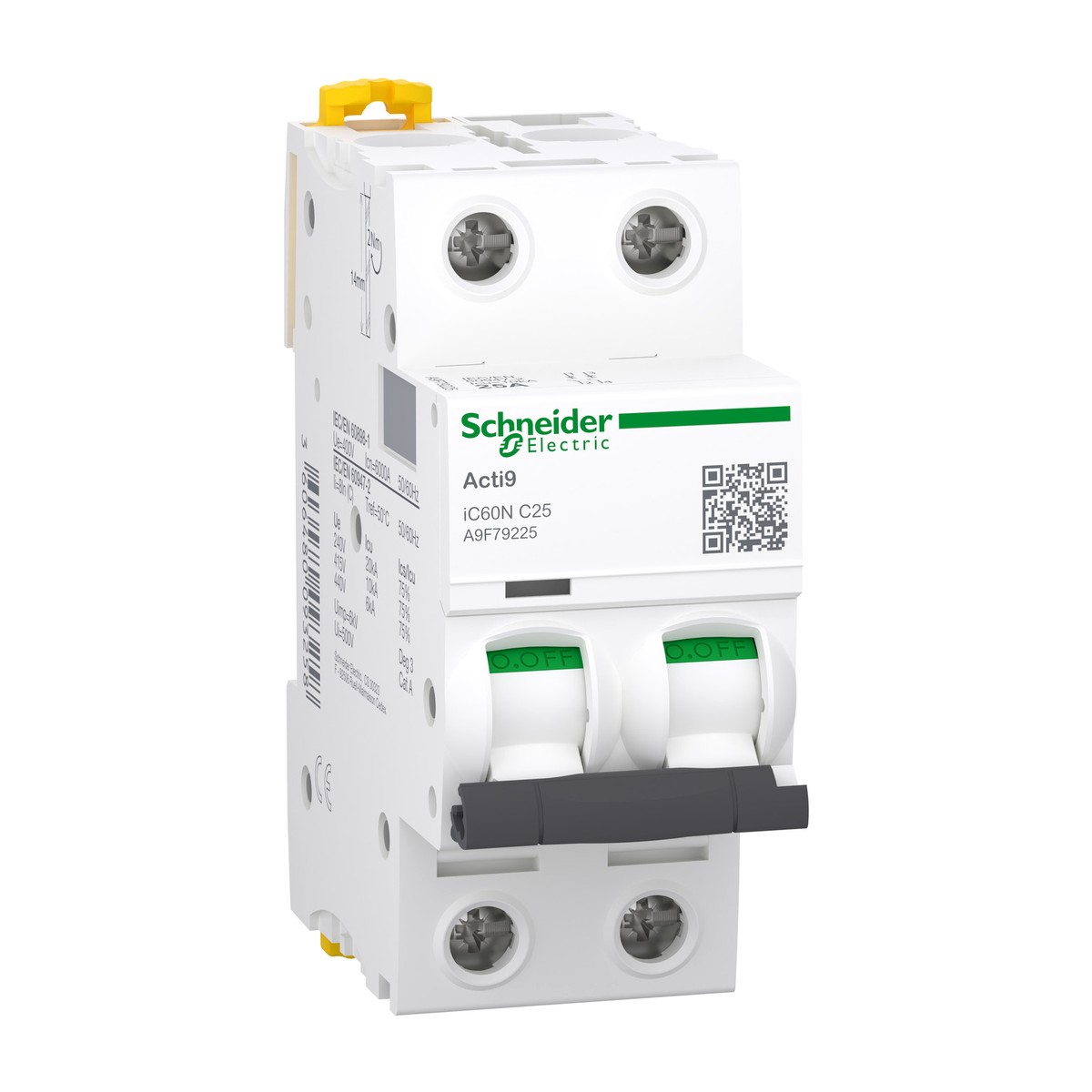

Schneider Electric A9F79225 DIN-rail Miniature Circuit Breaker 2P 25A C curve. The Schneider Electric A9F79225 is a robust DIN-rail miniature circuit breaker from the Acti9 iC60N series, engineered for reliable protection in final distribution circuits. This 2-pole, 25A MCB features a C-curve thermal-magnetic trip unit, ensuring effective overcurrent and short-circuit protection for both AC and DC networks. It boasts a 6000A breaking capacity conforming to IEC/EN 60898-1 at 400V AC and a 10kA breaking capacity conforming to IEC/EN 60947-2 at 380-415V AC, making it suitable for demanding environments. Designed for 35mm DIN rail mounting, the Schneider Electric A9F79225 offers versatile operational voltages from 12V AC/DC up to 440V AC and 125V DC, with a wide operating temperature range of -35 to 70 °C. Its IP20 protection (IP40 in a modular enclosure) and terminal capacity for rigid cables up to 25mm² provide durability and ease of installation. This product is essential for safeguarding electrical circuits in various industrial and commercial settings across Egypt and the Gulf region, including critical infrastructure within cement plants, oil and gas facilities, water treatment stations, food and beverage processing, and building services.
Details
- Brand: Schneider Electric
- Part number: A9F79225
- Series: Acti9 iC60N
- Category: Miniature Circuit Breaker
Related Schneider Electric parts
- Schneider Electric A9F73104 — Disjuntor Acti9 IC60N 1P, 4A, Curva B, 50kA em 220/240VCA (60947-2)
- Schneider Electric A9F73106 — Disjuntor Acti9 IC60N 1P, 6A, Curva B, 10kA em 220/240VCA (60947-2)
- Schneider Electric A9F73116 — Disjuntor Acti9 IC60N 1P, 16A, Curva B, 10kA em 220/240VCA (60947-2)
- Schneider Electric A9F73125 — Disjuntor Acti9 IC60N 1P, 25A, Curva B, 10kA em 220/240VCA (60947-2)
- Schneider Electric A9F74163 — Disjuntor Acti9 IC60N 1P, 63A, Curva C, 10kA em 220/240VCA (60947-2)
- Schneider Electric A9F74170 — Disjuntor Acti9 IC60N 1P, 0.5A, Curva C, 50kA em 220/240VCA (60947-2)
- Schneider Electric A9F73201 — Disjuntor Acti9 IC60N 2P, 1A, Curva B, 50kA em 220/240VCA (60947-2)
- Acti9 iC60N A9F74116 1-pole 16 A C-curve miniature circuit breaker
- Acti9 iC60N A9F74320 3-pole 20 A C-curve miniature circuit breaker
- Acti9 iC60N A9F74363 3-pole 63 A C-curve miniature circuit breaker
- Schneider Electric A9F74425 — Miniature Circuit Breaker (MCB) 4P 25A C-Curve
- Schneider Electric A9F77140 — Miniature Circuit Breaker Acti9 iC60N 1P 40A C-Curve
Specifications
- Standards
- EN/IEC 60947-2, EN/IEC 60898-1
- Curve Code
- C
- Net Weight
- 0.25 Kg
- Network Type
- AC, DC
- Mounting Support
- 35 mm DIN rail
- Poles Description
- 2P
- Terminal Capacity
- 1…25 mm² rigid, 1…16 mm² flexible
- Tightening Torque
- 2 N.M top or bottom
- Rated Current [In]
- 25 A
- Trip Unit Technology
- Thermal-magnetic
- Operating Temperature
- -35…70 °C
- Dimensions (H x W x D)
- 85 Mm x 36 Mm x 78.5 Mm
- IP Degree of Protection
- IP20 conforming to IEC 60529, IP40 in modular enclosure (Insulation class II) conforming to IEC 60529
- Manufacturer part number
- A9F79225
- Number of Protected Poles
- 2
- Suitability for Isolation
- Yes
- Rated Operational Voltage [Ue]
- 12...133 V AC 50/60 Hz, 220...240 V AC 50/60 Hz, 380...415 V AC 50/60 Hz, 440 V AC 50/60 Hz, <= 125 V DC
- Breaking Capacity (IEC/EN 60898-1)
- 6000 A Icn at 400 V AC 50/60 Hz
- Breaking Capacity (IEC/EN 60947-2)
- 10 KA Icu at 380...415 V AC 50/60 Hz
