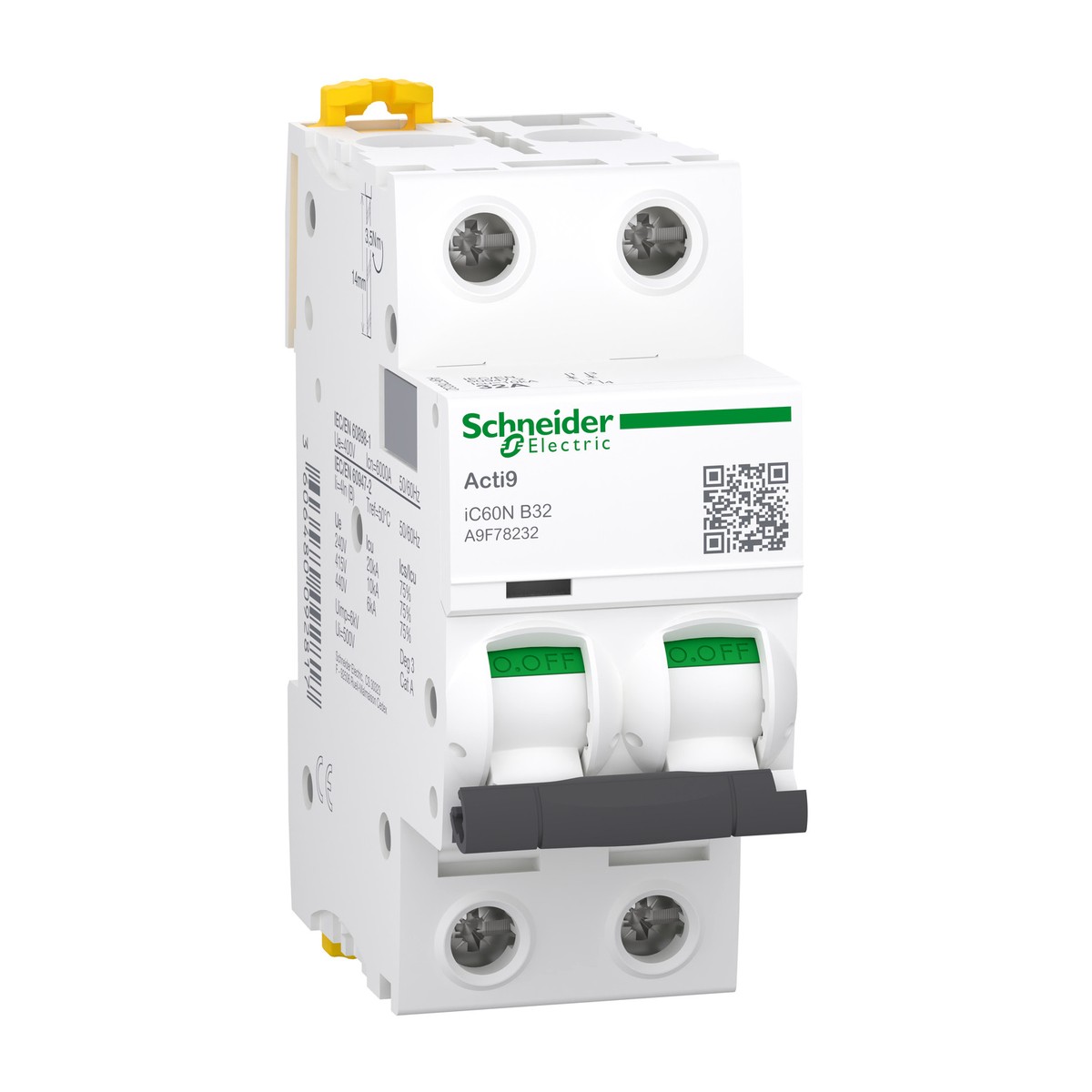

Schneider Electric A9F78232 Miniature Circuit Breaker iC60N 2P 32A B-curve. The Schneider Electric A9F78232 is a robust Miniature Circuit Breaker (MCB) from the Acti9 iC60 series, engineered for reliable protection of final distribution circuits. This 2-pole (2P) MCB is rated at 32 A with a B-curve trip characteristic, making it ideal for general-purpose applications against overcurrents and short circuits. It offers versatile compatibility with both AC and DC networks, supporting a wide range of operational voltages including 220-240 V AC and 380-415 V AC at 50/60 Hz, crucial for installations in Egypt and the Gulf. With impressive breaking capacities of 6000 A conforming to EN/IEC 60898-1 and 10 kA conforming to EN/IEC 60947-2, it ensures high safety standards. Designed for easy DIN-rail mounting, its thermal-magnetic trip unit provides dependable protection. This component is essential in various industrial and commercial settings, from building services and water treatment plants to oil and gas, cement, and food and beverage facilities across the region.
Details
- Brand: Schneider Electric
- Part number: A9F78232
- Series: Acti9 iC60
- Category: Miniature Circuit Breaker
Related Schneider Electric parts
- Schneider Electric A9F78240 — Acti9 iC60N Miniature Circuit Breaker 2P 40A B Curve
- Schneider Electric A9F78306 — Acti9 iC60N Miniature Circuit Breaker 3P 6A B-curve
- Schneider Electric A9F78310 — Acti9 iC60N Miniature Circuit Breaker, 3P, 10A, B-Curve
- Schneider Electric A9F78316 — Miniature Circuit Breaker Acti9 iC60N 3P 16A B-Curve
- Schneider Electric A9F78350 — Miniature Circuit Breaker (MCB), iC60N, 3P, 50A, B Curve
- Schneider Electric A9F78363 — Miniature Circuit Breaker, 3P, 63A, B Curve, 6000A/10kA
- Schneider Electric A9F78416 — Acti9 iC60N 4P 16A B-curve MCB
- Schneider Electric A9F78425 — Miniature Circuit Breaker (MCB) Acti9 iC60N 4P 25A B-curve
- Schneider Electric A9F78432 — Miniature Circuit Breaker MCB Acti9 iC60N 4P 32A B-curve
- Schneider Electric A9F79106 — Miniature Circuit Breaker iC60N 1P 6A C-Curve
- Schneider Electric A9F79110 — Acti9 iC60N Miniature Circuit Breaker 1P 10A C-Curve
- Schneider Electric A9F79140 — Acti9 iC60N Miniature Circuit Breaker 1P 40A C Curve
Specifications
- Depth
- 78.5 mm
- Width
- 36 mm
- Height
- 85 mm
- Curve code
- B
- Network type
- AC, DC
- Product type
- Miniature circuit-breaker
- Mounting support
- 35 mm DIN rail
- Network frequency
- 50/60 Hz
- Poles description
- 2P
- Rated current [In]
- 32 A
- Trip unit technology
- Thermal-magnetic
- Connections - terminals
- Single terminal (top or bottom) , for 1 cable(s) , 1…35 mm², rigid, copper
- IP degree of protection
- IP20, IP40 in modular enclosure (Insulation class II)
- Manufacturer part number
- A9F78232
- Number of protected poles
- 2
- Suitability for isolation
- Yes
- Rated operational voltage [Ue]
- 12...133 V AC 50/60 Hz, 220...240 V AC 50/60 Hz, 380...415 V AC 50/60 Hz, 440 V AC 50/60 Hz, <= 125 V DC
- Breaking capacity (IEC/EN 60898-1)
- 6000 A Icn at 400 V AC 50/60 Hz
- Breaking capacity (IEC/EN 60947-2)
- 10 KA Icu at 380...415 V AC 50/60 Hz
- Ambient air temperature for operation
- -35…70 °C
