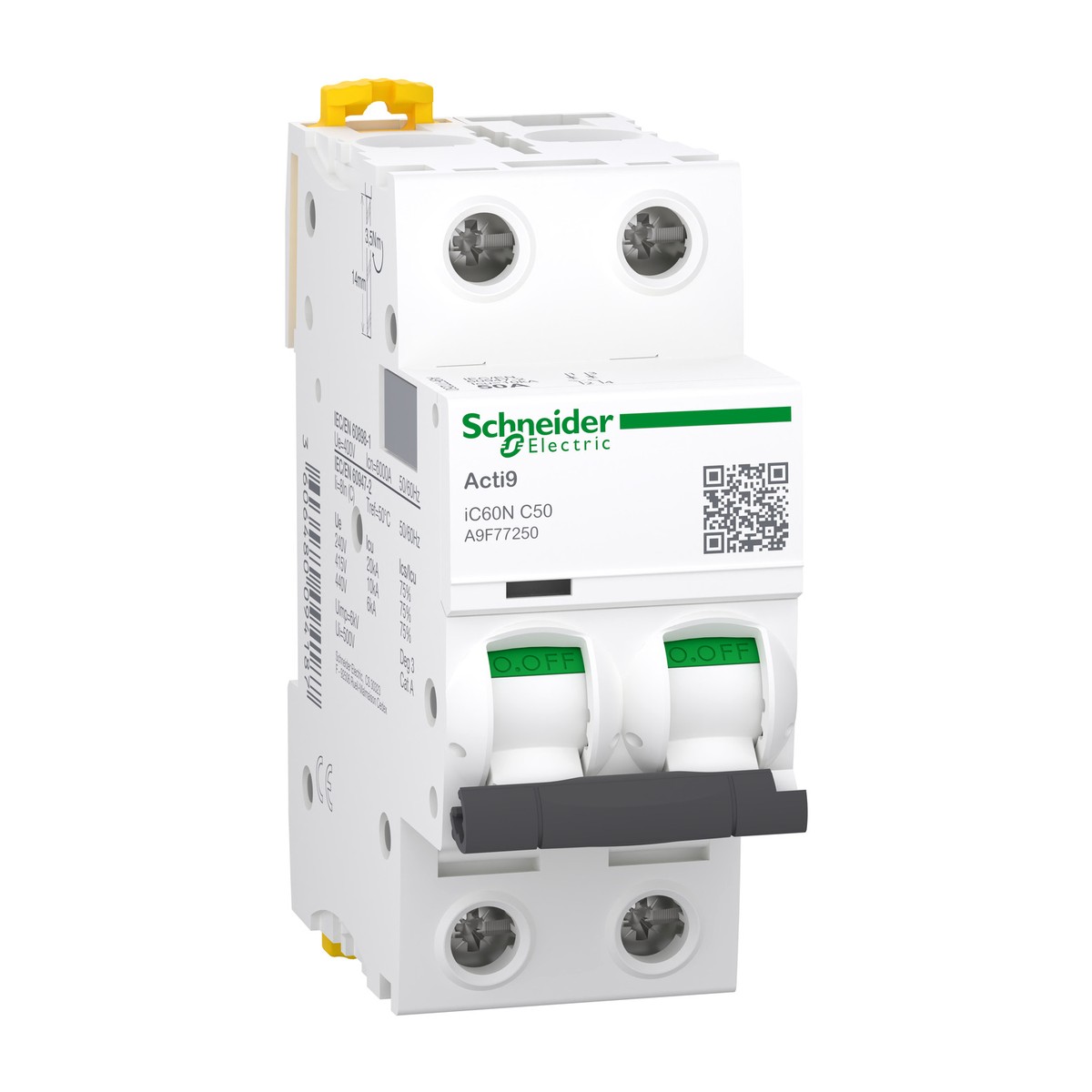

Schneider Electric A9F77250 Acti9 iC60N Miniature Circuit Breaker 2P 50A C-curve. The Schneider Electric A9F77250 Acti9 iC60N is a high-performance 2-pole Miniature Circuit Breaker (MCB) engineered for reliable circuit protection in diverse distribution applications. This robust device features a 50A rated current and a C-curve thermal-magnetic trip unit, effectively safeguarding electrical circuits against overcurrents and short circuits. It offers significant breaking capacities, including 6000A Icn at 400 V AC (IEC/EN 60898-1) and 10KA Icu at 380-415 V AC (IEC/EN 60947-2), supporting both AC and DC networks up to 125V. Designed for easy installation, the A9F77250 clips onto a standard 35 mm DIN rail and operates reliably across a wide ambient temperature range of -35 to 70 °C. Its IP20 protection degree and inherent isolation suitability further enhance operational safety and versatility. This Schneider Electric MCB is ideal for critical final distribution circuits within industrial and commercial settings across Egypt and the Gulf region, including applications in cement plants, oil and gas facilities, water treatment plants, food and beverage processing, textiles, and general building services.
Details
- Brand: Schneider Electric
- Part number: A9F77250
- Series: Acti9 iC60
- Category: Miniature Circuit Breaker
Related Schneider Electric parts
- Schneider Electric A9F77263 — Acti9 iC60N Miniature Circuit Breaker 2P 63A C-Curve
- Schneider Electric A9F77306 — Miniature Circuit Breaker, Acti9 iC60N, 3P, 6A, C curve
- Schneider Electric A9F77316 — Miniature Circuit Breaker Acti9 iC60N 3P 16A C-curve
- Schneider Electric A9F77320 — Miniature Circuit Breaker (MCB) Acti9 iC60N 3P 20A C curve
- Schneider Electric A9F77340 — Miniature circuit breaker iC60N 3P 40A C curve
- Schneider Electric A9F77363 — Miniature circuit breaker (MCB), Acti9 iC60N, 3P, 63A, C curve, 6000A (IEC/EN 60898-1), 10kA (IEC/EN 60947-2)
- Schneider Electric A9F77410 — Miniature circuit breaker (MCB), Acti9 iC60N, 4P, 10A, C curve
- Schneider Electric A9F77416 — Acti9 iC60N Miniature circuit breaker 4P 16A C curve
- Schneider Electric A9F77420 — Miniature Circuit Breaker Acti9 iC60N 4P 20A C-Curve
- Schneider Electric A9F77425 — Miniature Circuit Breaker, Acti9 iC60N, 4P, 25A, C-Curve
- Schneider Electric A9F77440 — Miniature Circuit Breaker (MCB) Acti9 iC60N 4P 40A C-Curve
- Schneider Electric A9F77450 — Miniature Circuit Breaker iC60N 4P 50A C Curve
Specifications
- Depth
- 78.5 Mm
- Width
- 36 Mm
- Height
- 85 Mm
- Curve code
- C
- Net weight
- 0.25 Kg
- Network type
- AC, DC
- Mounting support
- 35 mm DIN rail
- Network frequency
- 50/60 Hz
- Poles description
- 2P
- [In] rated current
- 50 A
- Trip unit technology
- Thermal-magnetic
- Electrical durability
- 10000 Cycles
- Mechanical durability
- 20000 Cycles
- IP degree of protection
- IP20 conforming to IEC 60529
- Manufacturer part number
- A9F77250
- Suitability for isolation
- Yes
- [Ue] rated operational voltage AC
- 12...133 V, 220...240 V, 380...415 V, 440 V AC 50/60 Hz
- [Ue] rated operational voltage DC
- <= 125 V DC
- Breaking capacity (IEC/EN 60898-1)
- 6000 A Icn at 400 V AC 50/60 Hz
- Breaking capacity (IEC/EN 60947-2)
- 10 KA Icu at 380-415 V AC 50/60 Hz
- Ambient air temperature for operation
- -35…70 °C
