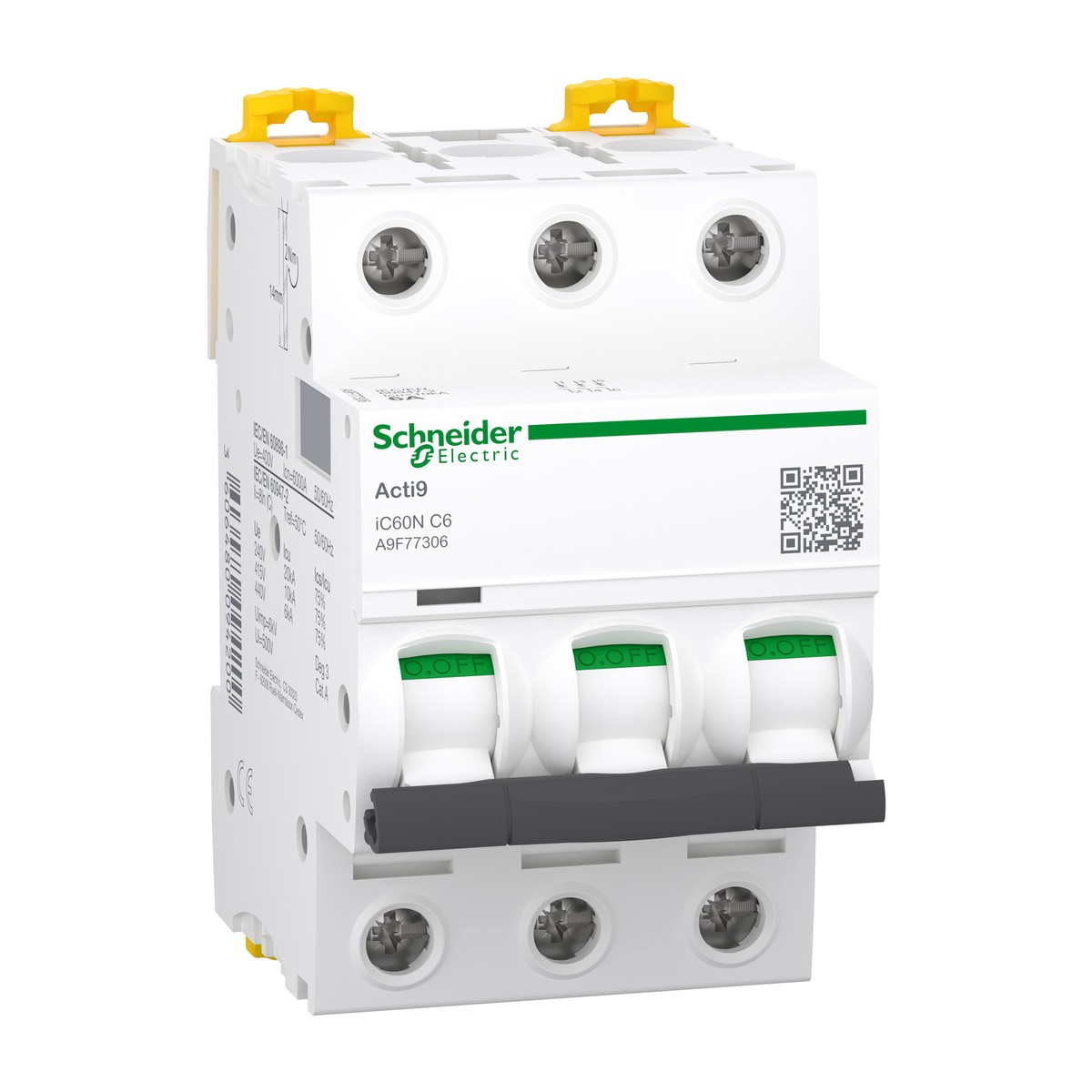

Schneider Electric A9F77306 Miniature Circuit Breaker, Acti9 iC60N, 3P, 6A, C curve. The Schneider Electric A9F77306 is an Acti9 iC60N Miniature Circuit Breaker (MCB) designed for reliable protection in final distribution circuits. This 3-pole, 6A MCB features a C-curve trip characteristic, making it suitable for a wide range of applications. It offers versatile network compatibility, operating with both AC and DC systems at 50/60 Hz frequencies, and supporting operational voltages from 12V to 440V AC and up to 180V DC. Key specifications include a breaking capacity of 6000A Icn at 400V AC (conforming to IEC/EN 60898-1) and 10kA Icu at 380-415V AC (conforming to IEC/EN 60947-2), ensuring robust fault protection. Engineered for straightforward installation, it mounts easily on a 35 mm DIN rail and offers IP20 protection. The A9F77306 is ideal for safeguarding electrical installations in various industries across Egypt and the Gulf, including critical infrastructure in oil and gas, water treatment, cement, food and beverage, textiles, and building services, where dependable thermal-magnetic circuit protection is essential. For further details or to request a quote for this high-performance Schneider Electric MCB, please contact us.
Details
- Brand: Schneider Electric
- Part number: A9F77306
- Series: Acti9 iC60
- Category: Miniature Circuit Breaker
Related Schneider Electric parts
- Schneider Electric A9F77316 — Miniature Circuit Breaker Acti9 iC60N 3P 16A C-curve
- Schneider Electric A9F77320 — Miniature Circuit Breaker (MCB) Acti9 iC60N 3P 20A C curve
- Schneider Electric A9F77340 — Miniature circuit breaker iC60N 3P 40A C curve
- Schneider Electric A9F77363 — Miniature circuit breaker (MCB), Acti9 iC60N, 3P, 63A, C curve, 6000A (IEC/EN 60898-1), 10kA (IEC/EN 60947-2)
- Schneider Electric A9F77410 — Miniature circuit breaker (MCB), Acti9 iC60N, 4P, 10A, C curve
- Schneider Electric A9F77416 — Acti9 iC60N Miniature circuit breaker 4P 16A C curve
- Schneider Electric A9F77420 — Miniature Circuit Breaker Acti9 iC60N 4P 20A C-Curve
- Schneider Electric A9F77425 — Miniature Circuit Breaker, Acti9 iC60N, 4P, 25A, C-Curve
- Schneider Electric A9F77440 — Miniature Circuit Breaker (MCB) Acti9 iC60N 4P 40A C-Curve
- Schneider Electric A9F77450 — Miniature Circuit Breaker iC60N 4P 50A C Curve
- Schneider Electric A9F77463 — Acti9 iC60N 4P 63A C-Curve Miniature Circuit Breaker
- Schneider Electric A9F78116 — iC60N Miniature Circuit Breaker 1P 16A B-curve
Specifications
- Curve code
- C
- Net weight
- 0.375 Kg
- Network type
- AC, DC
- Product name
- Acti9 iC60N
- Mounting support
- 35 mm DIN rail
- Network frequency
- 50/60 Hz
- Poles description
- 3P
- Tightening torque
- 2 N.M top or bottom
- [In] rated current
- 6 A
- Trip unit technology
- Thermal-magnetic
- Electrical durability
- 10000 Cycles
- Connections - terminals
- Single terminal, 1...25 mm² rigid, 1...16 mm² flexible
- IP degree of protection
- IP20 conforming to IEC 60529
- Manufacturer part number
- A9F77306
- Suitability for isolation
- Yes conforming to EN/IEC 60898-1, Yes conforming to EN/IEC 60947-2
- [Ue] rated operational voltage
- 12...440 V AC, <= 180 V DC
- Breaking capacity (IEC/EN 60898-1)
- 6000 A Icn at 400 V AC 50/60 Hz
- Breaking capacity (IEC/EN 60947-2)
- 10 KA Icu at 380...415 V AC 50/60 Hz
- Ambient air temperature for operation
- -35…70 °C
