541009

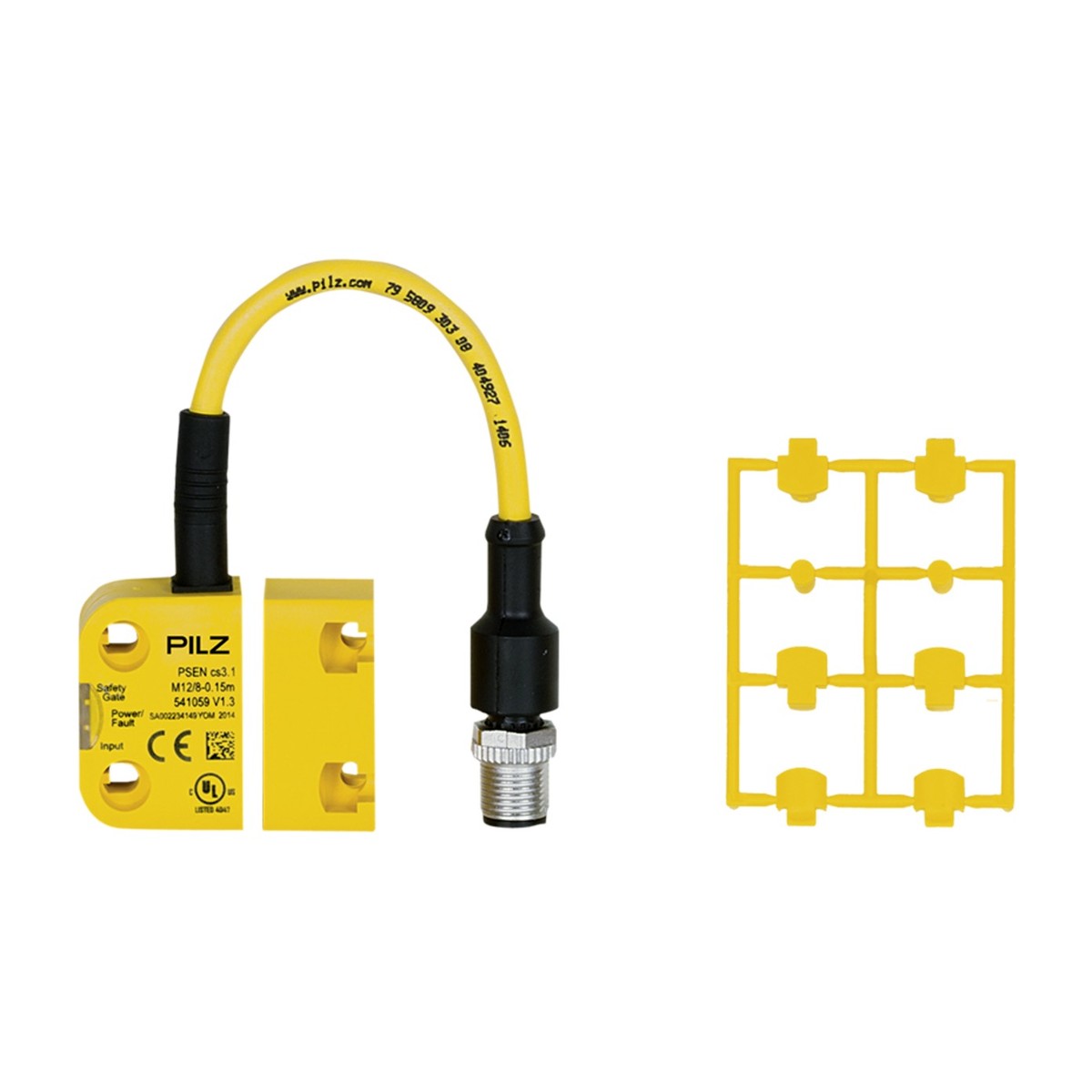

Pilz 541009 PSEN cs3.1 M12/8-0.15m/PSEN cs3.1 1Unit. Pilz 541009 (PSEN cs3.1 M12/8-0.15m/PSEN cs3.1 1Unit) is an exact PSENcode machine-safety catalogue item verified against its dedicated Pilz E-Shop detail page. Pilz's model-specific description is: RFiD safety switch 2 safe SC outputs, 8-pin M12 male connector, one actuation direction, support for SDD, IP67, switching distance 11 mm, Sao = 8 mm, Sar = 20 mm, series connection, PU = 1 piece coded switch with actuator. The detail-page technical table records Sensor principle: Transponder; Coding level to ISO 14119: gering; Classification to EN 60947-5-3: PDDB; Supply voltage (V): 24; Connection type: M12, 8pol. male; Protection type, housing: IP6K9K; Ambient temperature: -25; Height dimension: 37. This order code is tied to GTIN 4046548065688 and the official technical asset titled 'Operating Manual PSEN cs3.1p/M12'. Similar Pilz variants can differ in contact arrangement, coding, connector, cable, actuator package, sensing distance and enclosure protection, so use the exact product ID and GTIN in RFQs. Availability, price and lead time require a current supplier quotation.
Details
- Brand: Pilz
- Part number: 541009
- Series: PSENcode
- Category: Safety Switch
Related Pilz parts
- PSEN cs4.1 M12/8-0.15m/PSEN cs4.1 1Unit
- PSEN cs4.2 M12/8-0.15m/PSEN cs4.1 1Unit
- PSEN cs3.1n 1switch
- PSEN cs4.2n 1switch
- PSEN cs3.19-OSSD1&2 1actuator
- PSEN cs3.1b /PSEN cs3.1 1unit
- PSEN cs4.1 M12/8-1.5m/PSEN cs4.1 1unit
- PSEN cs4.1b / PSENcs 4.1 1unit
- PSEN cs4.1p 1switch
- PSEN cs4.1a 1switch
- PSEN cs4.2p /PSEN cs4.1 1unit
- PSEN cs4.2 M12/8-0.15m 1switch
Specifications
- GTIN
- 4046548065688
- Volume
- 0 dm3
- CAS No.
- 7439-92-1 96-45-7
- Approval
- CE UKCA cULus Listed FCC IC TÜV EAC (Eurasian)
- UNSPSC 25
- 39122205
- unit type
- Unit
- Net weight
- 50
- Cable lines
- Li9Y11Y 8 x 0,14 mm2
- ETIM Version
- ETIM-9.0
- Gross weight
- 70
- ECLASS version
- ECLASS-13
- Product family
- PSENcode
- RoHS directive
- 2011/65/EU 2015/863/EU
- Connection type
- M12, 8pol. male
- Depth dimension
- 18
- Humidity rating
- 93 % r. F. bei 40 °C
- Pilz product ID
- 541009
- RoHS conformity
- yes
- RoHS exceptions
- yes
- Type 1 actuator
- PSEN cs3.1
- Width dimension
- 26
- Height dimension
- 37
- Number of inputs
- 2
- REACh compliance
- contains min. 1 SVHC-substance
- Sensor principle
- Transponder
- Supply voltage (V)
- 24
- Transponder coding
- codiert
- Ambient temperature
- -25
- DC voltage at input
- 24 V DC
- EMC to standard ...
- EN 60947-5-3
- Operating frequency
- 122 kHz - 128 kHz
- ETIM Reference Group
- EG000026
- Overvoltage category
- III
- Power consumption DC
- 1
- SCIP entry available
- yes
- Official product page
- https://www.pilz.com/en-INT/eshop/Sensor-technology/Safety-switches/PSENcode-non-contact-coded-safety-switches/PSENcode-compact-design/PSEN-cs3-1-M12-8-0-15m-PSEN-cs3-1-1Unit/p/541009
- Type of tariff number
- TARIC
- ETIM Reference Feature
- EC002592
- Harmonized System Code
- 85365019
- Number of OSSD outputs
- 2
- Number of sig. outputs
- 1
- %-part of the pollutant
- > 0,1%
- Acc. shock to standard1
- 30g
- ECLASS Reference Feature
- 27274601
- Protection type, housing
- IP6K9K
- Coding level to ISO 14119
- gering
- Official catalogue branch
- PSENcode-compact
- Potential isolation S/C O
- nein
- REACh included substances
- Lead Imidazolidine-2-thione
- Type of supply voltage U1
- DC
- Vibration to standard ...
- EN 60947-5-2
- Max. ambient temp. at Hmax
- +60 °C
- Perm. operating height ASL
- 4000 m
- Housing material upper part
- PBT
- Quantity per packaging unit
- 1
- Sensor can be flush-mounted
- Ja, Montagehinweis beachten
- Ambient temperature standard
- EN 60068-2-14
- Bend radius (when laying) K1
- 5 x Ø
- Change op. dist. temp.change
- +-0,01mm/°C
- Max. ambient temp. at 2000 m
- +70 °C
- Storage temperature standard
- EN 60068-2-1/-2
- Use of customs tariff number
- Ausfuhr Einfuhr
- Climatic suitability standard
- EN 60068-2-78
- RoHS except.s acc. to direct.
- 7a 7c I
- WEEE classification (08/2018)
- 5 devices (feed size < 50cm)
- Classification to EN 60947-5-3
- PDDB
- Pollution degree clear.&creep.
- 3
- S/C output short circuit proof
- ja
- Suitable for series connection
- ja
- Utilisation cat. to EN 60947-1
- DC-12
