541380

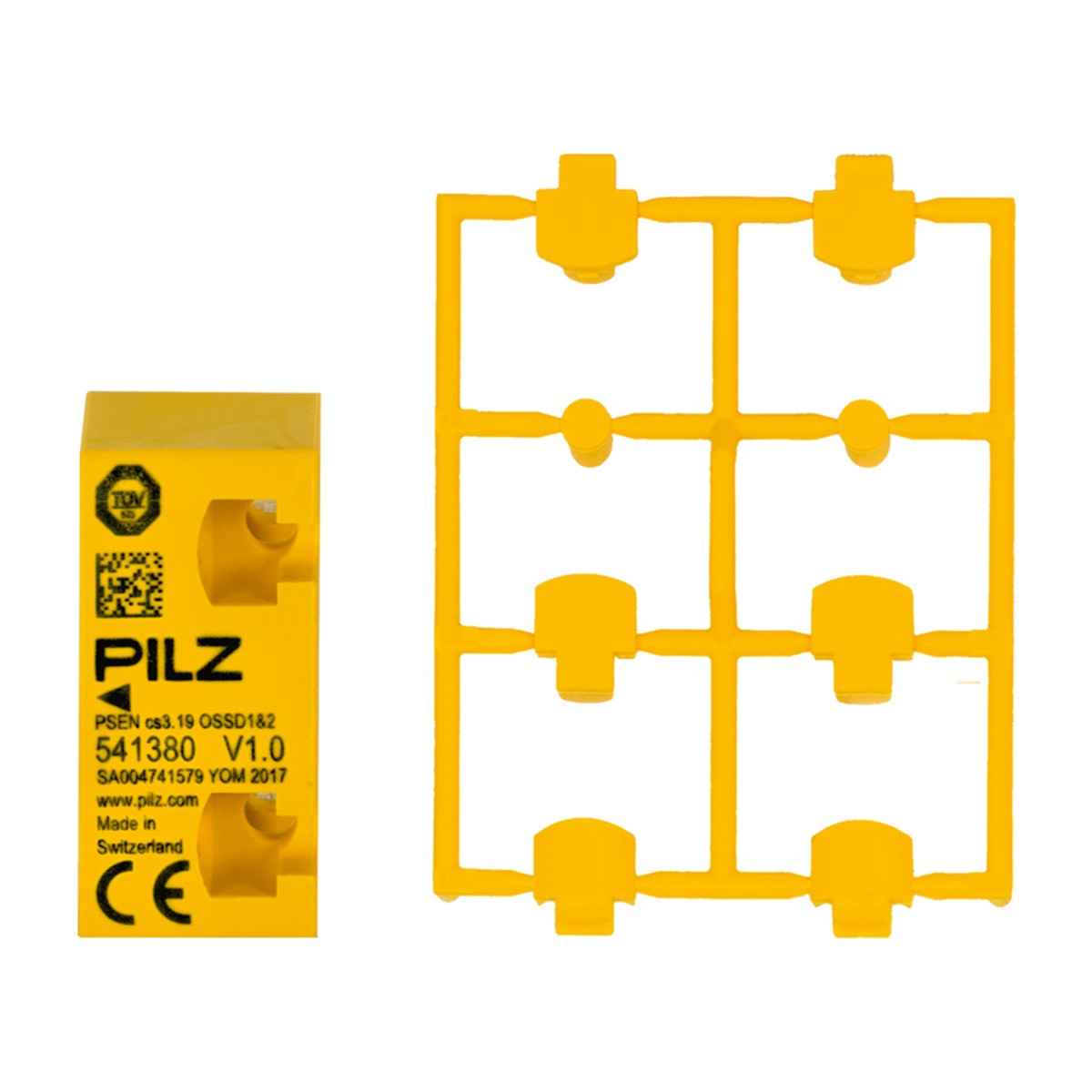

Pilz 541380 PSEN cs3.19-OSSD1&2 1actuator. Pilz 541380 (PSEN cs3.19-OSSD1&2 1actuator) is an exact PSENcode machine-safety catalogue item verified against its dedicated Pilz E-Shop detail page. Pilz's model-specific description is: RFiD actuator for safety switch PSEN cs3.19, IP67, PU = 1 piece, OSSD 1&2. The detail-page technical table records Sensor principle: Transponder; Coding level to ISO 14119: gering; Protection type, housing: IP6K9K; Ambient temperature: -25; Height dimension: 37; Width dimension: 18; Depth dimension: 18. This order code is tied to GTIN 4046548070767 and the official technical asset titled 'Operating Manual PSEN cs3.19n'. Similar Pilz variants can differ in contact arrangement, coding, connector, cable, actuator package, sensing distance and enclosure protection, so use the exact product ID and GTIN in RFQs. Availability, price and lead time require a current supplier quotation.
Details
- Brand: Pilz
- Part number: 541380
- Series: PSENcode
- Category: Safety Switch
Related Pilz parts
- PSEN cs3.1b /PSEN cs3.1 1unit
- PSEN cs4.1 M12/8-1.5m/PSEN cs4.1 1unit
- PSEN cs4.1b / PSENcs 4.1 1unit
- PSEN cs4.1p 1switch
- PSEN cs4.1a 1switch
- PSEN cs4.2p /PSEN cs4.1 1unit
- PSEN cs4.2 M12/8-0.15m 1switch
- PSEN cs4.2p 1switch
- PSEN cs4.2a 1switch
- PSEN cs4.2n / PSEN cs4.1 1 Unit
- PSEN cs4.1n 1switch
- PSEN cs3.19-OSSD2 1actuator
Specifications
- GTIN
- 4046548070767
- Volume
- 0 dm3
- Approval
- CE UKCA cULus Listed EAC (Eurasian) TÜV
- UNSPSC 25
- 39122205
- unit type
- Betätiger
- Net weight
- 15
- ETIM Version
- ETIM-9.0
- Gross weight
- 35
- ECLASS version
- ECLASS-13
- Product family
- PSENcode
- RoHS directive
- 2011/65/EU 2015/863/EU
- Depth dimension
- 18
- Humidity rating
- 93 % r. F. bei 40 °C
- Pilz product ID
- 541380
- RoHS conformity
- yes
- RoHS exceptions
- no
- Width dimension
- 18
- Height dimension
- 37
- Product material
- PBT
- REACh compliance
- Contains no SVHC substances
- Sensor principle
- Transponder
- Transponder coding
- codiert
- Ambient temperature
- -25
- EMC to standard ...
- EN 60947-5-3
- Operating frequency
- 122 kHz - 128 kHz
- ETIM Reference Group
- EG000026
- Official product page
- https://www.pilz.com/en-INT/eshop/Sensor-technology/Safety-switches/PSENcode-non-contact-coded-safety-switches/PSENcode-compact-design/PSEN-cs3-19-OSSD1%262-1actuator/p/541380
- Type of tariff number
- TARIC
- ETIM Reference Feature
- EC001487
- Harmonized System Code
- 85389099
- Acc. shock to standard1
- 30g
- ECLASS Reference Feature
- 27274002
- Protection type, housing
- IP6K9K
- Coding level to ISO 14119
- gering
- Official catalogue branch
- PSENcode-compact
- Vibration to standard ...
- EN 60947-5-2
- Perm. operating height ASL
- 4000 m
- Quantity per packaging unit
- 1
- Ambient temperature standard
- EN 60068-2-14
- Max. ambient temp. at 2000 m
- +55 °C
- Storage temperature standard
- EN 60068-2-1/-2
- Use of customs tariff number
- Ausfuhr Einfuhr
- Climatic suitability standard
- EN 60068-2-78
- WEEE classification (08/2018)
- 5 devices (feed size < 50cm)
