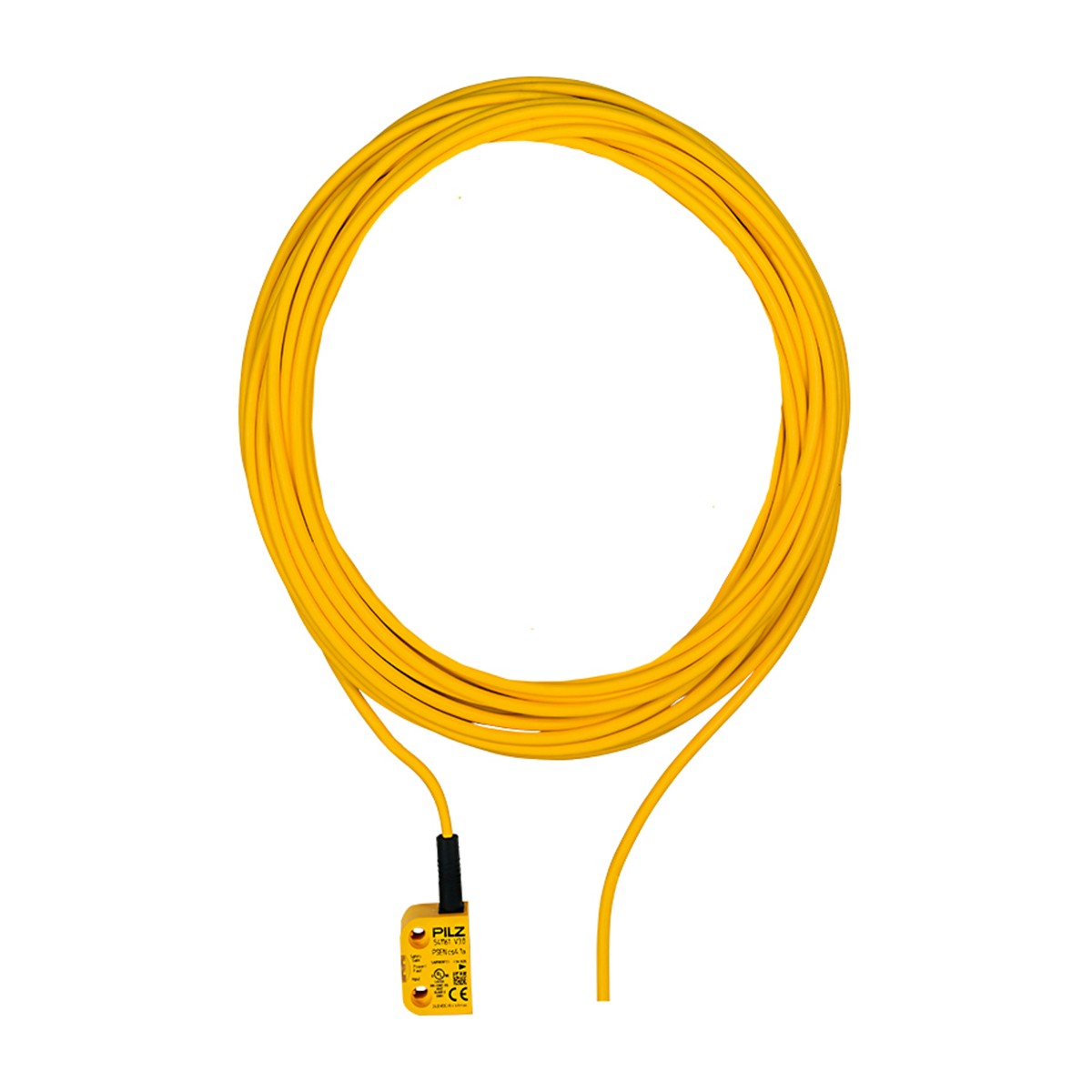

Pilz 541161 — PSEN cs4.1a 1switch

Pilz 541161 PSEN cs4.1a 1switch. Pilz 541161 (PSEN cs4.1a 1switch) is an exact PSENcode machine-safety catalogue item verified against its dedicated Pilz E-Shop detail page. Pilz's model-specific description is: RFiD safety switch, 2 safe SC outputs, connection cable 5 m, one actuation direction, IP6K9K, typ. operating distance 11 mm, Sao = 8mm, Sar = 20 mm, PU = 1 piece fully coded switch, max. 8 teach-in processes. The detail-page technical table records Sensor principle: Transponder; Coding level to ISO 14119: hoch; Classification to EN 60947-5-3: PDDB; Supply voltage (V): 24; Connection type: 5m Kabel; Protection type, housing: IP6K9K; Ambient temperature: -25; Height dimension: 37. This order code is tied to GTIN 4046548067156 and the official technical asset titled 'Operating Manual PSEN cs4.1a/b'. Similar Pilz variants can differ in contact arrangement, coding, connector, cable, actuator package, sensing distance and enclosure protection, so use the exact product ID and GTIN in RFQs. Availability, price and lead time require a current supplier quotation.

Details

Related Pilz parts

Request a quote for 541161

Specifications

GTIN
4046548067156
Volume
0 dm3
CAS No.
7439-92-1 1317-36-8
Approval
CE UKCA cULus Listed FCC IC EAC (Eurasian) TÜV
UNSPSC 25
39122205
unit type
Sensor
Cable lines
Li9Y11Y 8 x 0,14 mm2
ETIM Version
ETIM-9.0
Gross weight
245
ECLASS version
ECLASS-13
Product family
PSENcode
RoHS directive
2011/65/EU 2015/863/EU
Connection type
5m Kabel
Depth dimension
18
Humidity rating
93 % r. F. bei 40 °C
Pilz product ID
541161
RoHS conformity
yes
RoHS exceptions
yes
Width dimension
26
Height dimension
37
Number of inputs
2
REACh compliance
contains min. 1 SVHC-substance
Sensor principle
Transponder
Supply voltage (V)
24
Transponder coding
vollcodiert
Ambient temperature
-25
DC voltage at input
24 V DC
EMC to standard ...
EN 60947-5-3
Operating frequency
122 kHz - 128 kHz
ETIM Reference Group
EG000026
Overvoltage category
III
Power consumption DC
1
SCIP entry available
yes
Official product page
https://www.pilz.com/en-INT/eshop/Sensor-technology/Safety-switches/PSENcode-non-contact-coded-safety-switches/PSENcode-compact-design/PSEN-cs4-1a-1switch/p/541161
Type of tariff number
TARIC
ETIM Reference Feature
EC002592
Harmonized System Code
85365019
Number of OSSD outputs
2
Number of sig. outputs
1
%-part of the pollutant
> 0,1%
Acc. shock to standard1
30g
ECLASS Reference Feature
27274601
Protection type, housing
IP6K9K
Coding level to ISO 14119
hoch
Official catalogue branch
PSENcode-compact
Potential isolation S/C O
nein
REACh included substances
Lead Lead oxide
Type of supply voltage U1
DC
Vibration to standard ...
EN 60947-5-2
Max. ambient temp. at Hmax
+60 °C
Perm. operating height ASL
4000 m
Housing material upper part
PBT
Quantity per packaging unit
1
Sensor can be flush-mounted
Ja, Montagehinweis beachten
Ambient temperature standard
EN 60068-2-14
Bend radius (when laying) K1
5 x Ø
Max. ambient temp. at 2000 m
+70 °C
Storage temperature standard
EN 60068-2-1/-2
Use of customs tariff number
Ausfuhr Einfuhr
Climatic suitability standard
EN 60068-2-78
RoHS except.s acc. to direct.
7a 7c I
WEEE classification (08/2018)
5 devices (feed size < 50cm)
Change op. distance temp.act.1
+-0,01mm/°C
Change op. distance temp.act.2
+-0,1mm/°C
Change op. distance temp.act.3
+-0,01mm/°C
Change op. distance temp.act.4
+-0,01mm/°C
Classification to EN 60947-5-3
PDDB
Pollution degree clear.&creep.
3
S/C output short circuit proof
ja
Suitable for series connection
ja
Utilisation cat. to EN 60947-1
DC-12
