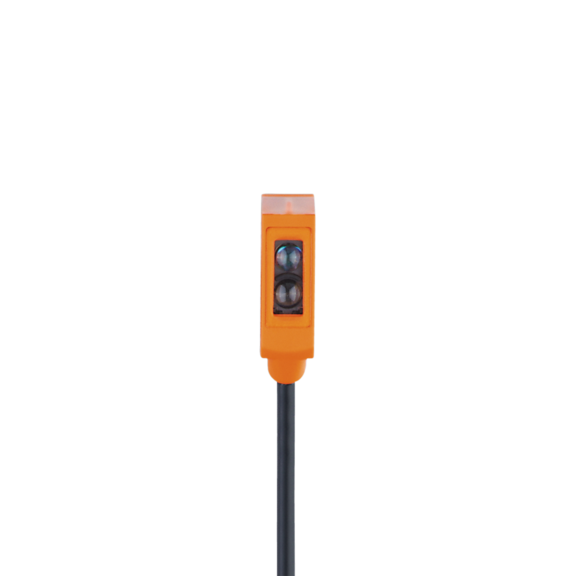

IFM O8E201 — Through-beam sensor receiver

IFM O8E201 Through-beam sensor receiver. IFM lists these product characteristics: Particularly small housing for use where space is restricted, For the reliable position detection in feeding and handling technology, Ready for operation immediately thanks to fixed setting, Precise detection of very small, very flat or highly reflective components, Very long range.

Details

Related IFM parts

Request a quote for O8E201

Specifications

EMC
EN 60947-5-2
Cable
2 m, PVC, black, Ø 2.9 mm; 3 x 0.08 mm²
Display
Switching status: 1 x LED, yellow; Power: 1 x LED, green
Housing
rectangular
Material
housing: ABS; rear of the housing: stainless steel (1.4404 / 316L)
Range [m]
< 3
Protection
IP 65; IP 67
Weight [g]
38
Application
For applications in robotics, assembly and handling technology
UL approval
Ta: -25...60 °C; Enclosure type: Type 1; voltage supply: Limited Voltage/Current; UL approval number: E014; File number UL: E174191
MTTF [years]
1152
Lens material
front lens:PMMA
Pack quantity
1 pcs.
Type of light
red light
Lens alignment
Side sensing
Dimensions [mm]
28.1 x 8.1 x 14.4
Output function
dark-on mode
IFM product code
O8E201
Protection class
III
Wave length [nm]
633
Electrical design
NPN
Function principle
Through-beam sensor
Operating voltage [V]
10...30 DC
Transmitter / receiver
receiver
Current consumption [mA]
15; ((24 V))
Short-circuit protection
yes
Ambient temperature [°C]
-25...60
Reverse polarity protection
yes
Switching frequency DC [Hz]
1000
Type of short-circuit protection
yes (non-latching)
Max. voltage drop switching output DC [V]
2.5
Permanent current rating of switching output DC [mA]
100
