O8E200

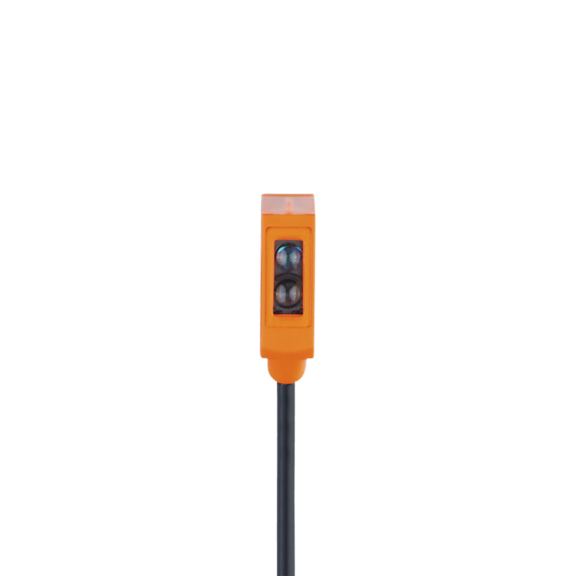

IFM O8E200 Through-beam sensor receiver. IFM lists these product characteristics: Particularly small housing for use where space is restricted, For the reliable position detection in feeding and handling technology, Precise detection of very small, very flat or highly reflective components, Very long range.
Details
- Brand: IFM
- Part number: O8E200
- Series: O8
- Category: Photoelectric sensors
Related IFM parts
- Diffuse reflection sensors with background suppression
- Through-beam sensor receiver
- Through-beam sensor receiver
- Diffuse reflection sensors with background suppression
- Diffuse reflection sensors with background suppression
- Diffuse reflection sensors with background suppression
- Diffuse reflection sensors with background suppression
- Diffuse reflection sensors with background suppression
- Through-beam sensor transmitter
- Through-beam sensor transmitter
- Through-beam sensor transmitter
- Diffuse reflection sensors with background suppression
Specifications
- EMC
- EN 60947-5-2
- Cable
- 2 m, PVC, black, Ø 2.9 mm; 3 x 0.08 mm²
- Display
- Switching status: 1 x LED, yellow; Power: 1 x LED, green
- Housing
- rectangular
- Material
- housing: ABS; rear of the housing: stainless steel (1.4404 / 316L)
- Profiles
- Smart Sensor - SSP 0: Generic Profiled Sensor; Function: Device identification; Function: Multiple switching signal; Function: Device diagnosis; Function: Teach channel
- SIO mode
- yes
- Range [m]
- < 3
- Protection
- IP 65; IP 67
- Weight [g]
- 38.4
- Application
- For applications in robotics, assembly and handling technology
- UL approval
- Ta: -25...60 °C; Enclosure type: Type 1; voltage supply: Limited Voltage/Current; UL approval number: E016; File number UL: E174191
- MTTF [years]
- 1139
- Lens material
- front lens:PMMA
- Pack quantity
- 1 pcs.
- SDCI standard
- IEC 61131-9
- Type of light
- red light
- Lens alignment
- Side sensing
- Dimensions [mm]
- 28.1 x 8.1 x 14.4
- Output function
- light-on/dark-on mode; (programmable)
- IFM product code
- O8E200
- IO-Link revision
- 1.1
- Protection class
- III
- Wave length [nm]
- 633
- Electrical design
- PNP
- Transmission type
- COM2 (38,4 kBaud)
- Function principle
- Through-beam sensor
- Supported DeviceIDs
- Type of operation: DeviceID; default: 787
- Operating voltage [V]
- 10...30 DC
- Transmitter / receiver
- receiver
- Communication interface
- IO-Link
- Current consumption [mA]
- 15; ((24 V))
- Short-circuit protection
- yes
- Ambient temperature [°C]
- -25...60
- Required master port class
- A
- Reverse polarity protection
- yes
- Switching frequency DC [Hz]
- 1000
- Min. process cycle time [ms]
- 2.5
- IO-Link functions (acyclical)
- application specific tag; operating hours counter; switching cycles counter
- IO-Link process data (cyclical)
- Function: bit length; process value: 8; device status: 4; binary switching information: 1
- Type of short-circuit protection
- yes (non-latching)
- Max. voltage drop switching output DC [V]
- 2.5
- Permanent current rating of switching output DC [mA]
- 100
