O8S202

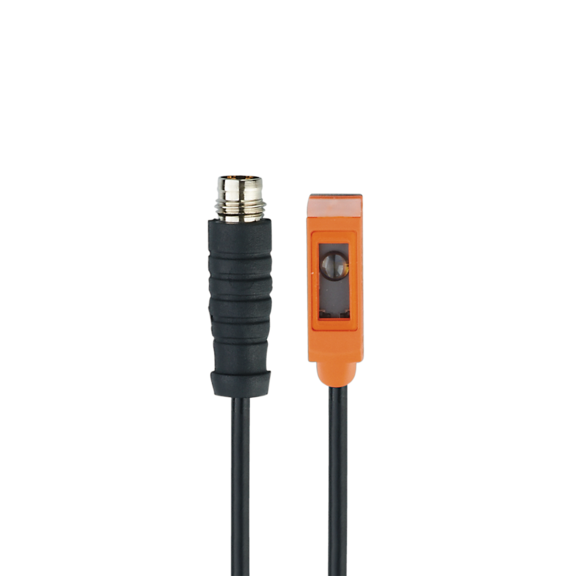

IFM O8S202 — Through-beam sensor transmitter

IFM O8S202 Through-beam sensor transmitter. IFM lists these product characteristics: Visible red light for simple alignment, Particularly small housing for use where space is restricted, For the reliable position detection in feeding and handling technology, Small light spot and narrow light cone for detecting of small objects, Ready for operation immediately thanks to fixed setting.

Details

Related IFM parts

Request a quote for O8S202

Specifications

EMC
EN 60947-5-2
Cable
0.3 m, PVC, black, Ø 2.9 mm; 2 x 0.08 mm²
Display
Switching status: 1 x LED, yellow; Power: 1 x LED, green
Housing
rectangular
Material
housing: ABS; rear of the housing: stainless steel (1.4404 / 316L)
Connector
1 x M8; coding: A; Contacts: 4
Range [m]
< 3
Protection
IP 65; IP 67
Weight [g]
21
Application
For applications in robotics, assembly and handling technology
UL approval
Ta: -25...60 °C; Enclosure type: Type 1; voltage supply: Limited Voltage/Current; UL approval number: E026; File number UL: E174191
MTTF [years]
2942
Lens material
front lens:PMMA
Pack quantity
1 pcs.
Type of light
red light
Lens alignment
Side sensing
Dimensions [mm]
28.1 x 8.1 x 14.4
IFM product code
O8S202
Protection class
III
Wave length [nm]
633
Function principle
Through-beam sensor
Operating voltage [V]
10...30 DC
Transmitter / receiver
transmitter
Current consumption [mA]
12; ((24 V))
Ambient temperature [°C]
-25...60
Reverse polarity protection
yes
Max. light spot diameter [mm]
200
Light spot dimensions refer to
at maximum range
