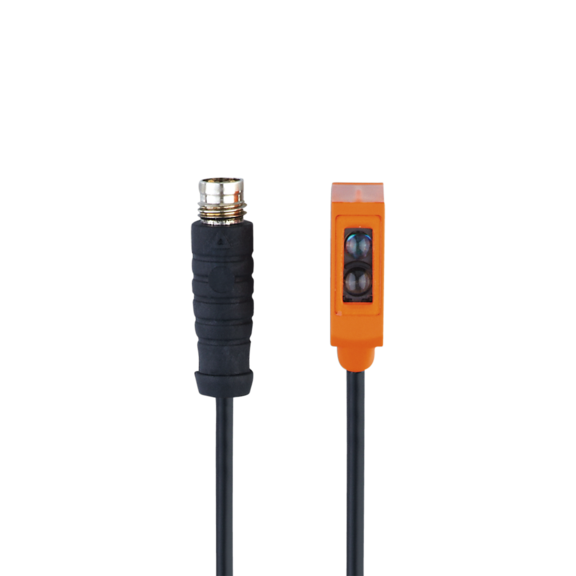

IFM O8T205 — Diffuse reflection sensor

IFM O8T205 Diffuse reflection sensor. IFM lists these product characteristics: Particularly small housing for use where space is restricted, For the reliable position detection in feeding and handling technology, Ready for operation immediately thanks to fixed setting, Precise detection of very small, very flat or highly reflective components, Very long range.

Details

Related IFM parts

Request a quote for O8T205

Specifications

EMC
EN 60947-5-2
Cable
0.3 m, PVC, black, Ø 2.9 mm; 3 x 0.08 mm²
Display
Switching status: 1 x LED, yellow; Power: 1 x LED, green
Housing
rectangular
Material
housing: ABS; rear of the housing: stainless steel (1.4404 / 316L)
Connector
1 x M8; coding: A; Contacts: 4
Protection
IP 65; IP 67
Range [mm]
0...180; (white paper 200 x 200 mm)
Weight [g]
23
Application
For applications in robotics, assembly and handling technology
UL approval
Ta: -25...60 °C; Enclosure type: Type 1; voltage supply: Limited Voltage/Current; UL approval number: E015; File number UL: E174191
MTTF [years]
1067
Lens material
front lens:PMMA
Pack quantity
1 pcs.
Type of light
red light
Lens alignment
Side sensing
Dimensions [mm]
28.1 x 8.1 x 14.4
Output function
light-on mode
IFM product code
O8T205
Protection class
III
Wave length [nm]
633
Electrical design
NPN
Function principle
Diffuse reflection sensor
Operating voltage [V]
10...30 DC
Current consumption [mA]
20; ((24 V))
Short-circuit protection
yes
Ambient temperature [°C]
-25...60
Reverse polarity protection
yes
Switching frequency DC [Hz]
1000
Max. light spot diameter [mm]
18
Light spot dimensions refer to
at maximum range
Type of short-circuit protection
yes (non-latching)
Max. voltage drop switching output DC [V]
2.5
Permanent current rating of switching output DC [mA]
100
