O6S215

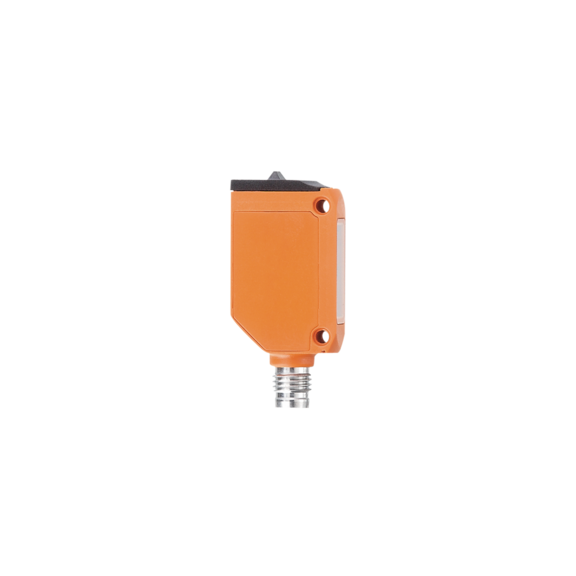

IFM O6S215 Through-beam sensor transmitter. IFM lists these product characteristics: Particularly compact housing for use where space is restricted, Very long range independent of the object color, Excellent price/performance ratio, Clearly visible LED for indicating the readiness for operation.
Details
- Brand: IFM
- Part number: O6S215
- Series: O6
- Category: Photoelectric sensors
Related IFM parts
- Diffuse reflection sensor
- Diffuse reflection sensor
- Diffuse reflection sensor
- Diffuse reflection sensor
- Diffuse reflection sensor
- Diffuse reflection sensor
- Diffuse reflection sensor
- Through-beam sensor transmitter
- Through-beam sensor transmitter
- Through-beam sensor transmitter
- Diffuse reflection sensors with background suppression
- Diffuse reflection sensors with background suppression
Specifications
- EMC
- EN 60947-5-2
- Display
- Power: 1 x LED, green
- Housing
- rectangular
- Remarks
- cULus - Class 2 source required
- Material
- housing: ABS orange; upper part of the housing: PPSU black
- Connector
- 1 x M8; coding: A; Contacts: 4; Locking: metal, coated; sealing: EPDM
- Range [m]
- < 15
- Protection
- IP 65; IP 67
- Weight [g]
- 17.7
- Application
- Industrial applications
- UL approval
- Ta: -25...40 °C; Enclosure type: Type 1; voltage supply: Class 2; UL approval number: E002
- MTTF [years]
- 2920
- Lens material
- front lens:PMMA
- Pack quantity
- 1 pcs.
- Type of light
- Infrared light
- Lens alignment
- Side sensing
- Dimensions [mm]
- 35.4 x 13 x 21
- IFM product code
- O6S215
- Protection class
- III
- Sealing material
- EPDM
- Wave length [nm]
- 850
- Function principle
- Through-beam sensor
- Operating voltage [V]
- 10...30 DC
- Tightening torque [Nm]
- 0.5
- Transmitter / receiver
- transmitter
- Current consumption [mA]
- 11; ((24 V))
- Ambient temperature [°C]
- -25...60
- Max. light spot diameter [mm]
- 460
- Light spot dimensions refer to
- at maximum range
