O2V105

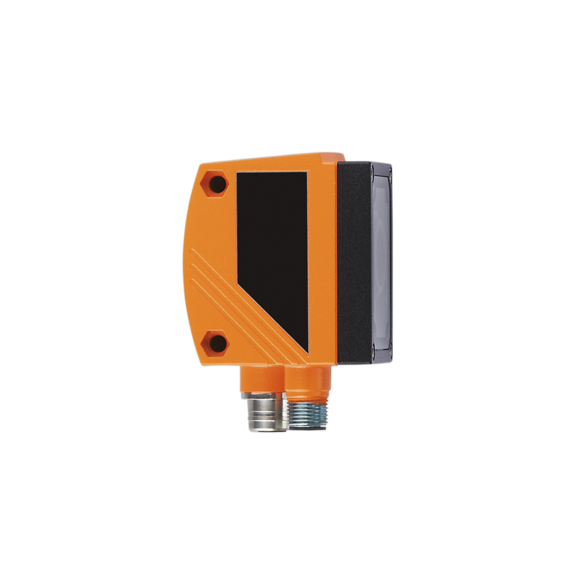

IFM O2V105 Object inspection sensor. IFM lists these product characteristics: For checking presence, size, position or completeness, Reliable detection of deviations in shape or changes in color, Stand-alone device with integrated illumination, Intuitive, user-friendly handling, High-performance Ethernet interface for data transmission.
Details
- Brand: IFM
- Part number: O2V105
- Series: O2
- Category: Photoelectric sensors
Related IFM parts
- Object inspection sensor
- analog camera for mobile machines
- External illumination
- External illumination
- Object recognition sensor
- External illumination
- External illumination
- External illumination
- External illumination
- Object recognition sensor
- Object recognition sensor
- Object recognition sensor
Specifications
- EMC
- radiation of interference: EN 61326; noise immunity: EN 61326
- Display
- Function: 3 x LED, green; Switching status: 4 x LED, yellow; 10-segment display, 4-digit
- Remarks
- cULus - Class 2 source required
- Trigger
- 24 V NPN (IEC 61131-2 Typ 1); internal
- Material
- housing: diecast zinc powder-coated; front lens: glass; LED window: PC
- Protocol
- TCP/IP; EtherNet/IP
- Connector
- 1 x M12; coding: D; Contacts: 4
- Protection
- IP 67
- Weight [g]
- 431
- Image sensor
- CMOS image sensor black/white
- Pack quantity
- 1 pcs.
- Type of light
- White light
- Dimensions [mm]
- 60 x 42 x 59
- Output function
- 24 V NPN
- Factory settings
- IP address: 192.168.0.59; subnet mask: 255.255.255.0; gateway IP address: 192.168.0.201; MAC address: see type label
- IFM product code
- O2V105
- Protection class
- III
- Shock resistance
- EN 60947-5-2, 7.4.1; IEC 60068-2-27
- Transmission rate
- 10; 100
- Overload protection
- yes
- Vibration resistance
- EN 60947-5-2, 7.4.2; IEC 60028-2-6
- Image resolution [px]
- 640 x 480
- Operating voltage [V]
- 24 DC
- Transmission standard
- 10Base-T; 100Base-TX
- Accessories (optional)
- Operating software; Mounting accessories
- Max. reading rate [Hz]
- 20
- Communication interface
- Ethernet
- Field of view size [mm]
- Operating distance: Field of view: Smallest detectable object: Resolution; 75: 15 x 11: 0,08: 0,02; 100: 20 x 15: 0,12: 0,03; 200: 40 x 30: 0,25: 0,063; 400: 80 x 60: 0,52: 0,13; 1000: 200 x 150: 1,25: 0,313; 2000: 400 x 300: 2,53: 0,633
- Total number of outputs
- 5
- Current consumption [mA]
- 300
- Number of digital inputs
- 2
- Short-circuit protection
- yes
- Ambient temperature [°C]
- -10...60
- Number of digital outputs
- 5; (configurable)
- Parameter setting options
- via 2 pushbuttons and 10-segment display or via PC / notebook with operating software
- Storage temperature [°C]
- -40...85
- Reverse polarity protection
- yes
- Number of inputs and outputs
- Number of digital inputs: 2; Number of digital outputs: 5
- Number of Ethernet interfaces
- 1
- Bewegungsgeschwindigkeit [m/s]
- 1
- Input circuit of digital inputs
- 24 V PNP; (configurable; IEC 61131-2 Typ 1)
- Operating voltage tolerance [%]
- 10
- Max. current load per output [mA]
- 100
- Max. voltage drop switching output DC [V]
- 2
