O2D930

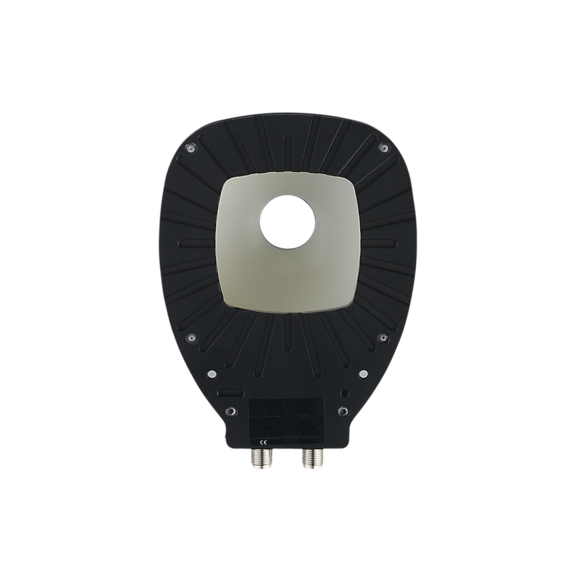

IFM O2D930 External illumination. IFM lists these product characteristics: Homogeneous light in four different colors, Two color combinations selectable: white/infrared or cyan/red, Four lighting segments can be controlled separately, Permanent light or pulse operation with 4 times more light, No external control unit necessary.
Details
- Brand: IFM
- Part number: O2D930
- Series: O2
- Category: Photoelectric sensors
Related IFM parts
- External illumination
- External illumination
- External illumination
- Object recognition sensor
- Object recognition sensor
- Object recognition sensor
- Object recognition sensor
- Object recognition sensor
- Object recognition sensor
- Object recognition sensor
- Object recognition sensor
- Object recognition sensor
Specifications
- Design
- Dome
- Display
- Power: 1 x LED, green; operating mode "high light intensity": 1 x LED, red; LED segment: 1 x LED, white
- Trigger
- 24 V PNP/NPN; external
- Material
- housing: aluminum black anodized; Cover: ABS
- Connector
- M12; coding: A; Contacts: 8
- Protection
- IP 65
- Weight [g]
- 547.25
- Pack quantity
- 1 pcs.
- Type of light
- White light; Infrared light
- Dimensions [mm]
- 193 x 136 x 75
- IFM product code
- O2D930
- Protection class
- III; (PELV)
- Type of operation
- normal light intensity (permanent operation possible); High light intensity (pulsed)
- Operating voltage [V]
- 24 DC
- Illuminated field [mm]
- 80 x 80
- Photobiological safety
- risk group 1; (DIN EN 62471)
- Tightening torque [Nm]
- 0.5...1.5
- Number of analog inputs
- 1
- Current consumption [mA]
- Operating mode "permanent operation": 420; operating mode "high light intensity": 1750
- Number of digital inputs
- 2
- Ambient temperature [°C]
- -10...40
- Storage temperature [°C]
- -20...60
- Number of inputs and outputs
- Number of digital inputs: 2; Number of analog inputs: 1
