O2D922

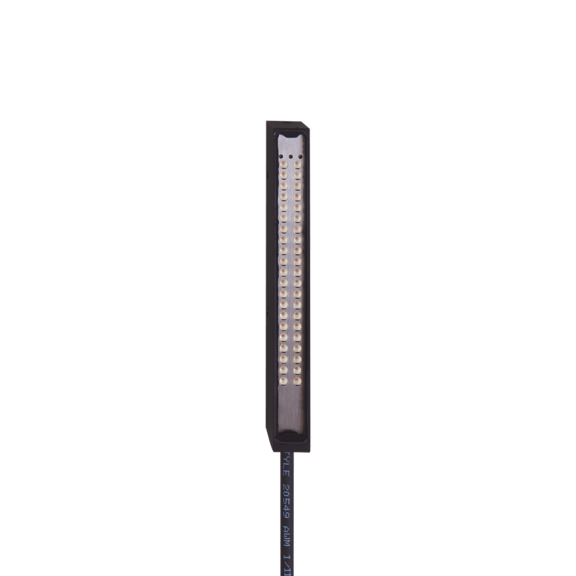

IFM O2D922 External illumination. IFM lists these product characteristics: Homogeneous and virtually shadow-free illumination of the object, Permanent light or pulse operation, Pulse operation with higher light intensity to reduce the exposure time, Emission of invisible infrared light, Compact and robust housing.
Details
- Brand: IFM
- Part number: O2D922
- Series: O2
- Category: Photoelectric sensors
Related IFM parts
- Object recognition sensor
- External illumination
- External illumination
- External illumination
- External illumination
- Object recognition sensor
- Object recognition sensor
- Object recognition sensor
- Object recognition sensor
- Object recognition sensor
- Object recognition sensor
- Object recognition sensor
Specifications
- Cable
- 0.3 m, PUR, black; 4 x 0.34 mm²
- Design
- bar
- Display
- Illumination status: 1 x LED, yellow; Power: 1 x LED, green; Excess temperature: 1 x LED, red
- Trigger
- 24 V PNP
- Material
- housing: aluminum black anodized
- Connector
- 1 x M12; coding: A; Contacts: 4
- Protection
- IP 65
- Weight [g]
- 181
- Lens material
- Illuminated field:glass
- Pack quantity
- 1 pcs.
- Type of light
- Infrared light
- Dimensions [mm]
- 116 x 13 x 18
- IFM product code
- O2D922
- Wave length [nm]
- 875
- Type of operation
- high light intensity (pulsed, permanent operation with cooling only); normal light intensity (permanent operation possible)
- Overheat protection
- yes; (deactivation at 65...75 °C)
- Operating voltage [V]
- 24 DC
- Illuminated field [mm]
- 10 x 75
- Photobiological safety
- risk group 1; (DIN EN 62471:2008; Do not stare into light source.; danger of glare and irritations; Align the device to prevent eye exposure to the light source.)
- Current consumption [mA]
- Operating mode "permanent operation": 185; operating mode "high light intensity": 325
- Ambient temperature [°C]
- -10...55
- Storage temperature [°C]
- -25...75
