O2M203

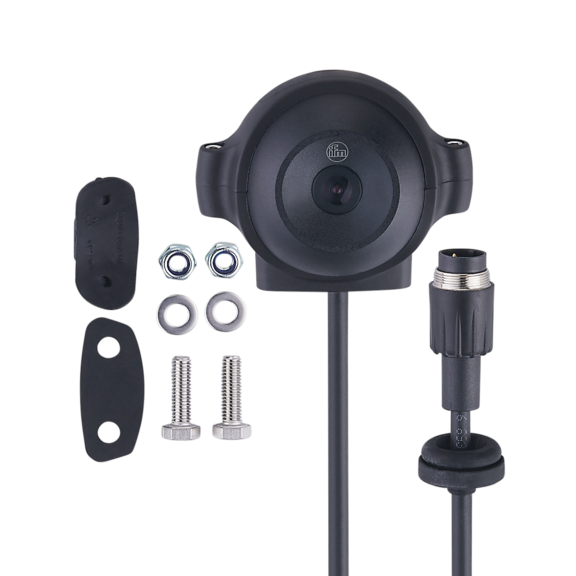

IFM O2M203 — analog camera for mobile machines

IFM O2M203 analog camera for mobile machines. IFM lists these product characteristics: analog video output for rear area monitoring in mobile machines, Encapsulated, weather-proof housing, High shock and vibration resistance, Temperature-controlled lens heating, EU type approval E4.

Details

Related IFM parts

Request a quote for O2M203

Specifications

EMC
DIN EN 61000-6-4: industrial environments; DIN EN 61000-6-2: industrial environments; UN-ECE R10
Cable
0.5 m, screened; shield connected
Material
housing: PC/ABS; front lens: polyamide reinforced glass-fiber
Connector
1 x M16; coding: A; Shielded connection cable: yes
Protection
IP 67; IP 69K
Weight [g]
313
Application
Integrated mirror function
Image sensor
¼'' 4:3 VGA CMOS image sensor color
Video output
PAL (25 fps interlace) 720H x 576V (640 x 480), 1 Vtt / 75 Ω
Pack quantity
1 pcs.
Items supplied
Mounting set:, E2M210; screws: 2 x (M6 x 20 mm); washers: 2; Nuts: 2 x M6, self-locking; anti-slide pad
Dimensions [mm]
Ø 55.5 / L = 51.3
Salt spray test
IEC 60068-5-52
Special feature
screened cable
IFM product code
O2M203
Shock resistance
50 g
Dynamic range [dB]
> 80
Vibration resistance
Frequency range 24...2000 Hz: (15.3 x 9.81 m/s²)rms; PSD (g²/Hz): 0.04...0.1
Image resolution [px]
640 x 480
Operating voltage [V]
12...32 DC
Angle of aperture [°]
118 x 89
Overvoltage protection
yes
Field of view size [mm]
Operating distance: Field of view; 1000: 3330 x 1970; 2000: 6660 x 3930; 3000: 9990 x 5900; 4000: 13310 x 7860; 5000: 16640 x 9830
Light sensitivity [LUX]
< 0.05
Current consumption [mA]
< 280; (with lens heating)
Ambient temperature [°C]
-40...85
Storage temperature [°C]
-40...100
Switch-on peak current [mA]
700
Switch-on peak current duration [ms]
2
