O2M210

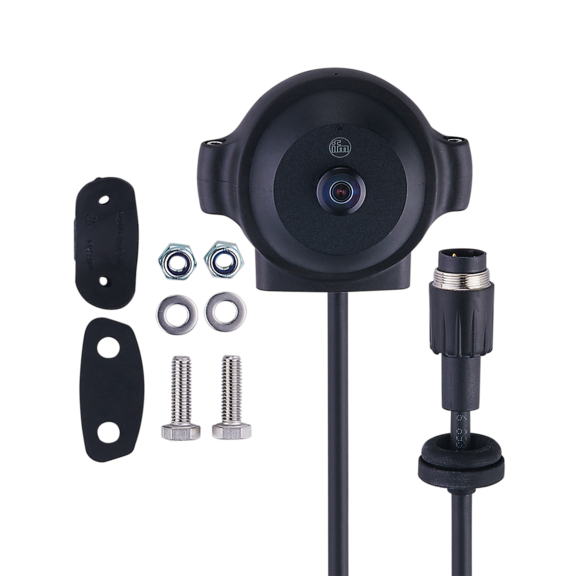

IFM O2M210 — analog camera for mobile machines

IFM O2M210 analog camera for mobile machines. IFM lists these product characteristics: analog video output for rear area monitoring in mobile machines, Encapsulated, weather-proof housing, High shock and vibration resistance, Temperature-controlled lens heating, EU type approval E4.

Details

Related IFM parts

Request a quote for O2M210

Specifications

EMC
DIN EN 61000-6-4: industrial environments; DIN EN 61000-6-2: industrial environments; UN-ECE R10
Cable
0.5 m, screened
Material
housing: PC/ABS; front lens: polyamide reinforced glass-fiber
Connector
1 x M16; coding: A; Shielded connection cable: shield connected
Protection
IP 67; IP 69K
Weight [g]
303
Image sensor
¼'' 4:3 VGA CMOS image sensor color
Video output
PAL (25 fps interlace) 720H x 576V (640 x 480), 1 Vtt / 75 Ω
Pack quantity
1 pcs.
Items supplied
Mounting set:, E2M210; screws: 2 x (M6 x 20 mm); washers: 2; Nuts: 2 x M6, self-locking; anti-slide pad
Dimensions [mm]
Ø 55 / L = 52
Salt spray test
IEC 60068-5-52
Special feature
screened cable
IFM product code
O2M210
Shock resistance
50 g
Dynamic range [dB]
> 80
Vibration resistance
Frequency range 24...2000 Hz: (15.3 x 9.81 m/s²)rms; PSD (g²/Hz): 0.04...0.1
Image resolution [px]
640 x 480
Operating voltage [V]
12...32 DC
Angle of aperture [°]
170 x 117
Overvoltage protection
yes
Field of view size [mm]
Operating distance [m]: Field of view [m]; 1: 22,86 x 3,26; 2: 45,72 x 6,53; 3: 68,58 x 9,79; 4: 91,44 x 13,05; 5: 114,30 x 16,32
Light sensitivity [LUX]
< 0.05
Current consumption [mA]
< 280; (with lens heating)
Ambient temperature [°C]
-40...85
Storage temperature [°C]
-40...100
Switch-on peak current [mA]
1000
Switch-on peak current duration [ms]
2
