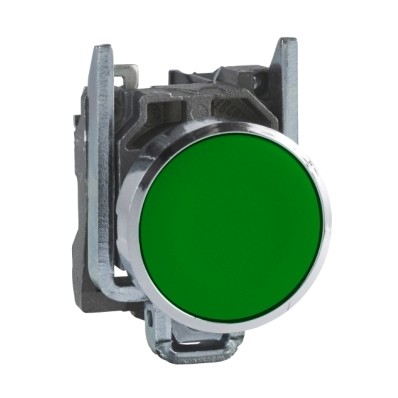

Schneider Electric XB4BA31 Harmony XB4 green flush pushbutton 22 mm spring return 1 NO. The Schneider Electric XB4BA31 is a complete Harmony XB4 pushbutton with a chromium plated metal bezel and Zamak fixing collar for standard 22.5 mm panel mounting. The XB4BA31 provides a green flush unmarked operator with spring return action and one slow-break NO contact, rated 10 A conventional free air thermal current, 600 V rated insulation voltage and 6 kV impulse withstand, using silver alloy (Ag/Ni) contacts and screw clamp terminals for 0.22 to 2.5 mm2 conductors. Mechanical durability is 10,000,000 cycles and the front face is sealed to IP66, IP67, IP69 and IP69K for operation from -40 to 70 degrees C. Panel builders in Egypt and the Gulf specify the XB4BA31 as the standard start or run button in motor control centres, pump and compressor panels, water treatment kiosks, cement plant local control stations and food and beverage machinery.
Details
- Brand: Schneider Electric
- Part number: XB4BA31
- Series: Harmony XB4
- Category: Pushbutton
Related Schneider Electric parts
- Harmony XB4 XB4BA42 red flush pushbutton 22 mm spring return 1 NC
- Harmony XB4 XB4BS8445 emergency stop pushbutton 40 mm red mushroom turn to release 1 NO + 1 NC
- Harmony XB4 XB4BVM3 green LED pilot light 22 mm 230...240 V AC
- Harmony XB4 XB4BVB4 red LED pilot light 22 mm 24 V AC/DC
- Schneider Electric XB4BA11 — Harmony XB4 Push Button, Flush, White, 22mm, Spring Return, 1NO
- Schneider Electric XB4BA21 — 22mm Metal Flush Push Button, Black, Unmarked, Spring Return, 1NO
- Schneider Electric XB4BA51 — Push-button, yellow flush, unmarked, 1 NO, 22.5mm
- Schneider Electric XB4BA61 — Harmony XB4 Metal Flush Blue Unmarked Spring Return Push Button 1NO
- Schneider Electric XB4BD21 — Harmony XB4 Selector Switch 2-Position Stay Put 1 NO Black Metal Bezel
- Schneider Electric XB4BD25 — Harmony XB4 selector switch 2 positions stay put 1NO+1NC
- XB4BD33 Selector switch, metal, black, 22mm, 3 positions, stay put, 2NO
- Schneider Electric XB4BD53 Selector Switch, 3-Position, Spring Return, 2 NO
Specifications
- Bezel material
- Chromium plated metal
- Product weight
- 0.08 kg
- Operator profile
- Green flush, unmarked
- Range of product
- Harmony XB4
- Type of operator
- spring return
- Contact operation
- Slow-break
- Contacts material
- Silver alloy (Ag/Ni)
- Mounting diameter
- 22.5 mm
- Mechanical durability
- 10000000 cycles
- Dimensions (H x W x D)
- 47 mm x 30 mm x 52 mm
- Connections - terminals
- Screw clamp terminals, 1 x 0.22...2 x 2.5 mm2 without cable end conforming to IEC 60947-1
- IP degree of protection
- IP66 conforming to IEC 60529, IP67, IP69, IP69K
- Manufacturer part number
- XB4BA31
- Product or component type
- Push-button
- Contacts type and composition
- 1 NO
- [Ui] rated insulation voltage
- 600 V (pollution degree 3) conforming to IEC 60947-1
- Ambient air temperature for operation
- -40...70 °C
- [Uimp] rated impulse withstand voltage
- 6 kV conforming to IEC 60947-1
- [Ith] conventional free air thermal current
- 10 A conforming to IEC 60947-5-1
