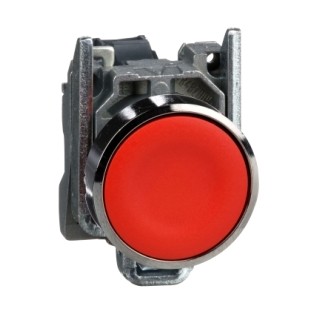

Schneider Electric XB4BA42 Harmony XB4 red flush pushbutton 22 mm spring return 1 NC. The Schneider Electric XB4BA42 is a Harmony XB4 complete pushbutton in chromium plated metal with a Zamak fixing collar and 22.5 mm mounting diameter. The XB4BA42 uses a red flush unmarked operator with spring return and a single slow-break NC contact with positive opening conforming to IEC 60947-5-1 appendix K, which is why it is chosen for stop commands. Ratings include 10 A conventional free air thermal current, 600 V rated insulation voltage, 6 kV impulse withstand, silver alloy (Ag/Ni) contacts, screw clamp terminals and 10,000,000 cycles mechanical durability. The unit is sealed to IP66, IP67, IP69 and IP69K and operates from -40 to 70 degrees C.
Details
- Brand: Schneider Electric
- Part number: XB4BA42
- Series: Harmony XB4
- Category: Pushbutton
Related Schneider Electric parts
- Harmony XB4 XB4BS8445 emergency stop pushbutton 40 mm red mushroom turn to release 1 NO + 1 NC
- Harmony XB4 XB4BVM3 green LED pilot light 22 mm 230...240 V AC
- Harmony XB4 XB4BVB4 red LED pilot light 22 mm 24 V AC/DC
- Schneider Electric XB4BA11 — Harmony XB4 Push Button, Flush, White, 22mm, Spring Return, 1NO
- Schneider Electric XB4BA21 — 22mm Metal Flush Push Button, Black, Unmarked, Spring Return, 1NO
- Schneider Electric XB4BA51 — Push-button, yellow flush, unmarked, 1 NO, 22.5mm
- Schneider Electric XB4BA61 — Harmony XB4 Metal Flush Blue Unmarked Spring Return Push Button 1NO
- Schneider Electric XB4BD21 — Harmony XB4 Selector Switch 2-Position Stay Put 1 NO Black Metal Bezel
- Schneider Electric XB4BD25 — Harmony XB4 selector switch 2 positions stay put 1NO+1NC
- XB4BD33 Selector switch, metal, black, 22mm, 3 positions, stay put, 2NO
- Schneider Electric XB4BD53 Selector Switch, 3-Position, Spring Return, 2 NO
- Schneider Electric XB4BG21 — 22.5mm Metal Key Switch Selector, 2-Position, 1NO, Key 455
Specifications
- Bezel material
- Chromium plated metal
- Product weight
- 0.08 kg
- Operating force
- 3.5 N NC changing electrical state
- Operator profile
- Red flush, unmarked
- Positive opening
- With conforming to IEC 60947-5-1 appendix K
- Range of product
- Harmony XB4
- Type of operator
- spring return
- Mounting diameter
- 22.5 mm
- Mechanical durability
- 10000000 cycles
- Terminals description
- ISO n°1 (21-22)NC
- Dimensions (H x W x D)
- 47 mm x 30 mm x 52 mm
- IP degree of protection
- IP66 conforming to IEC 60529, IP67, IP69, IP69K
- Manufacturer part number
- XB4BA42
- Product or component type
- Push-button
- Contacts type and composition
- 1 NC
- [Ui] rated insulation voltage
- 600 V (pollution degree 3) conforming to IEC 60947-1
- Ambient air temperature for operation
- -40...70 °C
- [Uimp] rated impulse withstand voltage
- 6 kV conforming to IEC 60947-1
- [Ith] conventional free air thermal current
- 10 A conforming to IEC 60947-5-1
