LC1D38ED

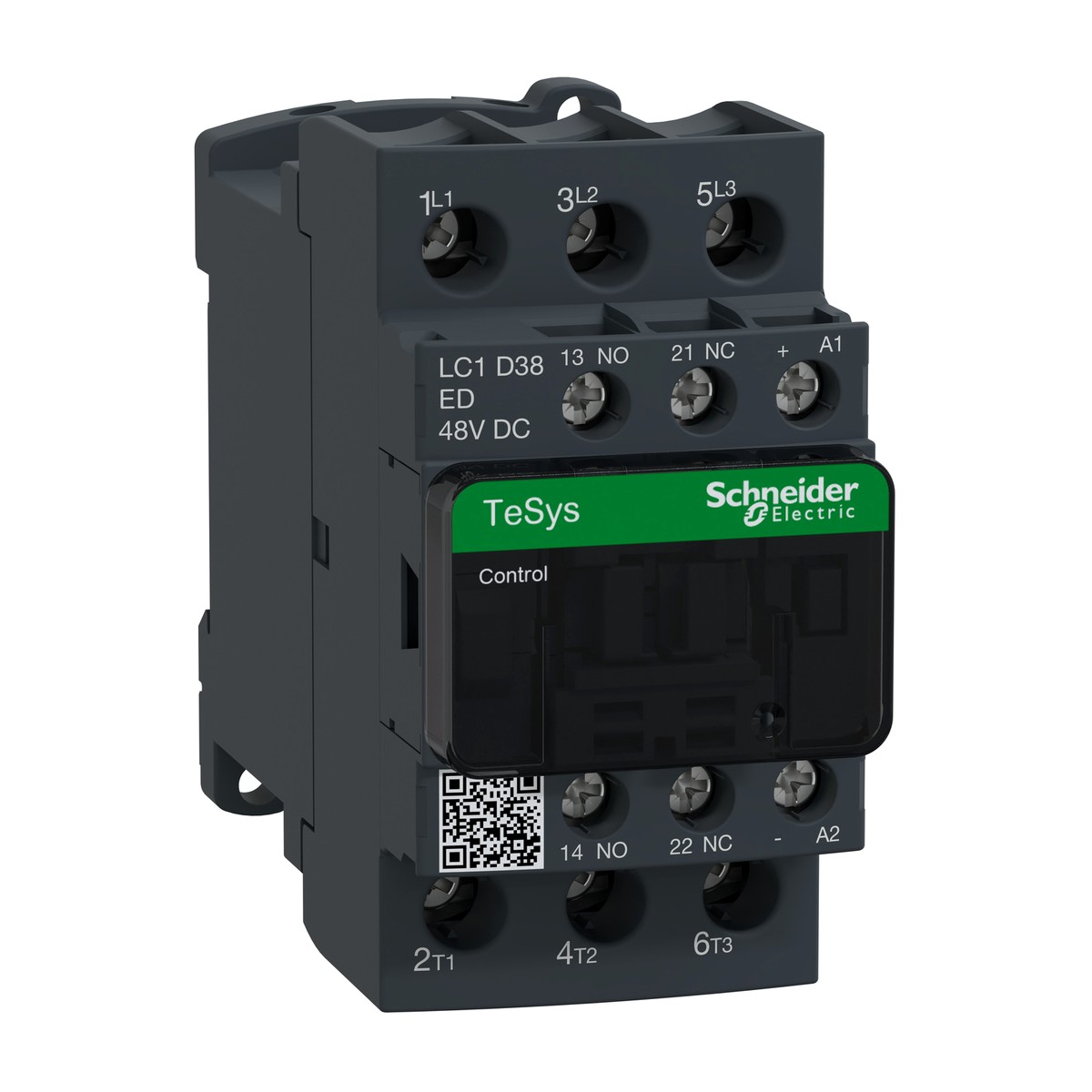

Schneider Electric LC1D38ED TeSys Deca contactor 38 A AC-3 3P (3NO) with 48 V DC coil. The Schneider Electric TeSys Deca LC1D38ED is a robust 3-pole IEC power contactor designed for reliable motor and load switching in industrial panels. Part of the renowned TeSys Deca range, this contactor features a 3P(3NO) pole configuration with a rated operational current of 38 A for AC-3 and AC-3e applications at <=440V. It operates with a 48 V DC control coil and includes convenient screw clamp terminals for secure wiring of both power and control circuits. The LC1D38ED is equipped with 1 NO + 1 NC auxiliary contacts, enhancing its versatility in control schemes. Capable of managing up to 18.5 KW at 380-400 V AC 50/60 Hz (AC-3), this contactor is ideal for demanding motor control applications in critical sectors across Egypt and the Gulf, such as pumps and fans in water treatment plants, conveyors in cement factories, compressors in oil and gas facilities, and general machinery in food & beverage or textile industries. Its IP20 front face protection, robust mechanical durability of 30 Mcycles, and electrical durability of 1.4 Mcycles ensure long-lasting performance. For dependable power switching solutions in diverse building services and industrial settings, request a quote for the Schneider Electric TeSys Deca LC1D38ED contactor today.
Details
- Brand: Schneider Electric
- Part number: LC1D38ED
- Series: TeSys Deca
- Category: Contactor
Related Schneider Electric parts
- TeSys Deca LC1D38EL contactor 38 A AC-3 3P with 48 V DC low consumption coil
- TeSys Deca LC1D38F7 contactor 38A AC-3 3P with 110V AC 50/60Hz coil
- Schneider Electric LC1D38FD — TeSys Deca LC1D contactor 3P 38A AC-3 with 110V DC coil
- TeSys Deca LC1D38FE7 contactor 38 A AC-3 3P with 115 V AC 50/60 Hz coil
- TeSys Deca LC1D38M7 Contactor, 3P, 38A AC-3, 220V AC 50/60Hz coil, screw clamp terminals
- Schneider Electric LC1D38MD — TeSys Deca LC1D contactor 38A AC-3/AC-3e 3P with 220V DC coil
- TeSys Deca LC1D38N7 contactor 38 A AC-3 3P with 415 V AC 50/60Hz coil
- TeSys Deca LC1D38P7 contactor 38 A AC-3 3P with 230 V AC coil
- TeSys Deca LC1D38Q7 contactor 38A AC-3 3P with 380V AC 50/60Hz coil
- TeSys Deca LC1D38U7 contactor 3P 38A AC-3/AC-3e 240V AC 50/60Hz coil screw clamp terminals
- TeSys Deca LC1D38V7 contactor 38 A AC-3e 3P with 400 V AC coil
- TeSys Deca LC1D40AB7 contactor 40 A AC-3 3P with 24V AC 50/60Hz coil
Specifications
- Depth
- 101 Mm
- Width
- 45 Mm
- Height
- 85 Mm
- Net weight
- 0.54 Kg
- Motor power kW
- 18.5 KW at 380...400 V AC 50/60 Hz (AC-3)
- Poles description
- 3P
- Utilisation category
- AC-3, AC-3e
- Contactor application
- Motor control, Resistive load
- Electrical durability
- 1.4 Mcycles 38 A AC-3 at Ue <= 440 V
- Mechanical durability
- 30 Mcycles
- Associated fuse rating
- 63 A gG at <= 690 V coordination type 2 for power circuit
- Connections - terminals
- Power circuit: screw clamp terminals 1 2.5…10 mm² - cable stiffness: flexible without cable end
- IP degree of protection
- IP20 front face conforming to IEC 60529
- Rated breaking capacity
- 550 A at 440 V for power circuit conforming to IEC 60947
- Manufacturer part number
- LC1D38ED
- Pole contact composition
- 3 NO
- [Uc] control circuit voltage
- 48 V DC
- Auxiliary contact composition
- 1 NO + 1 NC
- [Ui] rated insulation voltage
- Power circuit: 600 V CSA certified
- [Ie] rated operational current
- 38 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
- Permissible ambient air temperature around the device
- -40…60 °C
