LC1D38EL

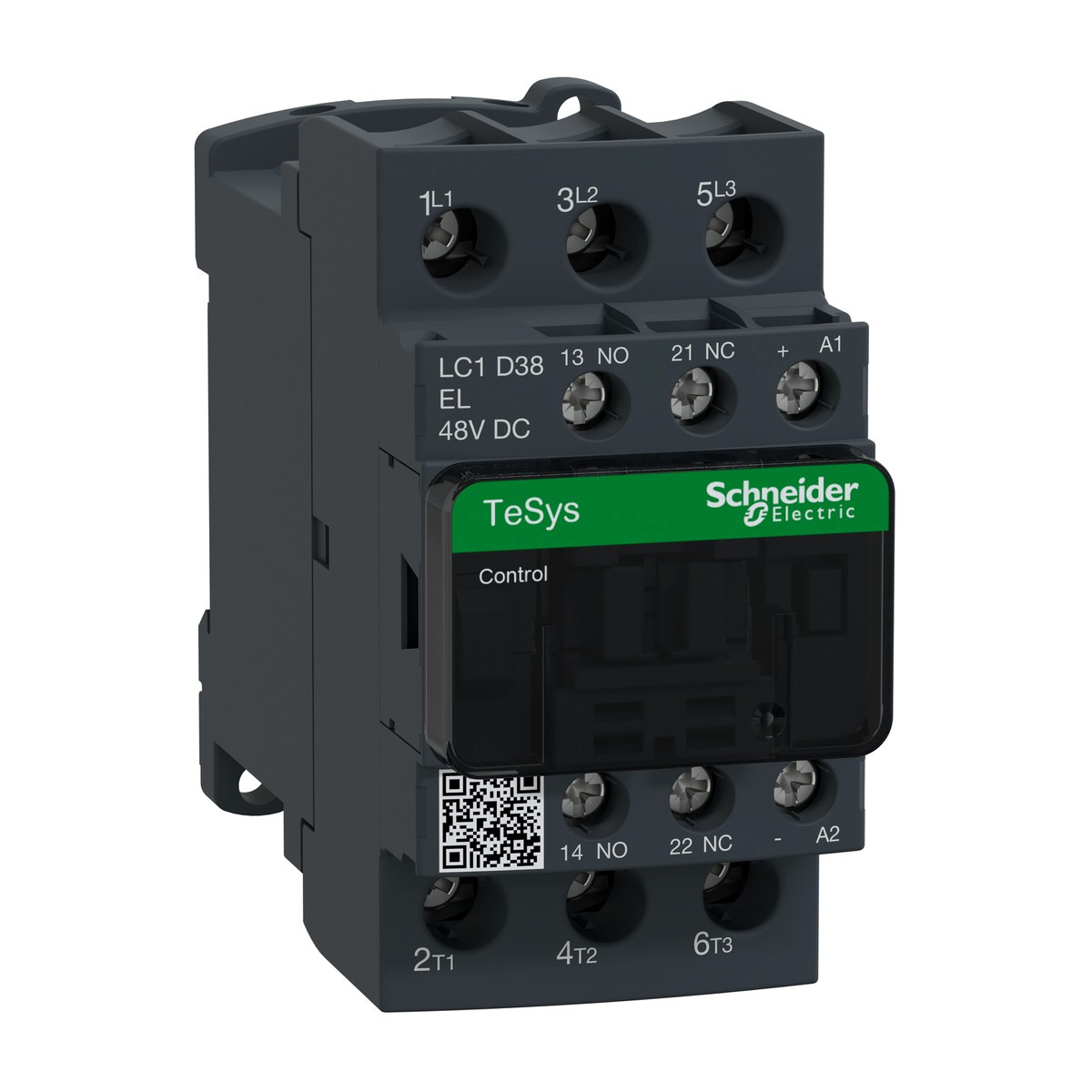

Schneider Electric LC1D38EL TeSys Deca contactor 38 A AC-3 3P with 48 V DC low consumption coil. The Schneider Electric LC1D38EL contactor from the TeSys Deca range is a robust and reliable 3-pole device engineered for efficient motor control and switching of resistive loads in industrial and commercial panels. This model features three normally open (3 NO) power contacts and an integrated 1 NO + 1 NC auxiliary contact for versatile control schemes. It is rated for a 38 A operational current under AC-3/AC-3e utilisation categories at up to 440 V AC, making it suitable for a wide array of medium-power applications. The LC1D38EL stands out with its 48 V DC low consumption coil, ensuring energy efficiency and stable operation. Screw clamp terminals on both control and power circuits provide secure and straightforward wiring. With a compact design (85 mm H x 45 mm W x 101 mm D) and IP20 front face protection, it's ideal for integration into control cabinets across the Gulf and Egypt. Typical applications include motor starters for pumps, fans, and compressors in sectors like oil and gas, water treatment, cement, food and beverage, and building services. Its strong mechanical durability (30 Mcycles) ensures a long service life.
Details
- Brand: Schneider Electric
- Part number: LC1D38EL
- Series: TeSys Deca
- Category: Contactor
Related Schneider Electric parts
- TeSys Deca LC1D38F7 contactor 38A AC-3 3P with 110V AC 50/60Hz coil
- Schneider Electric LC1D38FD — TeSys Deca LC1D contactor 3P 38A AC-3 with 110V DC coil
- TeSys Deca LC1D38FE7 contactor 38 A AC-3 3P with 115 V AC 50/60 Hz coil
- TeSys Deca LC1D38M7 Contactor, 3P, 38A AC-3, 220V AC 50/60Hz coil, screw clamp terminals
- Schneider Electric LC1D38MD — TeSys Deca LC1D contactor 38A AC-3/AC-3e 3P with 220V DC coil
- TeSys Deca LC1D38N7 contactor 38 A AC-3 3P with 415 V AC 50/60Hz coil
- TeSys Deca LC1D38P7 contactor 38 A AC-3 3P with 230 V AC coil
- TeSys Deca LC1D38Q7 contactor 38A AC-3 3P with 380V AC 50/60Hz coil
- TeSys Deca LC1D38U7 contactor 3P 38A AC-3/AC-3e 240V AC 50/60Hz coil screw clamp terminals
- TeSys Deca LC1D38V7 contactor 38 A AC-3e 3P with 400 V AC coil
- TeSys Deca LC1D40AB7 contactor 40 A AC-3 3P with 24V AC 50/60Hz coil
- TeSys Deca LC1D40AE7 contactor 40 A AC-3 3P with 48 V AC 50/60Hz coil
Specifications
- Depth
- 101 Mm
- Width
- 45 Mm
- Height
- 85 Mm
- Net weight
- 0.54 Kg
- Motor power kW
- 18.5 KW at 380...400 V AC 50/60 Hz (AC-3)
- Poles description
- 3P
- Control circuit type
- DC low consumption
- Utilisation category
- AC-4, AC-1, AC-3, AC-3e
- Electrical durability
- 1.4 Mcycles 38 A AC-3 at Ue <= 440 V
- Mechanical durability
- 30 Mcycles
- Connections - terminals
- screw clamp terminals
- IP degree of protection
- IP20 front face conforming to IEC 60529
- Rated breaking capacity
- 550 A at 440 V for power circuit conforming to IEC 60947
- Manufacturer part number
- LC1D38EL
- Pole contact composition
- 3 NO
- [Uc] control circuit voltage
- 48 V DC
- Auxiliary contact composition
- 1 NO + 1 NC
- [Ie] rated operational current
- 38 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
- [Ue] rated operational voltage
- Power circuit: <= 690 V AC 25...400 Hz
- Permissible ambient air temperature around the device
- -40…60 °C
