GV2ME02

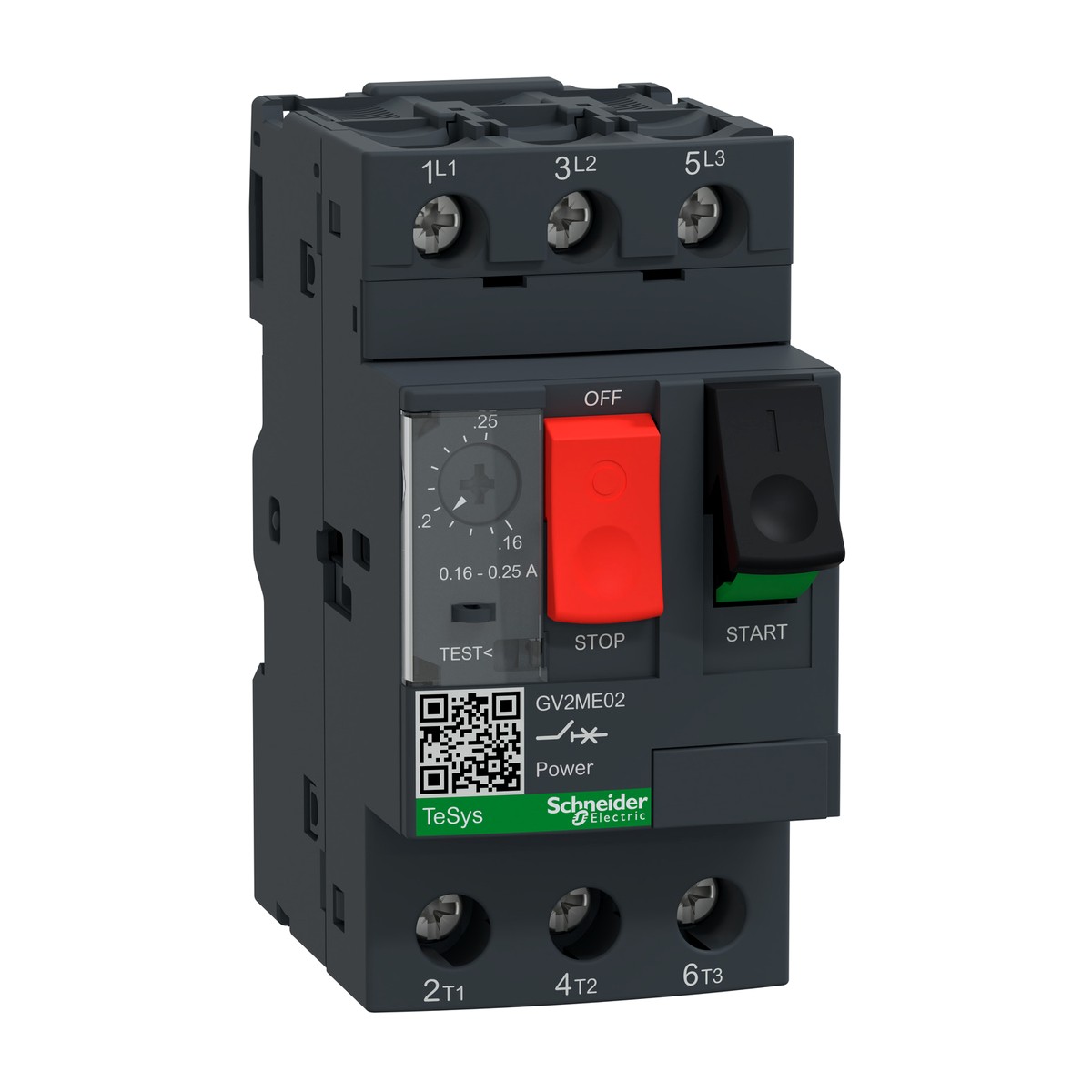

Schneider Electric GV2ME02 TeSys Deca GV2ME Motor Circuit Breaker 3P 0.16-0.25A Thermal Magnetic. The Schneider Electric GV2ME02 is a robust 3-pole magneto-thermal motor circuit breaker from the acclaimed TeSys Deca and TeSys GV2 series, engineered for reliable motor protection. This essential device features an adjustable thermal protection range from 0.16 to 0.25 A, making it suitable for a variety of small motor applications, including those rated at 0.06 kW at 400/415 V AC. It offers a formidable breaking capacity of 100 kA Icu at 400/415 V AC 50/60 Hz, ensuring comprehensive short-circuit protection. With convenient push-button control and secure screw clamp terminals, installation and operation are straightforward. The GV2ME02 is IP20 rated and designed for DIN rail or panel mounting, providing versatility in different setups. Its integrated phase failure sensitivity enhances safety by preventing motor damage from imbalanced supplies. Ideal for the demanding environments of cement plants, oil and gas facilities, water treatment stations, food and beverage processing, textiles, and building services across Egypt and the Gulf region, this Schneider Electric motor circuit breaker delivers consistent performance and critical safeguards for your industrial machinery.
Details
- Brand: Schneider Electric
- Part number: GV2ME02
- Series: TeSys Deca, TeSys GV2
- Category: Motor Circuit Breaker
Related Schneider Electric parts
- Schneider Electric GV2ME03 — TeSys GV2 motor circuit breaker 3P 0.25-0.4A thermal magnetic screw clamp button control
- TeSys Deca GV2ME04 3P Motor Circuit Breaker 0.4-0.63A
- Schneider Electric GV2ME05 — TeSys GV2ME motor circuit breaker 3P 0.63-1A thermal-magnetic
- TeSys Deca GV2ME06 motor circuit breaker 3P 1-1.6A thermal magnetic
- TeSys GV2ME07 Motor Circuit Breaker 3P 1.6-2.5A Thermal Magnetic
- TeSys Deca GV2ME32 Motor Circuit Breaker 3P 24-32A Thermal Magnetic Screw Clamp
- Schneider Electric GV2P01 — TeSys GV2 Motor Circuit Breaker 0.1-0.16A 3P Thermal-Magnetic
- TeSys Deca GV2P02 motor circuit breaker 3P 0.16-0.25A thermal magnetic
- Schneider Electric GV2P03 — TeSys Deca motor circuit breaker 3P 0.25-0.4A thermal magnetic screw clamp rotary handle
- Schneider Electric GV2P04 — TeSys Deca Motor circuit breaker, 3P, 0.4-0.63A, thermal magnetic, screw clamp, rotary handle
- Schneider Electric GV2P05 — TeSys Deca motor circuit breaker 3P 0.63-1A thermal magnetic
- Schneider Electric GV2P06 — TeSys Deca GV2P Motor Circuit Breaker 3P 1 to 1.6A Thermal Magnetic Screw Clamp Rotary Handle
Specifications
- Depth
- 78.5 Mm
- Width
- 45 Mm
- Height
- 89 Mm
- Net weight
- 0.26 Kg
- Fixing mode
- 35 mm symmetrical DIN rail: clipped, Panel: screwed (with adaptor plate)
- Control type
- Push-button
- Motor power kW
- 0.06 KW at 400/415 V AC 50/60 Hz
- Breaking capacity
- 100 KA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
- Poles description
- 3P
- Connections - terminals
- Power circuit: screw clamp terminal
- IP degree of protection
- IP20 conforming to IEC 60529
- Manufacturer part number
- GV2ME02
- Magnetic tripping current
- 3.08 A
- Phase failure sensitivity
- Yes conforming to IEC 60947-4-1
- Thermal protection adjustment range
- 0.16…0.25 A conforming to IEC 60947-2
- Ambient air temperature for operation
- -20…60 °C
