ATV950U40N4E

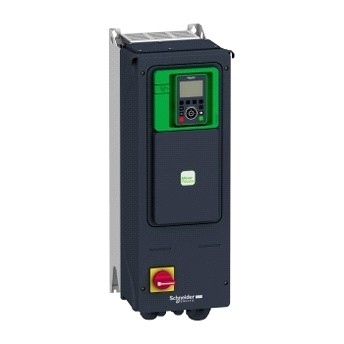

Schneider Electric ATV950U40N4E Altivar Process ATV950 Variable Speed Drive 4kW 400/480V with Braking Unit/Switch IP55. This Altivar Process ATV900 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It is suitable for motors with power rating up to 4kW/5HP for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 3kW for applications requiring significant overload (up to 150%). It works at a rated supply voltage from 380Vac to 480Vac. This variable speed / frequency drive (VSD / VFD) is specifically designed for industrial processes. In the following market segments: oil and gas, mining, minerals and metals, food and beverage water and wastewater. It offers high motor performance on any motor and total control of any kind of coupling in master/slave applications. Network services help ensure operation continuity even in case of connection breakdown. Web server and data logging help reduce downtime through fast troubleshooting and preventive maintenance. Its advanced connectivity, including EtherNet/IP and Modbus TCP, allows deep integration into automation architectures.
Details
- Brand: Schneider Electric
- Part number: ATV950U40N4E
- Series: Altivar Process ATV900
- Category: Variable Frequency Drive
Related Schneider Electric parts
- Schneider Electric ATV950U40N4U — Altivar Process ATV950 Variable Speed Drive, 4kW, 380-480V, IP55
- ATV950U55N4E variable speed drive 5,5kW 400/480V with braking unit/switch IP55
- Schneider Electric ATV950U55N4U — Altivar Process ATV950 Variable Speed Drive 5.5kW, 7.5hp, 380-480V, IP55
- Schneider Electric ATV950U55N4EU — Variable speed drive, Altivar Process ATV900, ATV950, 5.5kW/7.5 hp -380/480 V, IP55/UL type12, disc.switch
- Schneider Electric ATV950U75N4 — Altivar Process ATV950 Variable Speed Drive, 7.5 kW, 400/480 V, with braking unit, IP55
- Schneider Electric ATV950U75N4E — variable speed drive - ATV950 - 7,5kW - 400/480V- w braking unit/switch - IP55
- Schneider Electric ATV950D11N4E — Altivar Process ATV950 Variable Speed Drive 11kW 400/480V IP55
- Schneider Electric ATV950D11N4EU — Variable speed drive, Altivar Process ATV900, ATV950, 11kW/15 hp, 380/480 V, IP55/UL type12, disc.switch
- Schneider Electric ATV950D11N4 — Altivar Process ATV950 Variable Speed Drive 11kW 400/480V with Braking Unit IP55
- Schneider Electric ATV950D15N4E — Altivar Process ATV950 Variable Speed Drive 15kW 400/480V with Braking Unit/Switch IP55
- Schneider Electric ATV950D15N4U — Altivar Process ATV950 Variable Speed Drive 15kW 380-480V IP55
- Schneider Electric ATV950D15N4 — Altivar Process ATV950 Variable Speed Drive 15kW 400/480V with Braking Unit
Request a quote for ATV950U40N4E
Specifications
- Depth
- 300 mm
- Width
- 264 mm
- Height
- 678 mm
- Weight
- 10.6 kg
- IP Protection
- IP55
- Safety Function
- STO (Safe Torque Off) SIL 3
- Type of Cooling
- Forced convection
- Number of Phases
- 3 phases
- Supply Frequency
- 50...60 Hz
- Prospective Line Isc
- 50 kA
- Rated Supply Voltage
- 380...480 V
- Output Frequency Range
- 0.1...599 Hz
- Communication Protocols
- Ethernet/IP, Modbus serial, Modbus TCP
- Manufacturer part number
- ATV950U40N4E
- Motor Power (Heavy Duty)
- 3 kW (4 hp)
- Line Current (Heavy Duty)
- 6 A at 380 V, 5.4 A at 480 V
- Motor Power (Normal Duty)
- 4 kW (5 hp)
- Line Current (Normal Duty)
- 7.6 A at 380 V, 6.7 A at 480 V
- Apparent Power (Heavy Duty)
- 4.5 kVA at 480 V
- Nominal Switching Frequency
- 4 kHz
- Apparent Power (Normal Duty)
- 5.6 kVA at 480 V
- Switching Frequency (Adjustable)
- 2...16 kHz
- Max Transient Current (Heavy Duty)
- 10.8 A during 60 s
- Max Transient Current (Normal Duty)
- 11.2 A during 60 s
- Continuous Output Current (Heavy Duty)
- 7.2 A at 4 kHz
- Continuous Output Current (Normal Duty)
- 9.3 A at 4 kHz
