ATV950U22N4

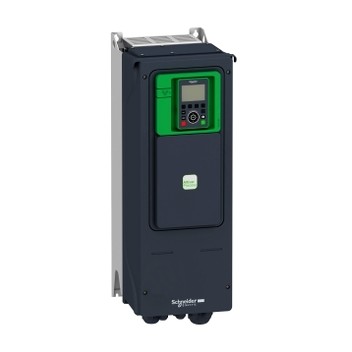

Schneider Electric ATV950U22N4 Variable speed drive, Altivar Process ATV900, ATV950, 2,2 kW, 400/480 V, with braking unit, IP55. This Altivar Process ATV900 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It is suitable for motors with power rating up to 2.2kW/3HP for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 1.5kW/2HP for applications requiring significant overload (up to 150%). It works at a rated supply voltage from 380Vac to 480Vac. This variable speed / frequency drive (VSD / VFD) is specifically designed for industrial processes. In the following market segments: oil and gas, mining, minerals and metals, food and beverage water and wastewater. It offers high motor performance on any motor and total control of any kind of coupling in master/slave applications. Network services help ensure operation continuity even in case of connection breakdown. Web server and data logging help reduce downtime through fast troubleshooting and preventive maintenance. Its advanced connectivity, including EtherNet/IP and Modbus TCP, allows deep integration into automation architectures.
Details
- Brand: Schneider Electric
- Part number: ATV950U22N4
- Series: Altivar Process ATV900
- Category: VFD
Related Schneider Electric parts
- Schneider Electric ATV950U15N4E — variable speed drive, ATV950, 1,5kW, 400/480V, w braking unit/ switch, IP55
- Schneider Electric ATV950U15N4U — Altivar Process ATV900 ATV950 Variable Speed Drive 1.5kW 380-480V IP55
- Schneider Electric ATV950U15N4EU — Variable speed drive, Altivar Process ATV900, ATV950, 1.5kW/2 hp -380/480 V, IP55/UL type12, disc.switch
- Schneider Electric ATV950U22N4E — Altivar Process ATV950 Variable Speed Drive 2.2 kW 400/480V with Braking Unit/Switch IP55
- Altivar Process ATV900 Variable Speed Drive ATV950U40N4 4kW 3-phase
- Schneider Electric ATV950U30N4E — Altivar Process ATV950 Variable Speed Drive 3 kW, 400/480V, IP55 with Braking Unit/Switch
- Schneider Electric ATV950U55N4 — Altivar Process ATV950 Variable Speed Drive 5.5 kW 400/480 V IP55
- Schneider Electric ATV950U30N4 — Altivar Process ATV950 Variable Speed Drive 3kW 400/480V with Braking Unit IP55
- Schneider Electric ATV950U40N4E — Altivar Process ATV950 Variable Speed Drive 4kW 400/480V with Braking Unit/Switch IP55
- Schneider Electric ATV950U40N4U — Altivar Process ATV950 Variable Speed Drive, 4kW, 380-480V, IP55
- ATV950U55N4E variable speed drive 5,5kW 400/480V with braking unit/switch IP55
- Schneider Electric ATV950U55N4U — Altivar Process ATV950 Variable Speed Drive 5.5kW, 7.5hp, 380-480V, IP55
Request a quote for ATV950U22N4
Specifications
- Network phases
- 3 phases
- Rated supply voltage
- 380...480 V
- IP degree of protection
- IP55
- Manufacturer part number
- ATV950U22N4
- Motor power (Heavy Duty)
- 1.5 kW
- Motor power (Normal Duty)
- 2.2 kW
- Nominal switching frequency
- 4 kHz
- Continuous output current (Normal Duty)
- 5.6 A
