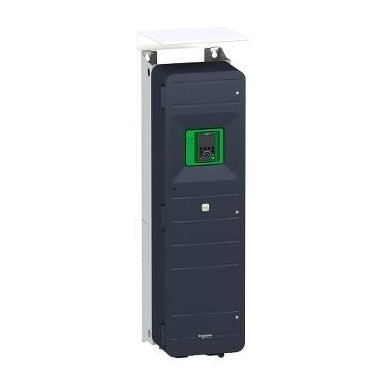

ATV950D90N4U
Schneider Electric ATV950D90N4U Altivar Process ATV950 Variable Speed Drive 90kW 380-480V IP55/UL Type 12. Motor power (Heavy duty): 75 kW; Motor power (Normal duty): 90 kW; Max. output frequency: 599 Hz.
Details
- Brand: Schneider Electric
- Part number: ATV950D90N4U
- Series: Altivar Prozess ATV900
- Category: VFD
Related Schneider Electric parts
- Schneider Electric ATV930D55S6 — Frequenzumrichter, Altivar Process ATV900, ATV930, 75 HP, 600 V, IP20
- Schneider Electric ATV950D45N4U — Altivar Process ATV950 Variable Speed Drive 45kW/60HP 380-480V IP55/UL type 12
- Schneider Electric ATV660C11Q4X1 — Variable speed drive, Altivar Process ATV600, ATV660 Compact Drive System, 110/90 kW, 400V, CE, IP23
- Altivar 212 Variable Speed Drive ATV212HD37N4 - 37kW 50hp
- Schneider Electric ATV212HD45N4 — Variable Speed Drive Altivar 212 45kW 60hp 480V 3 Phases with EMC IP21
- Schneider Electric ATV212W075N4 — Variable speed drive ATV212 - 0.75kW - 1hp - 480V - 3ph - EMC class C2 - IP55
- Schneider Electric ATV212WU22N4 — ATV212 Variable Speed Drive 2.2kW 3hp 480V 3-phase IP55
- Schneider Electric ATV212WU40N4 — variable speed drive ATV212 - 4kW - 5hp - 480V - 3ph - EMC class C2 - IP55
- Schneider Electric ATV212WU15N4 — Altivar 212 Variable Speed Drive 1.5kW 480V 3-phase IP55
- ATV212WU55N4 variable speed drive ATV212 - 5.5kW - 7.5hp - 480V - 3ph - EMC class C2 - IP55
- Schneider Electric ATV212WU30N4C — Altivar 212 Variable Speed Drive 3kW 480V 3ph EMC C1 IP55
- Schneider Electric ATV212WD37N4 — Altivar 212 Variable Speed Drive 37kW 50hp 480V 3-Phase IP55
Request a quote for ATV950D90N4U
Specifications
- Phases
- 3
- IP protection
- IP55
- UL protection
- Type 12
- Max. output frequency
- 599 Hz
- Rated operating voltage
- 380-480 V
- Manufacturer part number
- ATV950D90N4U
- Motor power (Heavy duty)
- 75 kW
- Motor power (Normal duty)
- 90 kW
- Rated switching frequency
- 2.5 kHz
- Output current (Heavy duty)
- 145 A
- Output current (Normal duty)
- 173 A
- Line current (Heavy duty, 380V)
- 134.3 A
- Line current (Heavy duty, 480V)
- 118.1 A
- Line current (Normal duty, 380V)
- 156.2 A
- Line current (Normal duty, 480V)
- 135.8 A
- Apparent power (Heavy duty, 480V)
- 98.2 kVA
- Apparent power (Normal duty, 480V)
- 112.9 kVA
