ATV212WU15N4

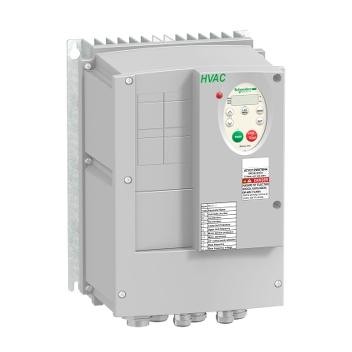

Schneider Electric ATV212WU15N4 Altivar 212 Variable Speed Drive 1.5kW 480V 3-phase IP55. This Altivar 212 variable speed drive can feed 3-phase asynchronous motors. Its protection index is IP55 and it has a built-in EMC filter. It works at a rated power up to 1.5kW / 2hp and a rated voltage from 380V to 480V AC. Its design is based on eco-energy with a reduction in energy consumption of up to 70% compared to a conventional control system. Thanks to its cable temperature rise reduction technology, the Altivar 212 drive offers immediate, disturbance-free operation avoiding additional options such as a line choke or DC choke to deal with current harmonics. It weighs 7kg and its dimensions are, 215mm wide, 297mm high, 192mm deep. It is specifically designed for the most common fluid management applications in tertiary sector buildings (HVAC) like heating, ventilation, air conditioning and pumping. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions). It is also CE, UL, CSA, C-Tick and NOM certified. The Altivar 212 offers optional motor chokes which can increase the maximum cable lengths between the drive and the motor and limit disturbance at the motor terminals. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. The Altivar 212 drive can easily be adapted to all building management systems thanks to its numerous functions and communication protocols integrated as standard, Modbus, METASYS N2, APOGEE FLN P1 and BACnet. It is eco-friendly and complies with directives such as RoHS, WEEE, etc.relating to environmental protection.
Details
- Brand: Schneider Electric
- Part number: ATV212WU15N4
- Series: Altivar 212
- Category: VFD
Related Schneider Electric parts
- ATV212WU55N4 variable speed drive ATV212 - 5.5kW - 7.5hp - 480V - 3ph - EMC class C2 - IP55
- Schneider Electric ATV212WU30N4C — Altivar 212 Variable Speed Drive 3kW 480V 3ph EMC C1 IP55
- Schneider Electric ATV212WD37N4 — Altivar 212 Variable Speed Drive 37kW 50hp 480V 3-Phase IP55
- Altivar 212 Variable Speed Drive ATV212WD11N4 - 11kW - 15hp - 480V - 3ph - EMC C2 - IP55
- Schneider Electric ATV212WD15N4C — Altivar 212 Variable Speed Drive ATV212 - 15 kW - 20 hp
- Altivar 212 Variable Speed Drive ATV212WD75N4, 75kW, 480V, IP55, EMC C2
- Altivar 212 Variable Speed Drive ATV212W075N4C, 0.75kW, 480V, 3-phase
- Schneider Electric ATV212WD18N4 — Variable Speed Drive ATV212 - 18.5kW - 25hp - 480V - 3ph - EMC class C2 - IP55
- Schneider Electric ATV212WU22N4C — Altivar 212 Variable Speed Drive 2.2 kW 3hp IP55
- Schneider Electric ATV212WD22N4 — Altivar 212 Variable Speed Drive ATV212 - 22kW - 30hp
- ATV212WU15N4C Variable Speed Drive 1.5kW 2hp 480V 3ph EMC class C1 IP55
- ATV212WU55N4C variable speed drive ATV212 - 5.5kW - 7.5hp - 480V - 3ph - EMC class C1 - IP55
Request a quote for ATV212WU15N4
Specifications
- Phases
- 3
- Motor Power
- 1.5 kW (2 hp)
- Line Current
- 2.5 A (at 480 V), 3.2 A (at 380 V)
- IP Protection
- IP55
- Apparent Power
- 2.8 kVA (at 380 V)
- EMC Filter Class
- C2
- Supply Frequency
- 50...60 Hz
- Rated Supply Voltage
- 380...480 V
- Supply Voltage Limits
- 323...528 V
- Output Frequency Range
- 0.5...200 Hz
- Communication Protocols
- METASYS N2, APOGEE FLN, Modbus, BACnet, LonWorks
- Manufacturer part number
- ATV212WU15N4
- Continuous Output Current
- 3.7 A (at 380 V/460 V)
