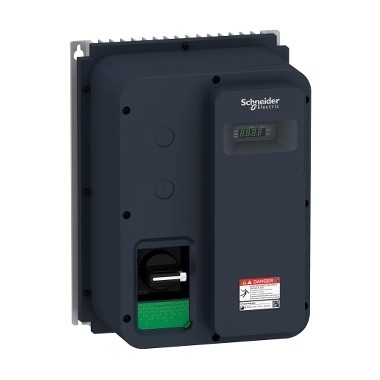

Schneider Electric ATV320U15N4WS Variable Speed Drive
Schneider Electric ATV320U15N4WS Variable speed drive, Altivar Machine ATV320, 1.5 kW, 380...500 V, 3 phases, enclosed. Altivar Machine ATV320 range is an offer of variable speed drives designed for Original Equipment Manufacturers (OEMs). This ATV320 drive can feed 3-phase synchronous and asynchronous motors. It works at a rated power up to 1.5kW, and a rated voltage from 380V to 500V. Altivar high IP offers washable drives for harsh environments, if users want to clean the dust and chemical pollution outside of drives. It is delivered without fan, with embedded EMC C2 filter and it provides IP65 protection. It integrates as standard Modbus and CANopen communication protocols with access via the RJ45 connector on the front of the drive. It weighs 6.4kg. The drive software includes 5 safety functions that help machines meet safety requirements. These safety functions are configured using SoMove software. This Altivar Machine ATV320 is designed for conveyors, carton packers, gantry cranes, woodworking, metal processing, fans, Food & Beverage industry. It conforms to IEC, UL, TUV, KC and other international standards. EcoStruxure Machine software compatibility enables developping, configuring and commissioning the entire machine in a single software environment, including logic, motion control, HMI and related network automation functions. It is delivered in 2 packages. ATV320 can be installed alone or side by side in a multi-drive configuration. The Altivar Machine ATV320 series focus on easy integration for simple and advanced machine requirements with proven motor control and connectivity. ATV320 drives are specifically designed for material handling, packaging, textiles, hoisting, mechanical actuators, and material working.
Details
- Brand: Schneider Electric
- Part number: ATV320U15N4WS
- Series: Altivar Machine ATV320
- Category: VFD
Category
Altivar Machine ATV320 & ATV340 Drives
Related Schneider Electric parts
- Schneider Electric ATV320U22N4W — Altivar Machine ATV320 Frequency Inverter 2.2kW 400V 3-phase IP66
- Schneider Electric ATV320U22N4WS — Variable speed drive, Altivar Machine ATV320, 2.2 kW, 380...500 V, 3 phases, enclosed, IP65
- Schneider Electric ATV320U30N4W — Altivar Machine ATV320 Variable Speed Drive 3 kW 380-500 V Enclosed
- Schneider Electric ATV320U30N4WS — Altivar Machine ATV320 Variable Speed Drive 3 kW 380-500 V 3-Phase Enclosed
- Schneider Electric ATV320U40N4W — Frequenzumrichter ATV320, 4kW, 400V, 3 phasig, IP66
- Schneider Electric ATV320U40N4WS — Altivar Machine ATV320 Variable Speed Drive, 4kW, 380-500V, IP65
- Altivar Machine ATV320 Variable Speed Drive ATV320U55N4W 5.5 kW
- Schneider Electric ATV320U55N4WS — Variable speed drive, Altivar Machine ATV320, 5.5 kW, 380...500 V, 3 phases, enclosed
- Schneider Electric ATV320U75N4W — Altivar Machine ATV320 Variable Speed Drive, 7.5 kW, 380-500 V, 3 phases, Enclosed
- Schneider Electric ATV320U07S6C — Variable Speed Drive ATV320 - 0.75 kW - 600 V - 3-phase - Compact
- Schneider Electric ATV320U15S6C — Altivar Machine ATV320 Variable Speed Drive 1.5 kW
- Schneider Electric ATV320U40S6C — Altivar Machine ATV320 Variable Speed Drive 4 kW, 525...600 V, 3 phases
Request a quote for ATV320U15N4WS
Specifications
- Width
- 250 mm
- Height
- 340 mm
- Motor power
- 1.5 kW
- IP protection
- IP65
- Apparent power
- 4.2 kVA
- EMC filter class
- C2
- Network frequency
- 50...60 Hz
- Prospective line Isc
- 5 kA
- Rated supply voltage
- 380...500 V
- Maximum input current
- 6.4 A
- Maximum output voltage
- 500 V
- Nominal output current
- 4.1 A
- Manufacturer part number
- ATV320U15N4WS
- Maximum output frequency
- 0.599 kHz
- Number of analogue inputs
- 3
- Number of discrete inputs
- 7
- Number of analogue outputs
- 1
- Number of discrete outputs
- 3
- Nominal switching frequency
- 4 kHz
- Power dissipation (self-cooled)
- 56.0 W
