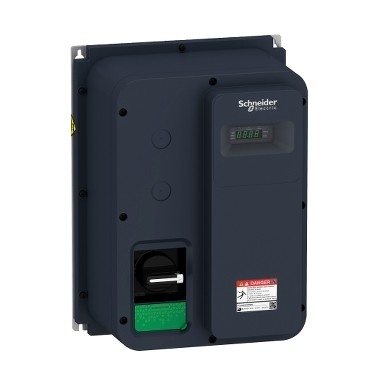

Schneider Electric ATV320U07M2WS Variable Speed Drive
Schneider Electric ATV320U07M2WS Altivar Machine ATV320 Variable Speed Drive 0.75 kW, 200-240V 1-phase, IP65 Enclosed. Altivar Machine ATV320 range is an offer of variable speed drives designed for Original Equipment Manufacturers (OEMs). This ATV320 drive can feed single-phase synchronous and asynchronous motors. It works at a rated power up to 0.75kW, and a rated voltage from 200V to 240V. Altivar high IP offers washable drives for harsh environments, if users want to clean the dust and chemical pollution outside of drives. It is delivered without fan, with embedded EMC C2 filter and it provides IP66 protection. It integrates as standard Modbus and CANopen communication protocols with access via the RJ45 connector on the front of the drive. It weighs 5.5kg. The drive software includes 5 safety functions that help machines meet safety requirements. These safety functions are configured using SoMove software. This Altivar Machine ATV320 is designed for conveyors, carton packers, gantry cranes, woodworking, metal processing, fans, Food & Beverage industry. It conforms to IEC, UL, TUV, KC and other international standards. EcoStruxure Machine software compatibility enables developping, configuring and commissioning the entire machine in a single software environment, including logic, motion control, HMI and related network automation functions. It is delivered in 2 packages. ATV320 can be installed alone or side by side in a multi-drive configuration. The Altivar Machine ATV320 series focus on easy integration for simple and advanced machine requirements with proven motor control and connectivity. ATV320 drives are specifically designed for material handling, packaging, textiles, hoisting, mechanical actuators, and material working.
Details
- Brand: Schneider Electric
- Part number: ATV320U07M2WS
- Series: Altivar Machine ATV320
- Category: VFD
Category
Altivar Machine ATV320 & ATV340 Drives
Related Schneider Electric parts
- Schneider Electric ATV320U11M2W — Variable speed drive, Altivar Machine ATV320, 1.1 kW, 200...240 V, 1 phase, enclosed
- Schneider Electric ATV320U11M2WS — Variable speed drive, Altivar Machine ATV320, 1.1 kW, 200-240 V, 1 phase, enclosed, IP65
- Schneider Electric ATV320U15M2W — Variable speed drive, Altivar Machine ATV320, 1.5 kW, 200...240 V, 1 phase, enclosed
- Schneider Electric ATV320U22M2W — Variable speed drive, Altivar Machine ATV320, 2.2 kW, 200...240 V, 1 phase, enclosed
- Schneider Electric ATV320D18N4C — Altivar Machine ATV320 Variable Speed Drive 18.5 kW
- Schneider Electric ATV320U04N4W — Altivar Machine ATV320 Variable Speed Drive 0.37kW 380-500V 3-phase Enclosed
- Schneider Electric ATV320U04N4WS — Variable speed drive, Altivar Machine ATV320, 0.37 kW, 380...500 V, 3 phases, enclosed, IP65
- Schneider Electric ATV320U06N4W — Variable speed drive, Altivar Machine ATV320, 0.55 kW, 380...500 V, 3 phases, enclosed
- Schneider Electric ATV320U06N4WS — Altivar Machine ATV320 Variable Speed Drive 0.55 kW, 380-500 V, 3 phases, IP65
- Schneider Electric ATV320U07N4W — Variable speed drive, Altivar Machine ATV320, 0.75 kW, 380...500 V, 3 phases, enclosed
- Schneider Electric ATV320U07N4WS — Altivar Machine ATV320 Variable Speed Drive 0.75 kW 380-500V 3-phase IP65
- Schneider Electric ATV320U11N4WS — Variable speed drive, Altivar Machine ATV320, 1.1 kW, 380...500 V, 3 phases, enclosed, IP65
Request a quote for ATV320U07M2WS
Specifications
- Variant
- With disconnect switch
- EMC filter
- Class C2 integrated
- Net Weight
- 5.5 kg
- Application
- Complex machines
- Motor power
- 0.75 kW heavy duty
- Product type
- Variable speed drive
- Brake chopper
- Integrated
- Maximum Depth
- 182.0 mm
- Maximum Width
- 250 mm
- Mounting mode
- Wall mount
- Apparent power
- 2.0 kVA (240 V heavy duty)
- Maximum Height
- 340 mm
- Network frequency
- 50...60 Hz
- Power dissipation
- 45.0 W (200 V 4 kHz, Self-cooled)
- Rated supply voltage
- 200...240 V
- Analogue input number
- 3
- Discrete input number
- 7
- Analogue output number
- 1
- Communication protocol
- Modbus serial, CANopen
- Discrete output number
- 3
- Nominal output current
- 1.9 A
- IP degree of protection
- IP65
- Manufacturer part number
- ATV320U07M2WS
- Maximum output frequency
- 0.599 kHz
- Nominal switching frequency
- 4 kHz
- Safety function Safe Stop 1 (SS1)
- True
- Safety function Safe Torque Off (STO)
- True
