ATV12PU40M3

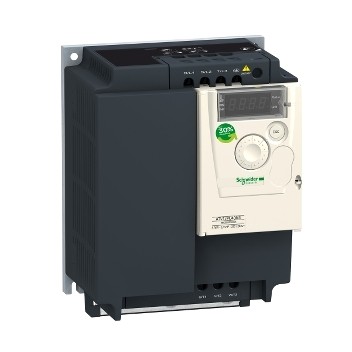

Schneider Electric ATV12PU40M3 variable speed drive ATV12 - 4kW - 5hp - 3ph - 200..240V - on base plate. Altivar Machine ATV12 is an offer of variable speed drives for commercial equipment and simple machines. The drive can feed three-phase asynchronous motors. It works at a rated power up to 4kW, and a rated voltage from 200V to 240V. It has advanced PID and catch on the fly functions, basic cabling, and easy motor control setting. Based on the needs, it can be delivered without heatsink, with embedded EMC filter, or as standard version. The Altivar 12 drive integrates as standard the Modbus communication protocol. It weighs 1.6kg. This Altivar Machine ATV12 is designed for simple applications, in industry, commercial machines and HVAC machines such as conveyors, pumps, extractors, access barriers and treadmills. It conforms to IEC, UL and other international standards. SoMove software compatibility enables saving and transfering of configurations to spare drive, thus reducing maintenance downtime. This reference is sold individually. ATV12 can be installed alone or side by side in a multi-drive configuration. The ATV12 range meets basic machine requirements united with simplicity.
Details
- Brand: Schneider Electric
- Part number: ATV12PU40M3
- Series: Altivar 12
- Category: Variable Frequency Drive
Related Schneider Electric parts
- Schneider Electric ATV12PU30M3 — Altivar 12 Variable Speed Drive 3kW 200-240V
- Schneider Electric ATV12HU15M3 — Altivar 12 variable speed drive 1.5kW 2hp 200-240V 3-phase with heat sink
- Schneider Electric ATV12HU22M2 — Altivar 12 Variable Speed Drive 2.2kW 3hp 200-240V 1-phase
- Schneider Electric ATV12HU22M3 — Altivar 12 Variable Speed Drive, 2.2kW, 3hp, 200-240V, 3-Phase
- Schneider Electric ATV12HU30M3 — Altivar 12 variable speed drive, 3kW, 200-240V, 3 phases
- Schneider Electric ATV12HU40M3 — Altivar 12 Variable Speed Drive 4kW 5hp 200-240V 3-Phase
- Schneider Electric ATV12H018M2 — variable speed drive, Altivar 12, 0.18kW, 0.25hp, 200 to 240V, 1 phase
- Schneider Electric ATV12H037M3 — Altivar 12 Variable Speed Drive ATV12 - 0.37kW - 0.55hp - 200-240V - 3ph
- ATV12H018M3 variable speed drive ATV12 - 0.18kW - 0.25hp - 200..240V - 3ph
- Schneider Electric ATV12H037F1 — variable speed drive ATV12 - 0.37kW - 0.55hp - 100..120V - 1ph - with heat sink
- Altivar 12 Variable Speed Drive ATV12H055M2 0.55kW 0.75hp
- Schneider Electric ATV12H037M2 — Altivar 12 Variable Speed Drive 0.37 kW
Request a quote for ATV12PU40M3
Specifications
- Depth
- 100.2 mm
- Phase
- 3 phase
- Width
- 140 mm
- Height
- 184 mm
- EMC filter
- Without
- Net Weight
- 1.6 kg
- Motor power
- 4 kW
- Built-in fan
- Without
- Analogue inputs
- 1
- Discrete inputs
- 4
- Analogue outputs
- 1
- Discrete outputs
- 2
- Supply frequency
- 50/60 Hz
- Line current (200V)
- 23.8 A
- Line current (240V)
- 19.9 A
- Prospective line Isc
- 5 kA
- Rated supply voltage
- 200-240 V
- Max Horsepower Rating
- 5 hp
- Communication protocol
- Modbus
- IP degree of protection
- IP20
- Manufacturer part number
- ATV12PU40M3
- Continuous output current
- 16.7 A
- Maximum transient current
- 25 A
- Speed drive output frequency
- 0.5-400 Hz
