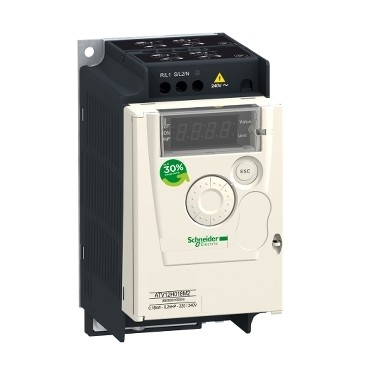

ATV12H018M2
Schneider Electric ATV12H018M2 variable speed drive, Altivar 12, 0.18kW, 0.25hp, 200 to 240V, 1 phase. Altivar Machine ATV12 is an offer of variable speed drives for commercial equipment and simple machines. It works at a rated power up to 0.18kW / 0.25hp and a rated voltage from 200V to 240V AC. It is designed with heatsink for normal environments and fan-cooled enclosure. It has advanced PID and catch on the fly functions, basic cabling, and easy motor control setting. Based on the needs, it can be delivered without heatsink, with embedded EMC filter, or as standard version. The Altivar 12 drive integrates as standard the Modbus communication protocol. This Altivar Machine ATV12 is designed for simple applications, in industry, commercial machines and HVAC machines such as conveyors, pumps, extractors, access barriers and treadmills. SoMove software compatibility enables saving and transfering of configurations to spare drive, reducing maintenance downtime. It features an optimized application of power and torque for ventilation and pumping applications, this allows up to 30% energy savings.
Details
- Brand: Schneider Electric
- Part number: ATV12H018M2
- Series: Altivar 12
- Category: Variable Frequency Drive
Related Schneider Electric parts
- Schneider Electric ATV12H037M3 — Altivar 12 Variable Speed Drive ATV12 - 0.37kW - 0.55hp - 200-240V - 3ph
- ATV12H018M3 variable speed drive ATV12 - 0.18kW - 0.25hp - 200..240V - 3ph
- Schneider Electric ATV12H037F1 — variable speed drive ATV12 - 0.37kW - 0.55hp - 100..120V - 1ph - with heat sink
- Altivar 12 Variable Speed Drive ATV12H055M2 0.55kW 0.75hp
- Schneider Electric ATV12H037M2 — Altivar 12 Variable Speed Drive 0.37 kW
- Schneider Electric ATV12H075F1 — variable speed drive ATV12 - 0.75kW - 1hp - 100..120V - 1ph - with heat sink
- Schneider Electric ATV12H075M2 — ATV12 Variable Speed Drive 0.75kW 1hp 200-240V 1ph
- Altivar 12 Variable Speed Drive ATV12H075M3, 0.75kW 1hp, 200-240V, 3-phase
- ATV12P037F1 variable speed drive ATV12 - 0.37kW - 0.55hp - 100..120V - 1ph - on base plate
- Schneider Electric ATV12P037M2 — Altivar 12 Variable Speed Drive 0.37 kW 1-phase
- Schneider Electric ATV12P075M2 — variable speed drive ATV12 - 0.75kW - 1hp - 200..240V - 1ph - on base plate
- Altivar 12 Variable Speed Drive ATV12P037M3 0.37kW 200-240V 3ph
Request a quote for ATV12H018M2
Specifications
- IP rating
- IP20
- EMC filter
- Integrated
- Apparent power
- 0.7 kVA
- Motor power hp
- 0.25 hp
- Motor power kW
- 0.18 kW
- Supply frequency
- 50/60 Hz
- Max input current
- 2.8 A
- Power dissipation
- 18.0 W
- Prospective line Isc
- 1 kA
- Rated supply voltage
- 200...240 V
- Communication protocol
- Modbus
- Nominal output current
- 1.4 A
- Output frequency range
- 0.5-400 Hz
- Manufacturer part number
- ATV12H018M2
